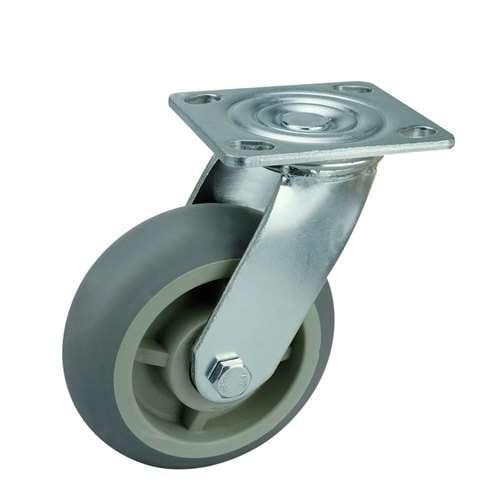

6" Inch Heavy Duty Caster Wheel 617 pounds Swivel Polypropylene core and Thermoplastic Rubber Top Plate

6" Inch Caster Wheel 617 pounds Swivel Polypropylene core and Thermoplastic Rubber Top Plate

Item Name= VXB005150ATPR

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polypropylene core and Thermoplastic Rubber

Tire= Polypropylene core and Thermoplastic Rubber

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Utilizing VXB005150ATPR makes it feasible to pull and push items instead of transport And rolling on wheel that has 150mm diameter/5.906" inch. The wheel has a width of 50mm=1.969" inch. Overall height of the wheel caster is 195mm = 7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Polypropylene core and Thermoplastic Rubber core on a Polypropylene core and Thermoplastic Rubber tire spinning freely with a Double ball beaing. Each caster will carry the load of 617 lb and is Swivel type. Temperature range is -40 to 180 F. Very important notice, you need to buy the VXB005150ATPR in order to get one :).
