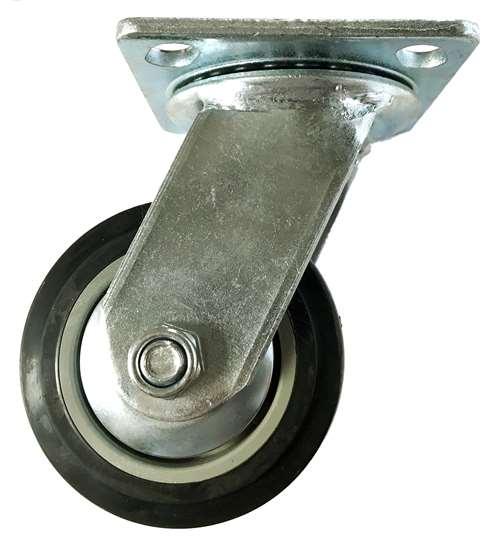

6" Inch Heavy Duty Caster Wheel 617 pounds Swivel Polyvinyl Chloride Top Plate

6" Inch Caster Wheel 617 pounds Swivel Polyvinyl Chloride Top Plate

Item Name= VXB005150BPVC1

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Mounting VXB005150BPVC1 is the Low cost solution of making a project to move around by pushing or pulling. Diameter size of the caster wheel has a metric standard 150mm which is equal to 5.906" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). Overall height of the wheel caster is 195mm = 7.677" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. This caster wheel core material is Polyvinyl Chloride and has a Polyvinyl Chloride tire spinning over Double ball beaing. Each caster will carry the load of 617 lb and is Swivel type. The caster temperature range = -40 to 180 F. Buy our VXB005150BPVC1, we wish all the best.
