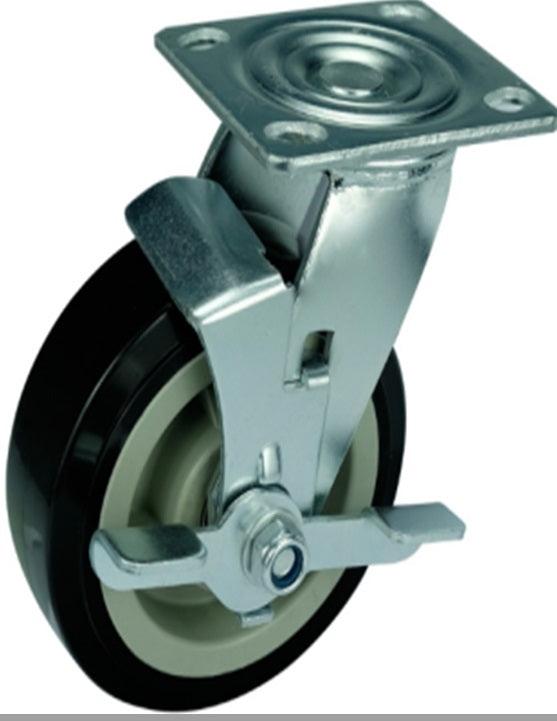

6" Inch Heavy Duty Caster Wheel 617 pounds Swivel Polyvinyl Chloride Top Plate

6" Inch Caster Wheel 617 pounds Swivel Polyvinyl Chloride Top Plate

Item Name= VXB005150BPVC1B1

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Low cost solution to the heavy weight objects movement, Wheel casters like our VXB005150BPVC1B1 are used to roll your machine or equipment back and forth. And rolling on wheel that has 150mm diameter/5.906" inch. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 195mm/7.677" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Swivel type. Environment temperature range is -40 to 180 F. Buy the VXB005150BPVC1B1 now, just add the quantity to basket and click on Checkout.
