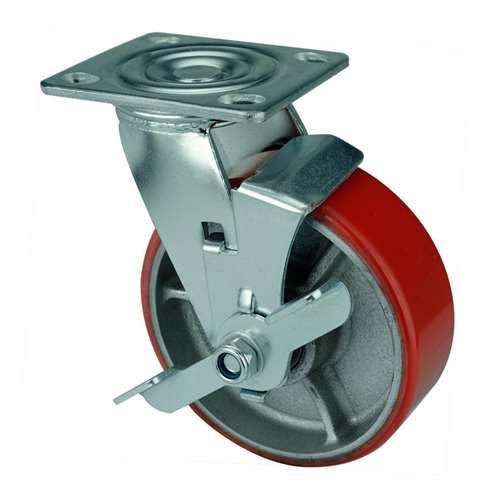

6" Inch Heavy Duty Caster Wheel 992 pounds Swivel and Center Brake Iron core and Polyurethane Top Plate

6" Inch Caster Wheel 992 pounds Swivel and Center Brake Iron core and Polyurethane Top Plate

Item Name= VXB005150CPUB1

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 191mm

Overall Height Inch= 7.520"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Iron core and Polyurethane

Tire= Iron core and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 992 lb

Mounting= Swivel and Center Brake

Temperature Range= -40 to 180 F

Low cost solution to the heavy weight objects movement, Wheel casters like our VXB005150CPUB1 are used to roll your machine or equipment back and forth. Diameter size of the caster wheel has a metric standard 150mm which is equal to 5.906" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 191mm/7.520" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The weehl core material is Iron core and Polyurethane and has a Iron core and Polyurethane tire with a low friction Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 992 lb with a Swivel and Center Brake type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB005150CPUB1 in order to get one :).
