6010ZZE Nachi Bearing 50x80x16 Shielded C3 Japan

6010ZZE Nachi Bearing 50x80x16 Shielded C3 Japan

$56.99 USD
$56.99 USD
Sale Sold out
6010ZZE Shielded Nachi Bearings
One Bearing
Made in Japan

6010ZZE Nachi Bearing, the 6010ZZE inner diameter is 50mm, the 6010ZZE outer diameter is 80mm, 6010ZZE width is 16mm.

  • Item: 6010ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 50mm x 80mm x 16mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 80mm
  • Width/Height/thickness: 16mm
  • Size: 50 x 80 x 16 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 21,800 N
  • Static load rating Cor: 16,600 N
  • Limiting Speed:
    • Grease Lubrication: 8,500 RPM
  • Made in Japan

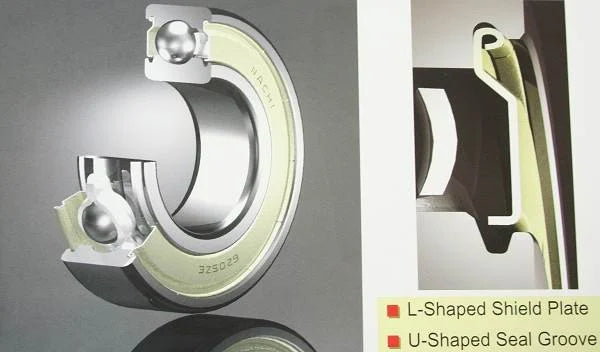

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
