Nachi

6011ZZE Nachi Bearing Shielded C3 Japan 55x90x18

6011ZZE Nachi Bearing Shielded C3 Japan 55x90x18

$66.99 USD
$66.99 USD
Sale Sold out

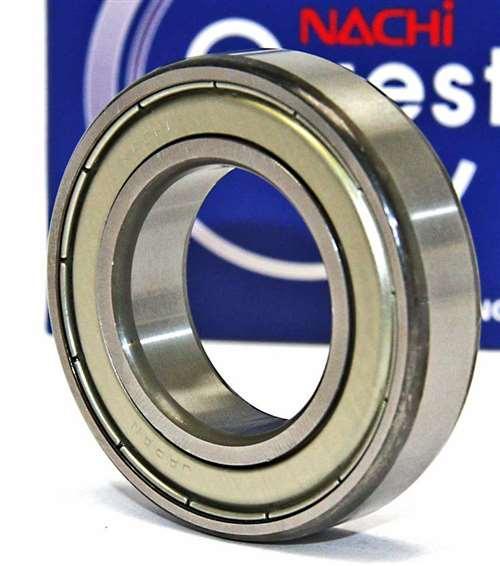

6011ZZE Nachi Bearing
One Bearing
Made in Japan

6011ZZE Nachi Bearing, the 6011ZZE inner diameter is 55mm, the 6011ZZE outer diameter is 90mm, 6011ZZE width is 18mm.

  • Item: 6011ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 55mm x 90mm x 18mm/Metric
  • ID (inner diameter)/Bore: 55mm
  • OD (outer diameter): 90mm
  • Width/Height/thickness: 18mm
  • Size: 55 x 90 x 18 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 28,300 N
  • Static load rating Cor: 21,300 N
  • Limiting Speed:
    • Grease Lubrication: 7,700 RPM
  • Made in Japan
  • Equal: 6011 ZZ / 6011 2Z

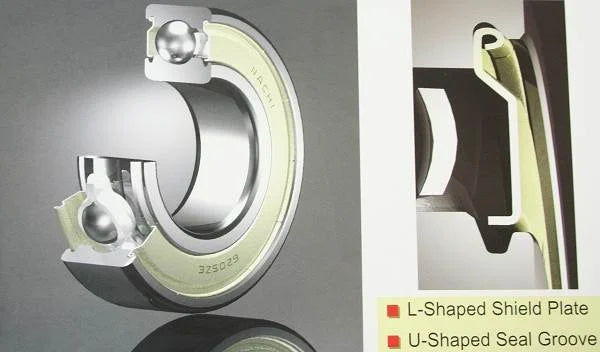

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
