6015ZZE Nachi Bearing Shielded C3 Japan 75x115x20

6015ZZE Nachi Bearing Shielded C3 Japan 75x115x20

$126.99 USD
$126.99 USD
Sale Sold out

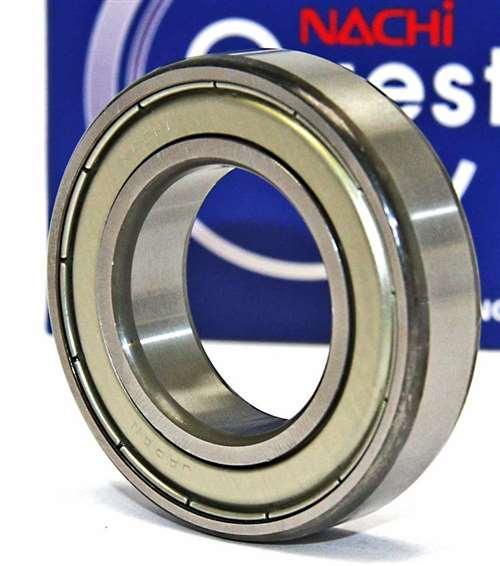

6015ZZE Nachi Bearing
One Bearing
Made in Japan

6015ZZE Nachi Bearing, the 6015ZZE inner diameter is 75mm, the 6015ZZE outer diameter is 115mm, 6015ZZE width is 20mm.

  • Item: 6015ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 75mm x 115mm x 20mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter): 115mm
  • Width/Height/thickness: 20mm
  • Size: 75 x 115 x 20 mm
  • Equal: 6015 ZZ / 6015 2Z
  • Quantity: One Bearing
  • Dynamic load rating Cr: 39,500 N
  • Static load rating Cor: 33,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,700 RPM
  • Made in Japan

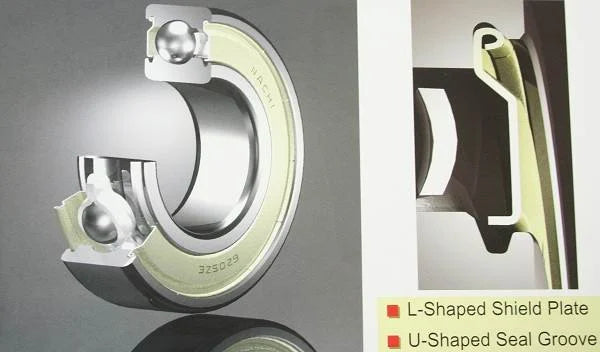

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
