Nachi

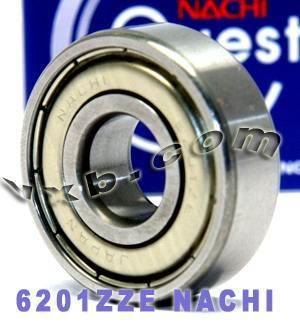

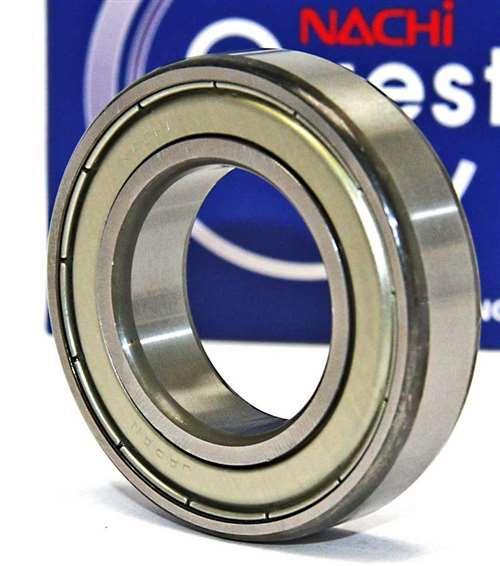

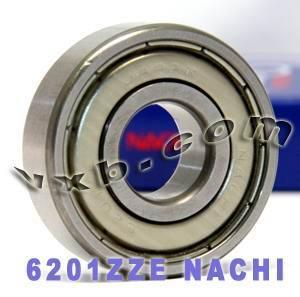

6201ZZE Nachi Bearing Shielded C3 12x32x10

6201ZZE Nachi Bearing Shielded C3 12x32x10

$19.99 USD
$19.99 USD
Sale Sold out
6201ZZE Nachi Bearing
One Bearing

6201ZZE Nachi Bearing, the 6201ZZE inner diameter is 12mm, the 6201ZZE outer diameter is 32mm, 6201ZZE width is 10mm.

  • Item: 6201ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 12mm x 32mm x 10mm/Metric
  • ID (inner diameter)/Bore: 12mm
  • OD (outer diameter): 32mm
  • Width/Height/thickness: 10mm
  • Size: 12 x 32 x 10 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 6,800 N
  • Static load rating Cor: 3,050 N
  • Limiting Speed:
    • Grease Lubrication: 22,000 RPM
  • Equivalents: 201KDD, 201SS, 6201.2ZR, 201SFF, 6201-2Z and 6201ZZE
  • Made in Taiwan

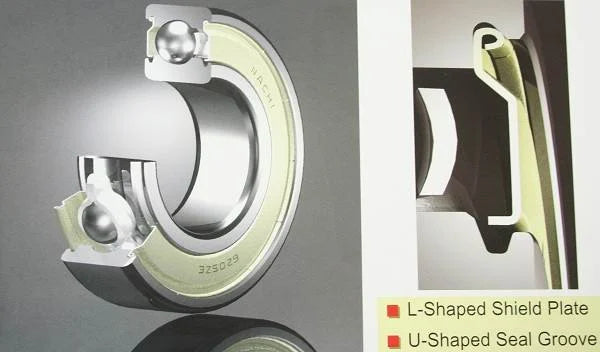

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
