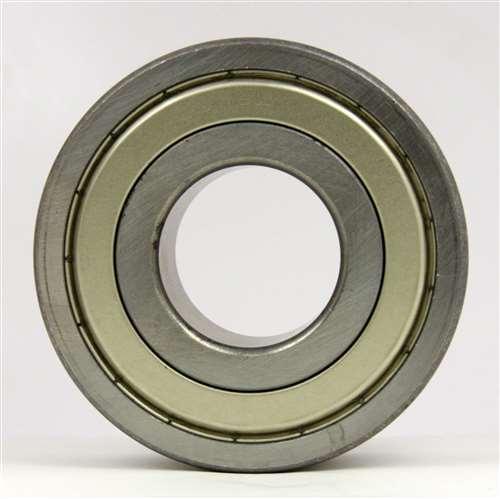

6203Z 17x40x12 Single Shielded Bearing Pack of 10

6203Z 17x40x12 Single Shielded Bearing Pack of 10

$27.99 USD
$27.99 USD
Sale Sold out
6203Z One Shield Ball Bearings
17mm x 40mm x 12mm


6203Z One Shield Ball Bearings, the inner diameter is 17mm, outer diameter is 40mm and the width is 12mm, Bearings are made of Chrome Steel, each bearing has Shield on one side to protect the bearing from dust or any possible contamination.

  • Item: 6203Z Ball Bearings
  • Type: Deep Groove Ball Bearings
  • Dimensions: 17mm x 40mm x 12mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter): 40mm
  • Width/Height/thickness: 12mm
  • Size: 17 x 40 x 12 mm
  • Closures: Metal shield (only one side)
  • Lubrication: Self Lubricated (Grease)
  • Quantity: Pack of 10 Bearings
  • Dynamic load rating Cr: 9,550 N
  • Static load rating Cor: 4,800 N
  • Limiting Speed:
    • Grease Lubrication: 18,000 RPM
    • Oil Lubrication: 21,000 RPM
