Nachi

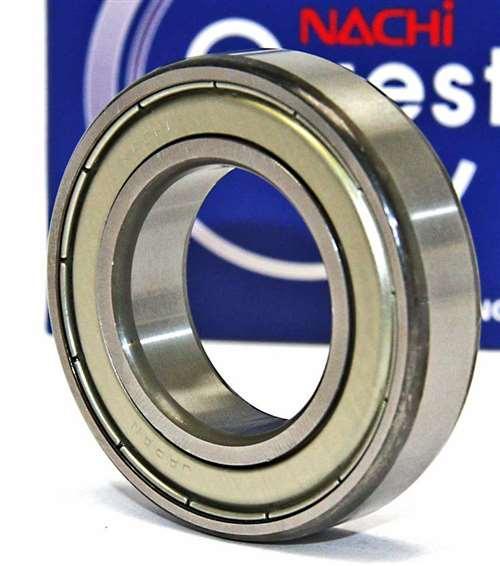

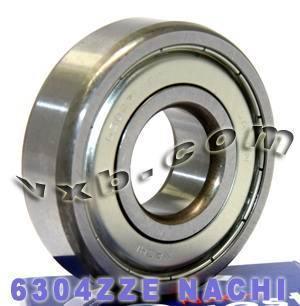

6304ZZE Nachi Bearing Shielded C3 Japan 20x52x15

6304ZZE Nachi Bearing Shielded C3 Japan 20x52x15

$27.99 USD
$27.99 USD
Sale Sold out
6304ZZE Nachi Bearing
20mm x 52mm x 15mm
Made in Japan

6304ZZE Nachi Bearing, inner diameter is 20mm, outer diameter is 52mm and width is 15mm.

  • Item: 6304ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 20mm x 52mm x 15mm/Metric
  • ID (inner diameter)/Bore: 20mm
  • OD (outer diameter): 52mm
  • Width/Height/thickness: 15mm
  • Size: 20 x 52 x 15 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 15,900 N
  • Static load rating Cor: 7,900 N
  • Limiting Speed:
    • Grease Lubrication: 14,000 RPM
  • Made in Japan
  • Equal: 6304 ZZ / 6304 2Z

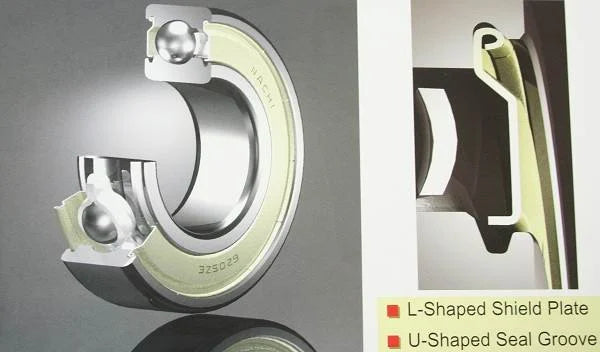

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
