1 4

Nachi

6307N Nachi Nachi Bearing Open C3 Japan 35x80x21

6307N Nachi Nachi Bearing Open C3 Japan 35x80x21

$52.99 USD
$52.99 USD
Sale Sold out
6307N Nachi Deep Groove Ball Bearing
35mmx80mmx21mm
Made in Japan

6307N Nachi One Contact Seal Bearing, 6307N Nachi is non-grease, Made in Japan, the 6307N inner diameter is 35mm, the 6307N C3 outer diameter is 80mm, 6307N C3 width is 21mm.

  • Item: 6307N Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Radial Clearance: C3
  • Dimensions: 35mm x 80mm x 21mm/Metric
  • ID (inner diameter)/Bore: 35mm
  • OD (outer diameter): 80mm
  • Width/Height/thickness: 21mm
  • Size: 35mm x 80mm x 21mm mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 33,500 N
  • Static load rating Cor: 19,100 N
  • Limiting Speed:
    • Grease Lubrication: 8,800 RPM
  • Made in Japan

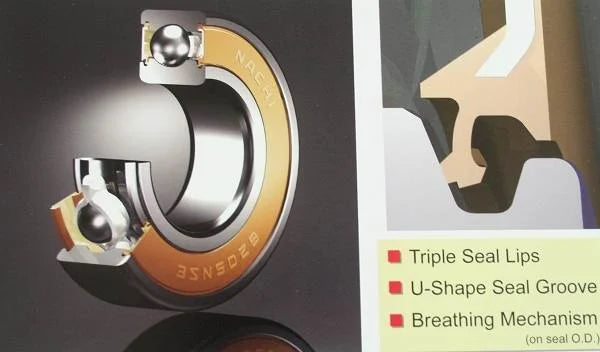

Advanced Seal Design Provides
Excellent Protection and Smooth Operation
The combination of a unique lip design and seal groove provides a labrinth and steady seal contact.Breathing mechanism avoids torque increases caused byinternal pressure variation due to changes in operating temperatures.NSE seals allow NACHI bearings to have constant smooth operation and long service life.

  • Superior in Sealing Out Dust, Dirt, and Contamination
  • Superb Grease Retention
  • Light Torque
The Best Components Yield the Greatest Bearing Performance
Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
