Nachi

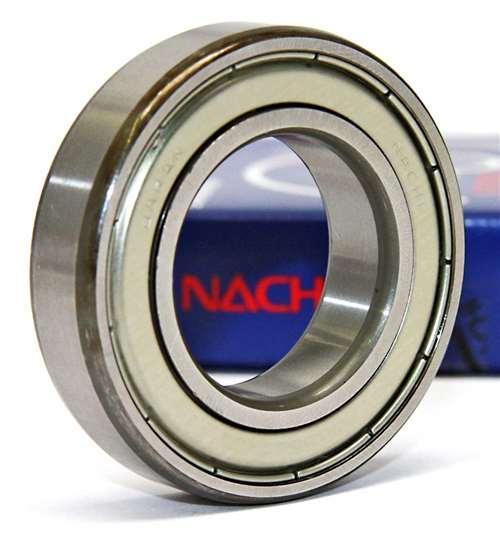

6307ZZE Nachi Bearing 35x80x21 Shielded C3 Japan

6307ZZE Nachi Bearing 35x80x21 Shielded C3 Japan

$47.99 USD
$47.99 USD
Sale Sold out
6307ZZE Nachi Bearing
35mm x 80mm x 21mm
Made in Japan

6307ZZE Nachi Bearing, the 6307ZZE inner diameter is 35mm, the 6307ZZE outer diameter is 80mm, 6307ZZE width is 21mm.

  • Item: 6307ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 35mm x 80mm x 21mm/Metric
  • ID (inner diameter)/Bore: 35mm
  • OD (outer diameter): 80mm
  • Width/Height/thickness: 21mm
  • Size: 35 x 80 x 21 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 33,500 N
  • Static load rating Cor: 19,200 N
  • Limiting Speed:
    • Grease Lubrication: 8,800 RPM
  • Equal: 6307 ZZ / 6307 2Z
  • Made in Japan

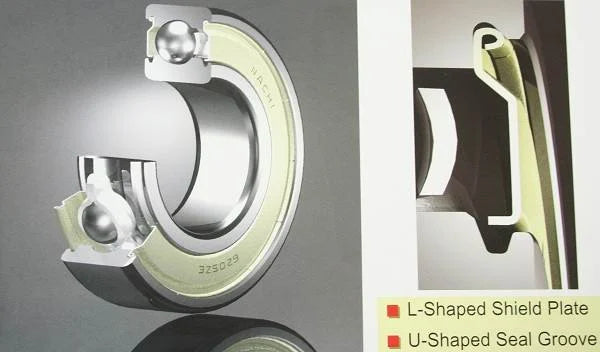

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
