6312ZZE Nachi Bearing Shielded C3 Japan 60x130x31

6312ZZE Nachi Bearing Shielded C3 Japan 60x130x31

$131.99 USD
$131.99 USD
Sale Sold out

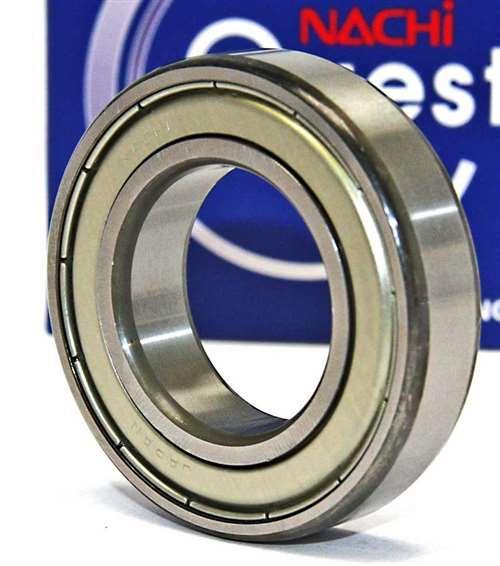

6312ZZE Nachi Bearing
60mm x 130mm x 31mm
Made in Japan

6312ZZE Nachi Bearing, the 6312ZZE inner diameter is 60mm, the 6312ZZE outer diameter is 130mm, 6312ZZE width is 31mm.

  • Item: 6312ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 60mm x 130mm x 31mm/Metric
  • ID (inner diameter)/Bore: 60mm
  • OD (outer diameter): 130mm
  • Width/Height/thickness: 31mm
  • Size: 60 x 130 x 31 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 82,000 N
  • Static load rating Cor: 52,000 N
  • Limiting Speed:
    • Grease Lubrication: 5,400 RPM
  • Equal: 6312 ZZ / 6312 2Z
  • Made in Japan

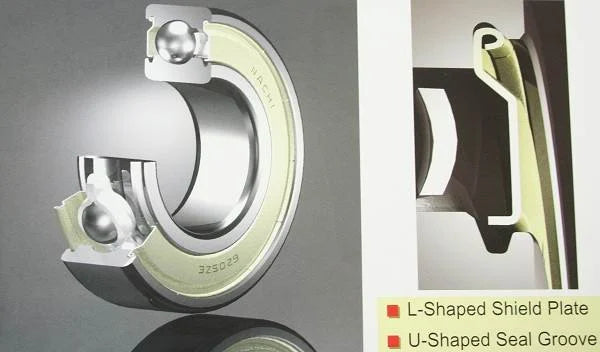

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
