Nachi

6314ZENRBNLM Nachi Bearing Shield C3 Snap Ring 70x150x35 Bearings

6314ZENRBNLM Nachi Bearing Shield C3 Snap Ring 70x150x35 Bearings

$301.99 USD
$301.99 USD
Sale Sold out

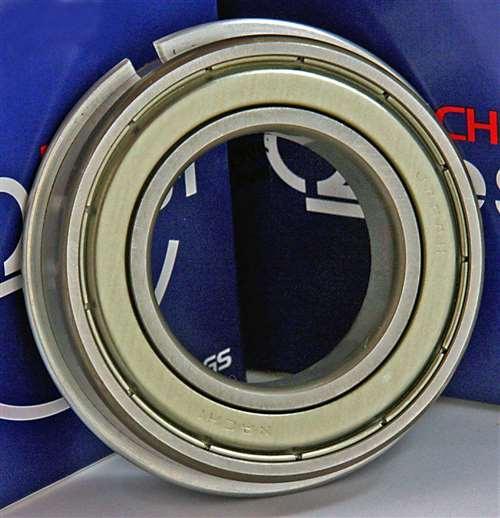

6314ZENRBNLM Nachi Bearing With Snap Ring and Shield
70mm x 150mm x 35mm
Made in Japan

6314ZENRBNLM Nachi Bearing With Snap Ring and Shield, the 6314ZENRBNLM inner diameter is 70mm, the 6314ZENRBNLM outer diameter is 150mm, 6314ZENRBNLM width is 35mm.

  • Item: 6314ZENRBNLM Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
  • Radial Clearance: C3
  • Dimensions: 70mm x 150mm x 35mm/Metric
  • ID (inner diameter)/Bore: 70mm
  • OD (outer diameter): 150mm
  • Width/Height/thickness: 35mm
  • Size: 70 x 150 x 35 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 104,000 N
  • Static load rating Cor: 68,000 N
  • Limiting Speed:
    • Grease Lubrication: 4,600 RPM
    • Oil Lubrication: 5,400 RPM
  • Made in Japan

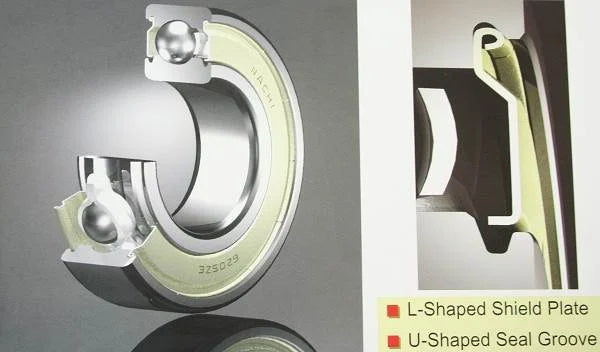

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
