Nachi

6316ZZE Nachi Bearing Shielded C3 Japan 80x170x39

6316ZZE Nachi Bearing Shielded C3 Japan 80x170x39

$263.99 USD
$263.99 USD
Sale Sold out

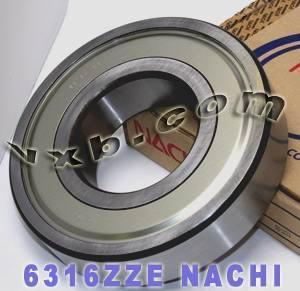

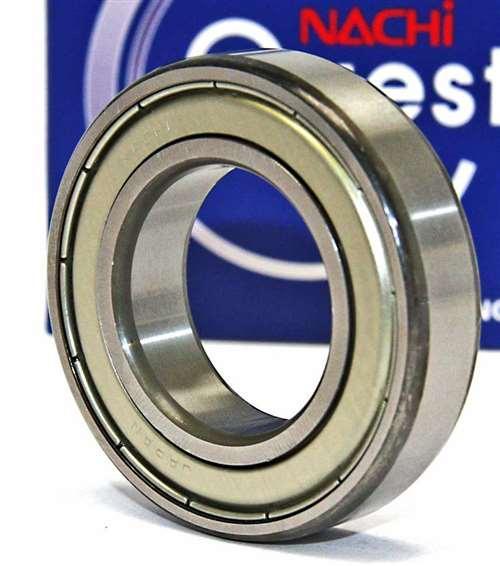

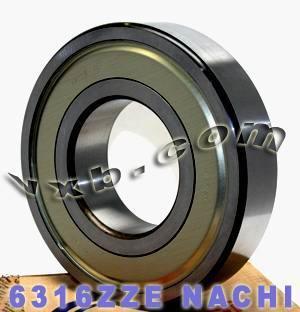

6316ZZE Nachi Bearing
80mm x 170mm x 39mm
Made in Japan

6316ZZE Nachi Bearing, the 6316ZZE inner diameter is 80mm, the 6316ZZE outer diameter is 170mm, 6316ZZE width is 39mm.

  • Item: 6316ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Equal: 6316 ZZ / 6316 2Z
  • Dimensions: 80mm x 170mm x 39mm/Metric
  • ID (inner diameter)/Bore: 80mm
  • OD (outer diameter): 170mm
  • Width/Height/thickness: 39mm
  • Size: 80 x 170 x 39 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 123,000 N
  • Static load rating Cor: 86,500 N
  • Limiting Speed:
    • Grease Lubrication: 4,000 RPM
  • Radial Clearance: C3
  • Made in Japan

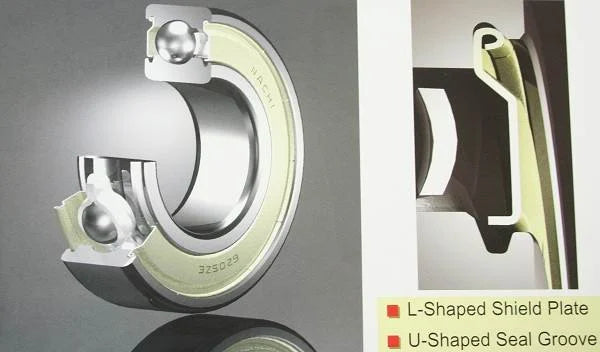

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
