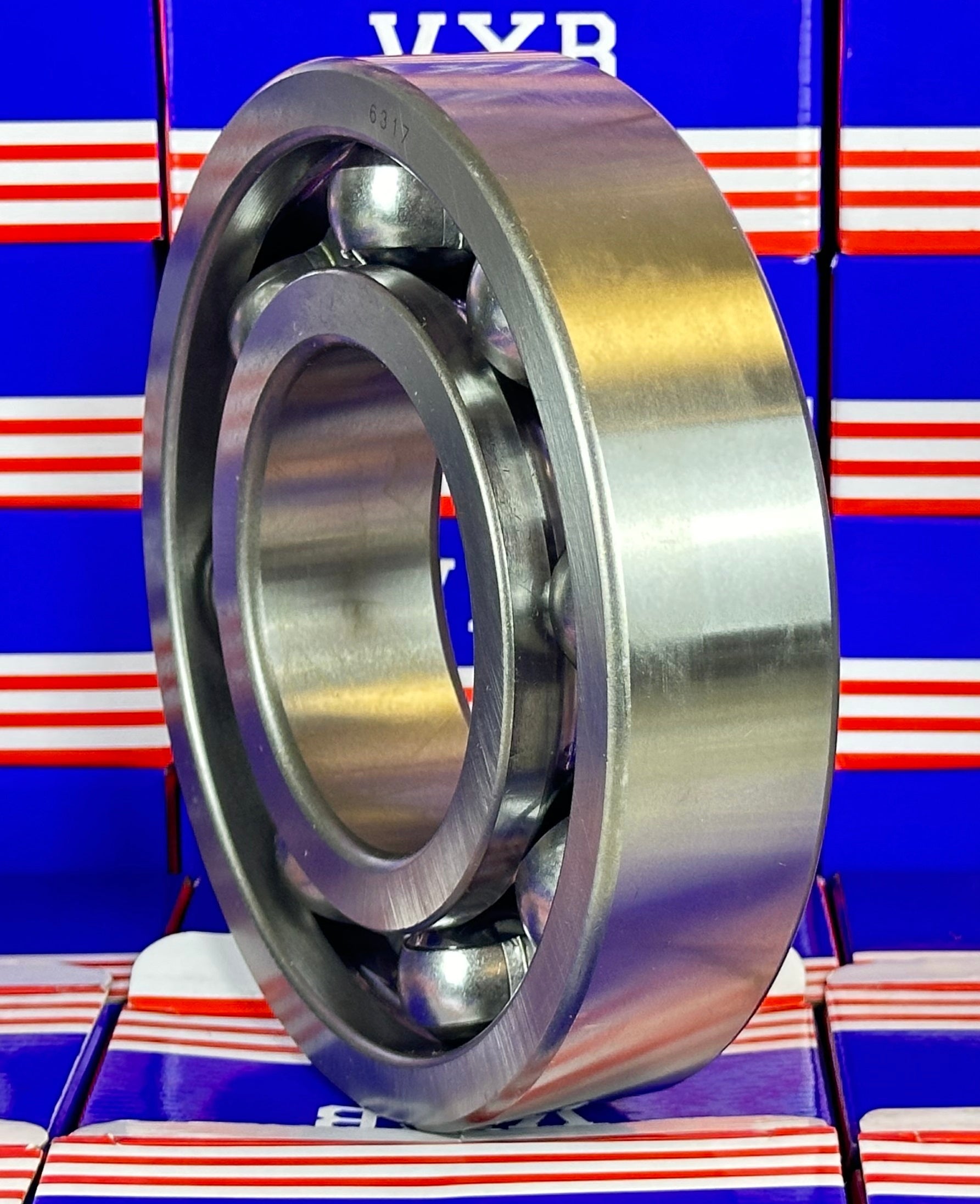

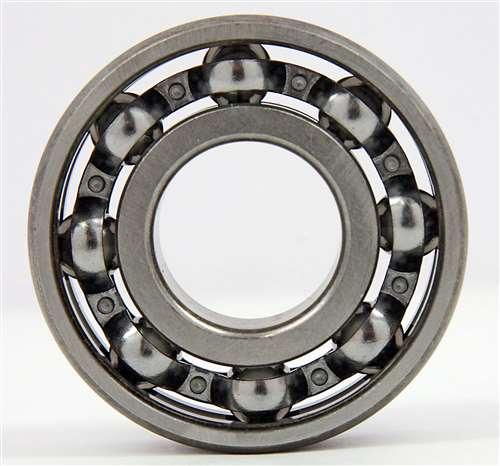

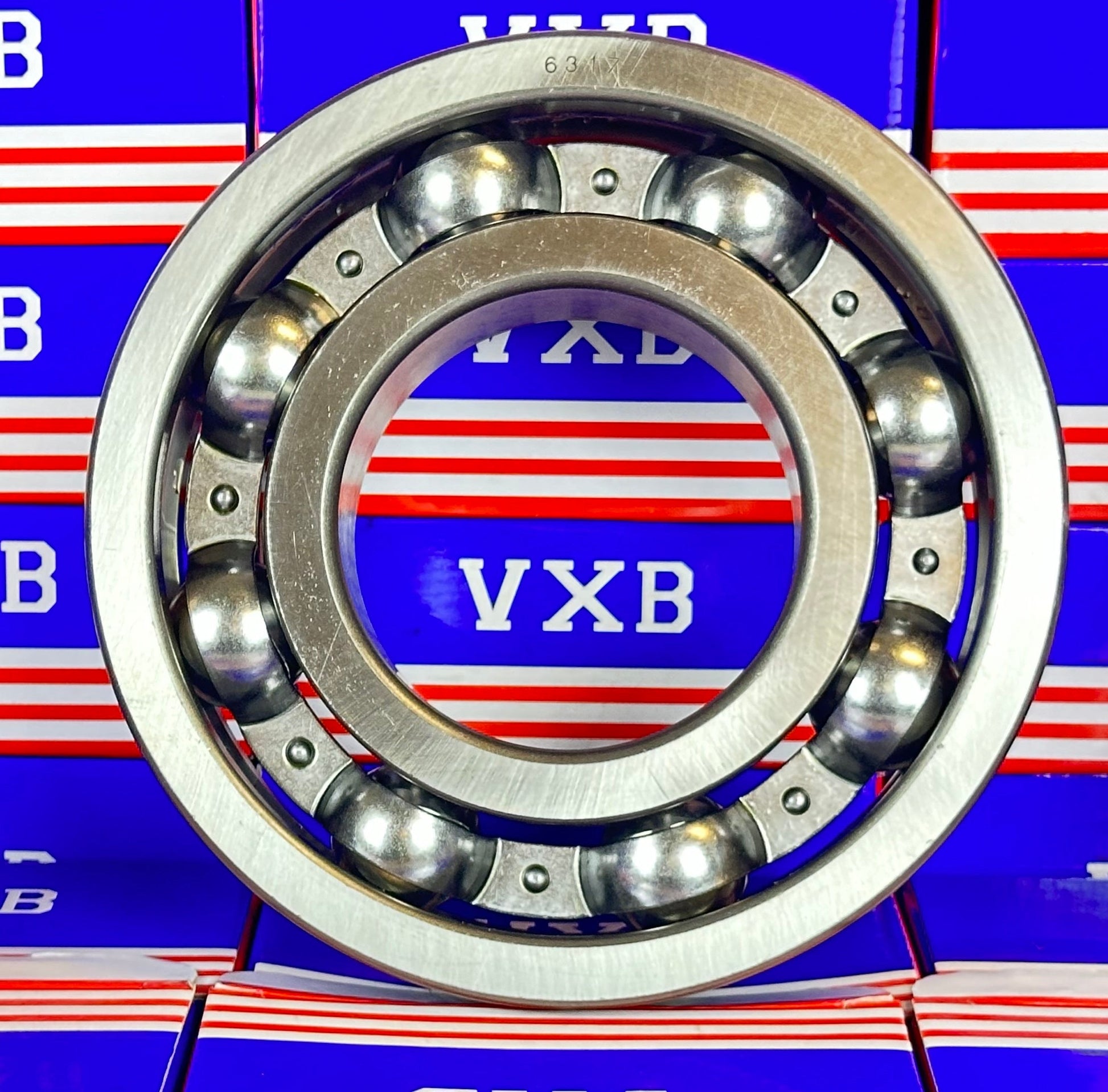

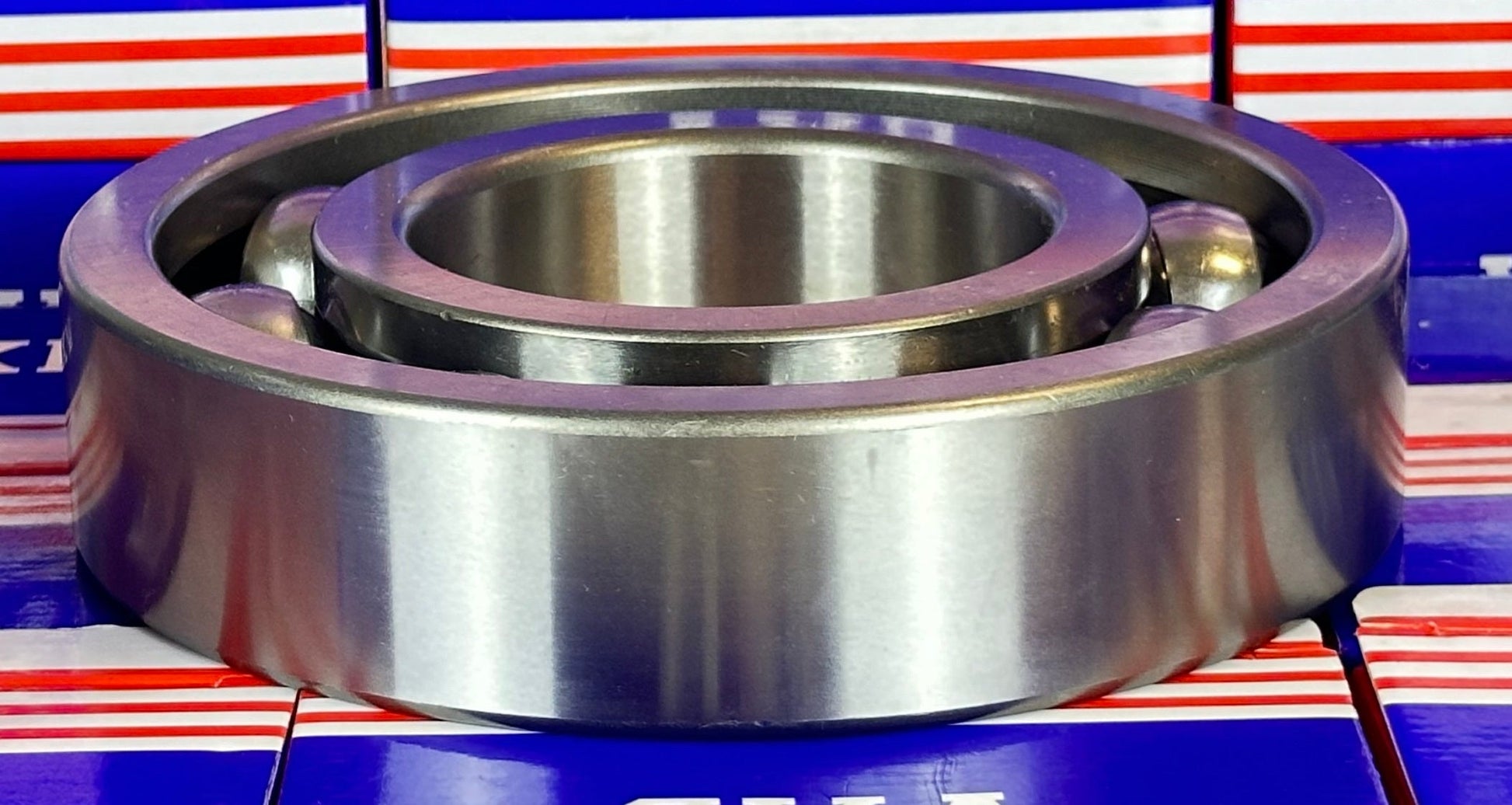

6317 Open Ball Bearing, material is Chrome Steel,6317 has ABEC 1 quality, 6317 bearing is Oil preserved, inner diameter is 85mm, outer diameter is 180mm and width is 41mm.
- Item: 6317 Ball Bearing
- Type: Deep groove Radial Ball Bearing
- Quality: ABEC 1
- Material: Chrome Steel
- Cage: Chrome Steel
- Closures: Open
- Lubrication: Oil
- Size: 85mm x 180mm x 41mm
- Dimensions: 85mm x 180mm x 41mm/Metric
- ID (inner diameter)/Bore= 85mm
- OD (outer diameter)= 180mm
- Width/Height/thickness= 41mm
- Quantity: One Bearing
- Dynamic load rating Cr: 133,000 N
- Static load rating Cor: 96,500 N
- Limiting Speed:
- Grease Lubrication: 3,800 RPM
- Oil Lubrication: 4,500 RPM
|
