Nachi

6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearings

6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearings

$597.99 USD
$597.99 USD
Sale Sold out

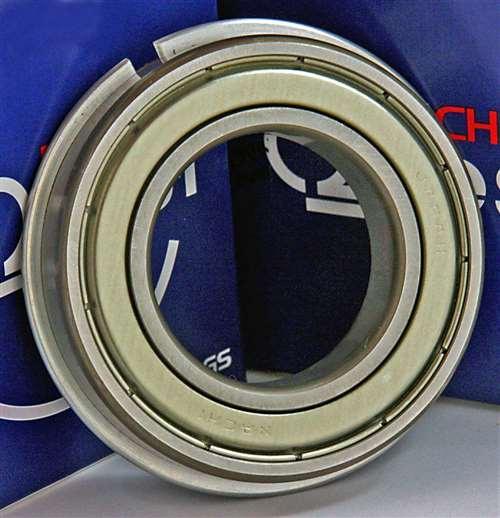

6318ZNRC3/P0/00Q Nachi Bearing With Snap Ring and Shield
Made in Japan

6318ZNRC3/P0/00Q Nachi Bearing With Snap Ring and Shield, the 6318ZNRC3/P0/00Q inner diameter is 90mm, the 6318ZNRC3/P0/00Q outer diameter is 190mm, 6318ZNRC3/P0/00Q width is 43mm.

  • Item: 6318ZNRC3/P0/00Q Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
  • Radial Clearance: C3
  • Dimensions: 90mm x 190mm x 43mm/Metric
  • ID (inner diameter)/Bore: 55mm
  • OD (outer diameter): 120mm
  • Width/Height/thickness: 43mm
  • Size: 90 x 190 x 43 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 143,000 N
  • Static load rating Cor: 107,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,600 RPM
    • Oil Lubrication: 4,300 RPM
  • Made in Japan

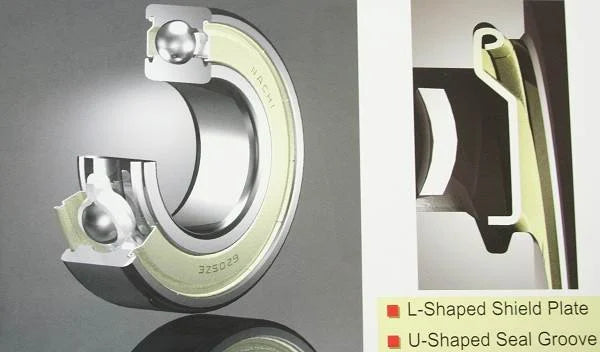

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
