1 4

Nachi

6318ZZE Nachi Bearing Shielded C3 Japan 90x190x43

6318ZZE Nachi Bearing Shielded C3 Japan 90x190x43

$361.99 USD
$361.99 USD
Sale Sold out

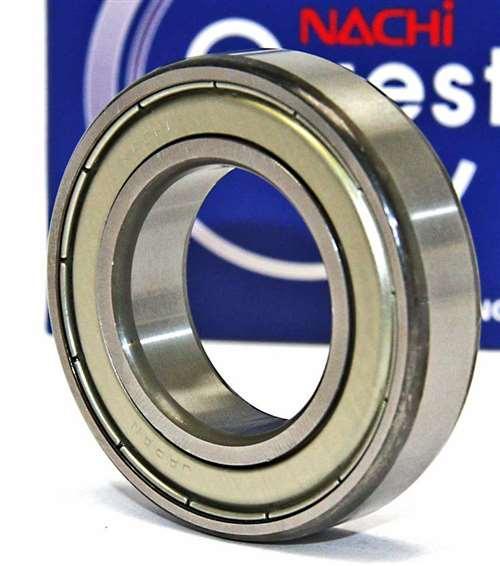

6318ZZE Nachi Bearing
90mm x 190mm x 43mm
Made in Japan

6318ZZE Nachi Bearing, the 6318ZZE inner diameter is 90mm, the 6318ZZE outer diameter is 190mm, 6318ZZE width is 43mm.

  • Item: 6318ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 90mm x 190mm x 43mm/Metric
  • ID (inner diameter)/Bore: 90mm
  • OD (outer diameter): 190mm
  • Width/Height/thickness: 43mm
  • Size: 90 x 190 x 43 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 143,000 N
  • Static load rating Cor: 107,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,600 RPM
  • Equal: 6318 ZZ / 6318 2Z
  • Made in Japan

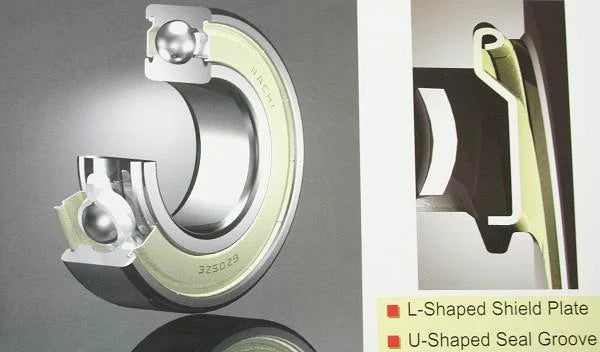

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
