Nachi

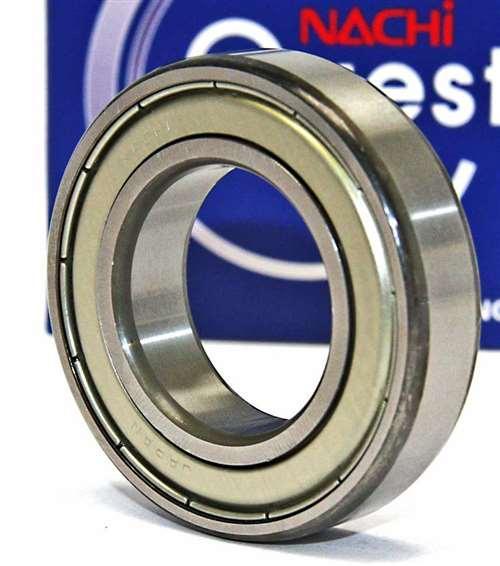

6320ZZE Nachi Bearing Shielded C3 Japan 100x215x47 Large

6320ZZE Nachi Bearing Shielded C3 Japan 100x215x47 Large

$555.99 USD
$555.99 USD
Sale Sold out
6320ZZE Nachi Bearing
100mm x 215mm x 47mm
Made in Japan

6320ZZE Nachi Bearing, the 6320ZZE inner diameter is 100mm, the 6320ZZE outer diameter is 215mm, 6320ZZE width is 47mm.

  • Item: 6320ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 100mm x 215mm x 47mm/Metric
  • ID (inner diameter)/Bore: 100mm
  • OD (outer diameter): 215mm
  • Width/Height/thickness: 47mm
  • Size: 100 x 215 x 47 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 153,000 N
  • Static load rating Cor: 118,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,300 RPM
  • Equal: 6320 ZZ / 6320 2Z
  • Made in Japan

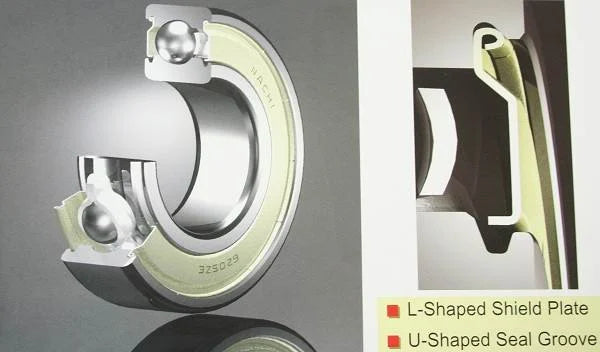

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
