6321ZZE Nachi Bearing Shielded C3 Japan 105x225x49 Large

6321ZZE Nachi Bearing Shielded C3 Japan 105x225x49 Large

$730.99 USD
$730.99 USD
Sale Sold out

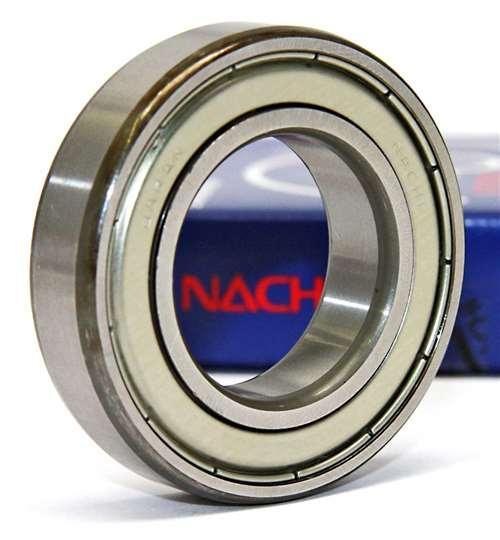

6321ZZE Nachi Bearing
105mm x 225mm x 49mm
Made in Japan

6321ZZE Nachi Bearing, the 6321ZZE inner diameter is 105mm, the 6321ZZE outer diameter is 225mm, 6321ZZE width is 49mm.

  • Item: 6321ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 105mm x 225mm x 49mm/Metric
  • ID (inner diameter)/Bore: 105mm
  • OD (outer diameter): 225mm
  • Width/Height/thickness: 49mm
  • Size: 105 x 225 x 49 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 184,000 N
  • Static load rating Cor: 153,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,000 RPM
  • Equivalents: 6321 ZZ / 6321 2Z
  • Made in Japan

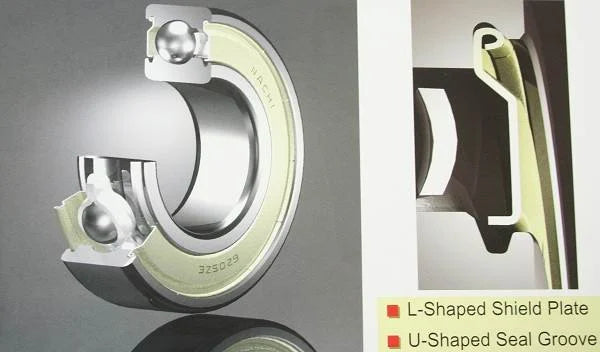

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
