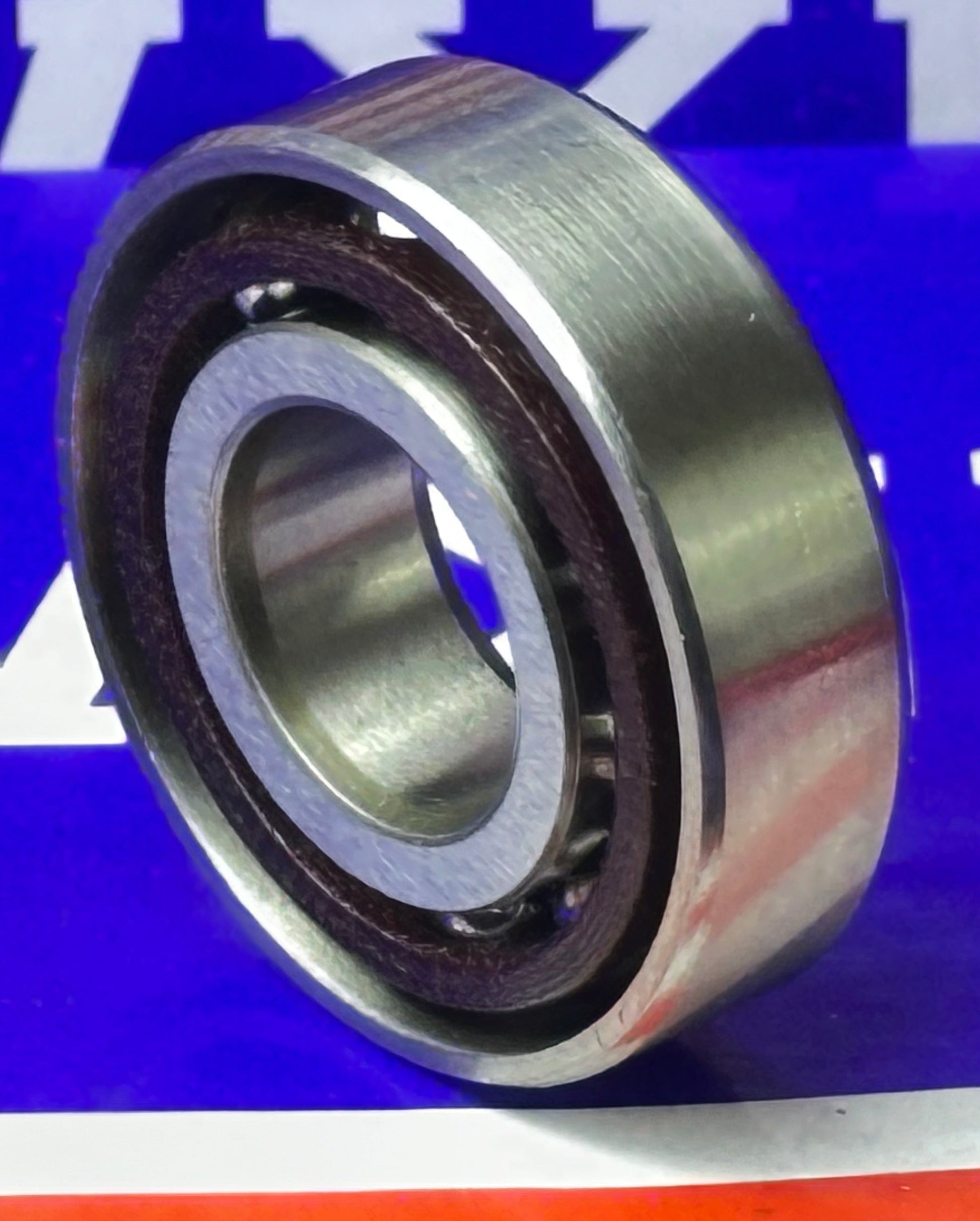

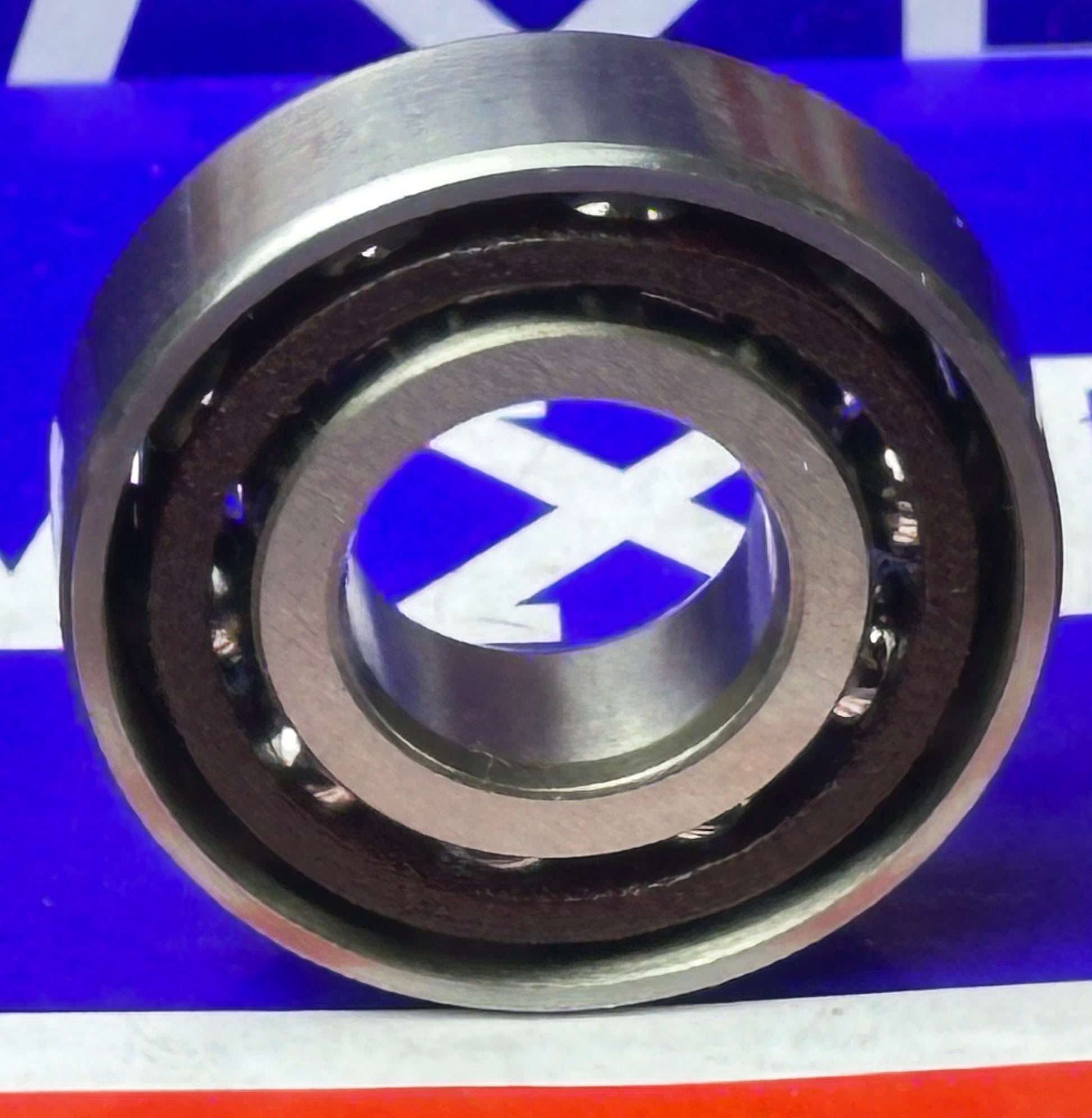

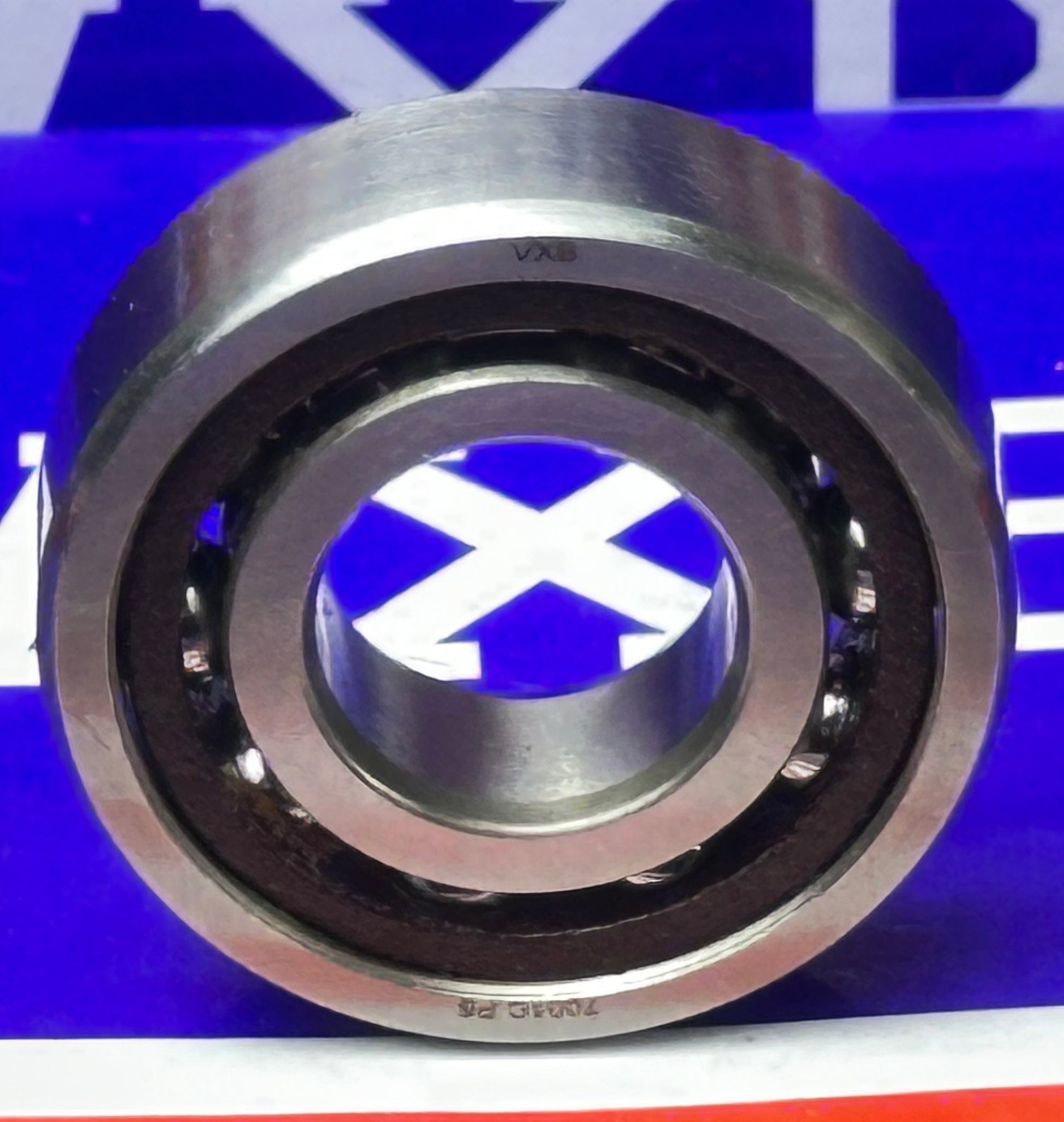

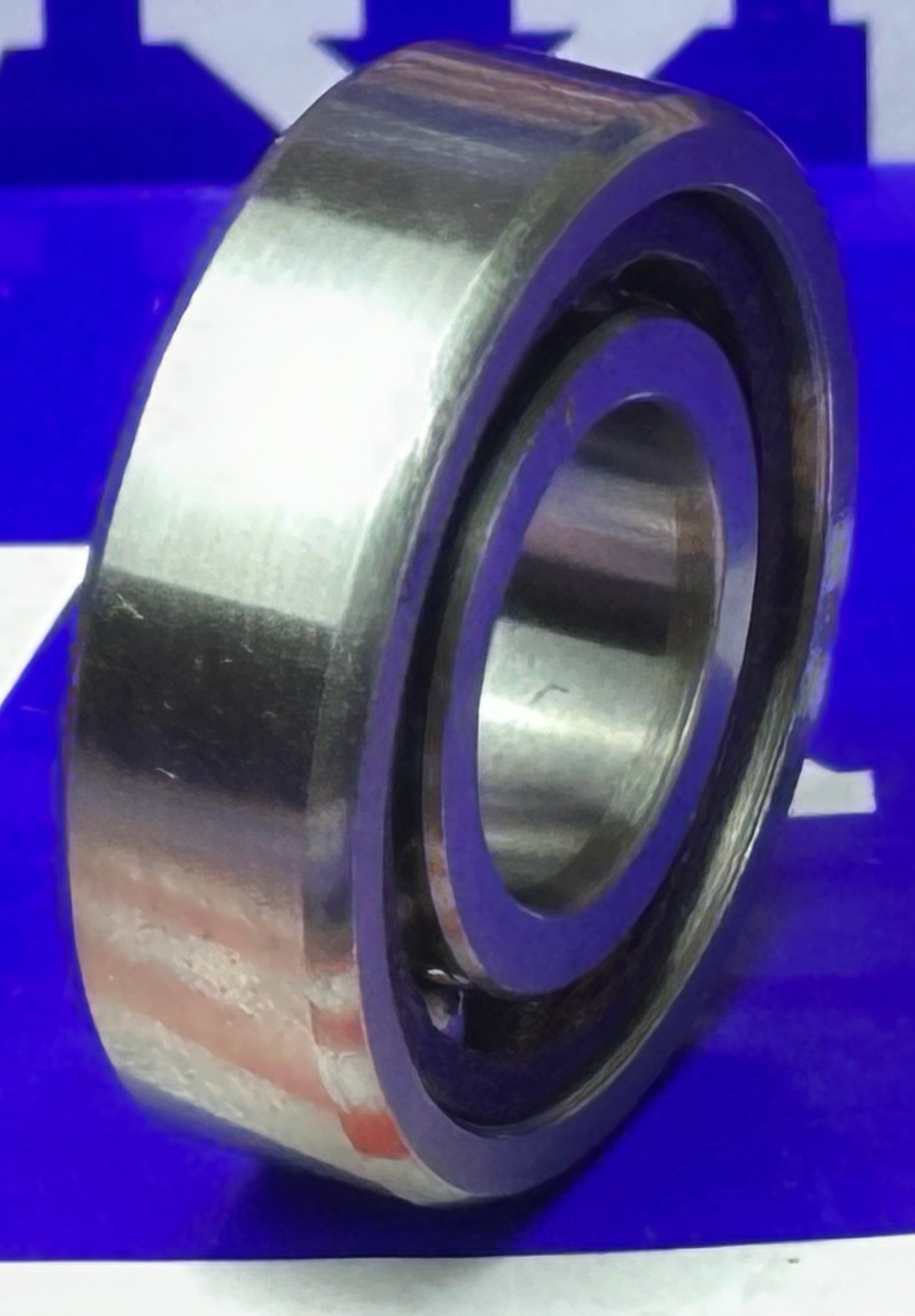

7001C P5 High Precision Angular Ball Bearing, 15 degrees Contact Angle ABEC-5 Quality, 7001C inner diameter is 12mm, outer diameter is 28mm, width is 8mm.
- Item: 7001C P5 Angular Contact Ball Bearing
- Type: High precision Angular Ball Bearing
- Dimensions: 12mm x 28mm x 8mm/Metric
- Bearing Inner Diameter: 12mm
- Bearing Outer Diameter: 28mm
- Bearing Width: 8mm
- Size: 12 x 28 x 8 mm
- Cage: PA66+ 30% NTE264B cage
- Quality: ABEC-5 (P5)
- Basic Dynamic Load Cr (KN): 5.80
- Quantity: One Bearing

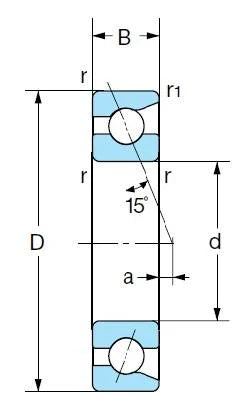

| d |
D |
B |
r |
r1 |
| 12mm |
28mm |
8mm |
0.3 |
0.15 |
|
