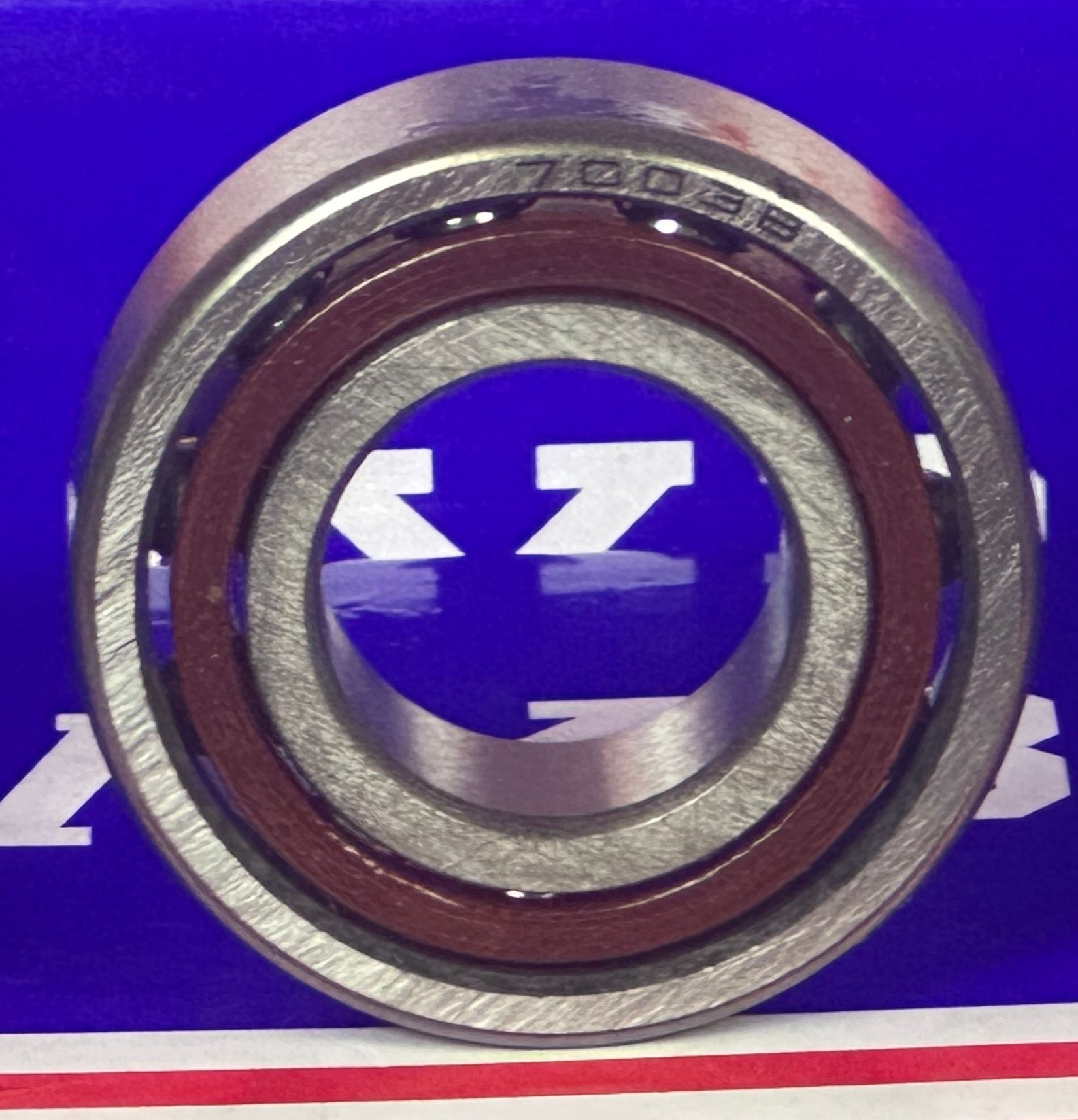

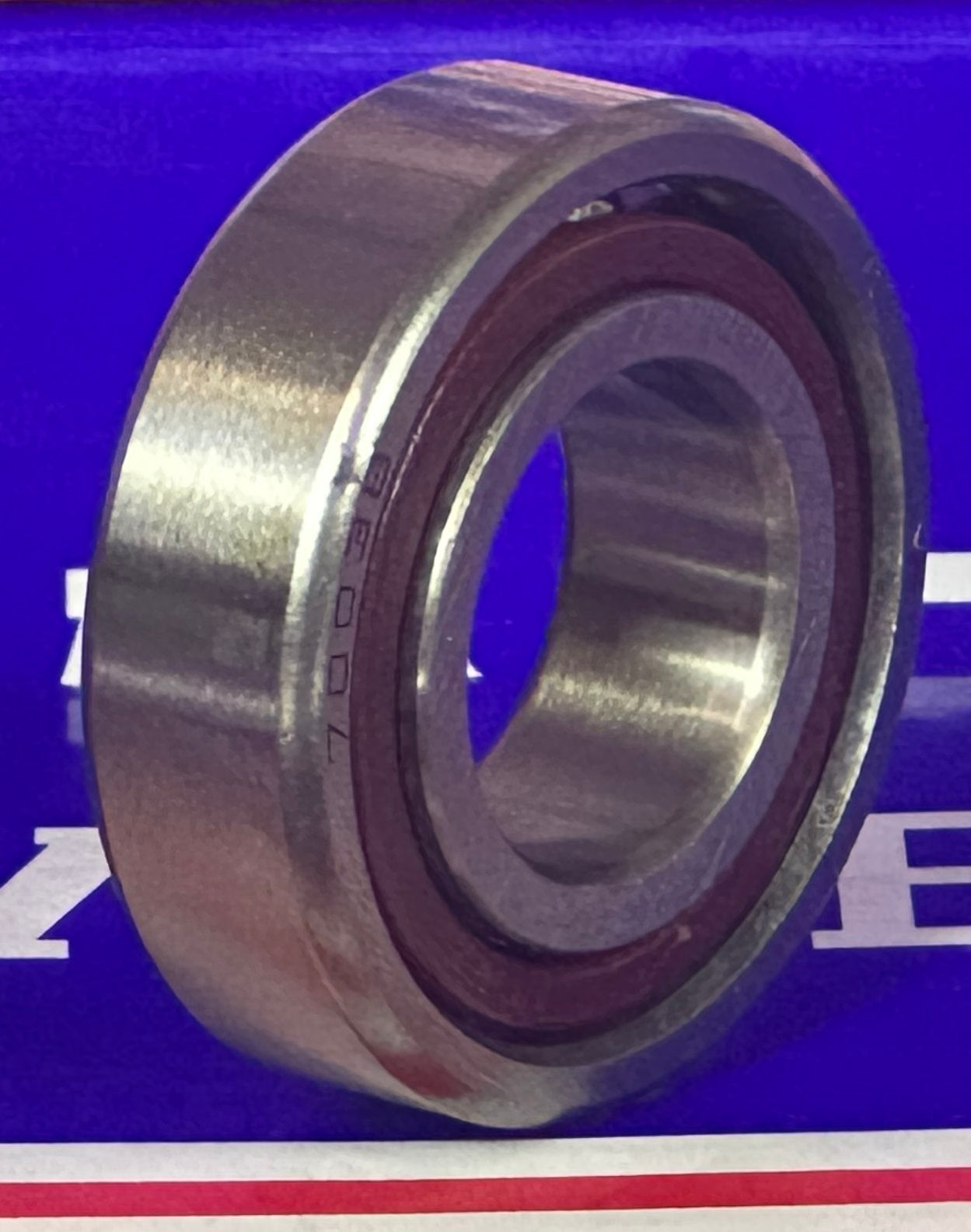

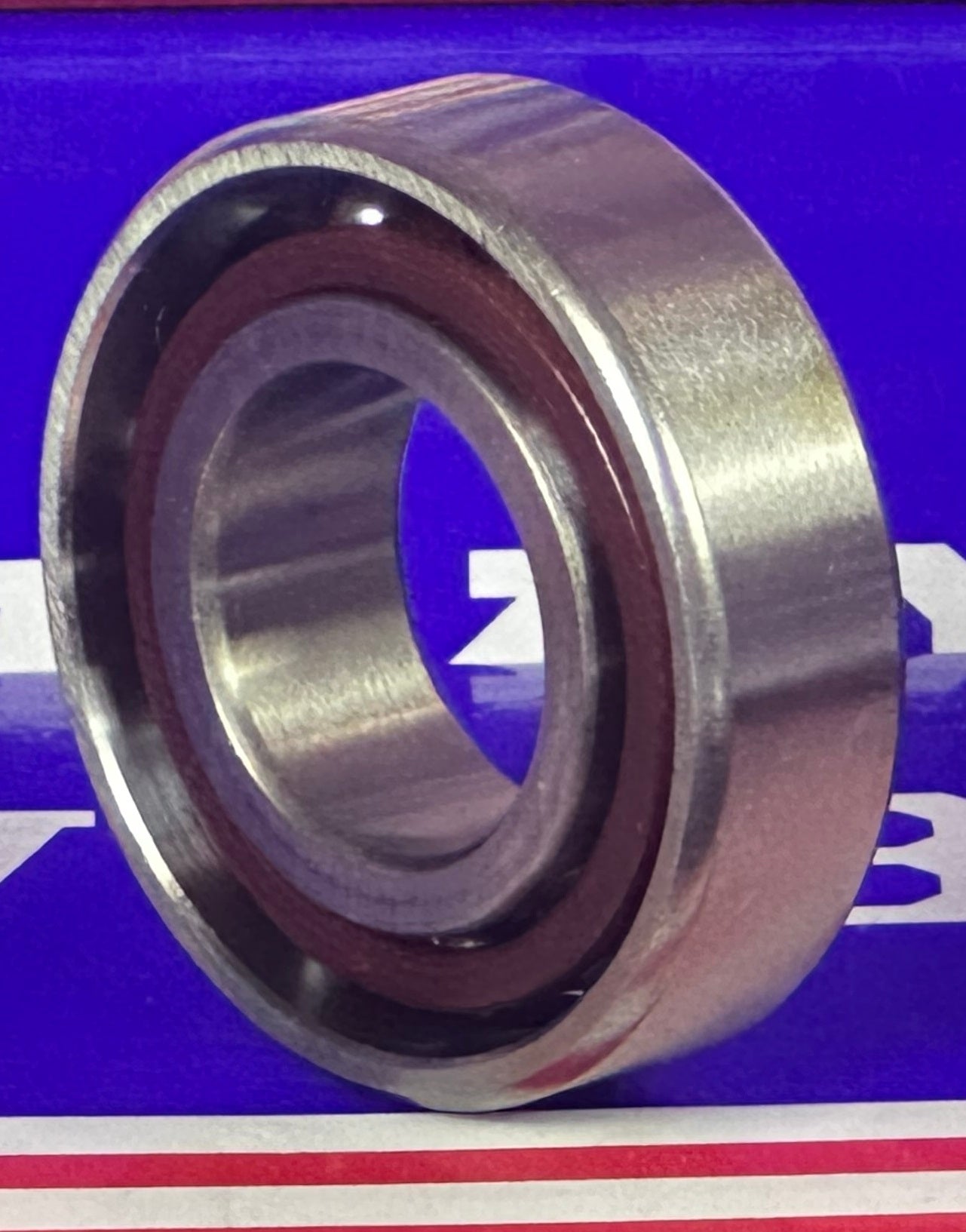

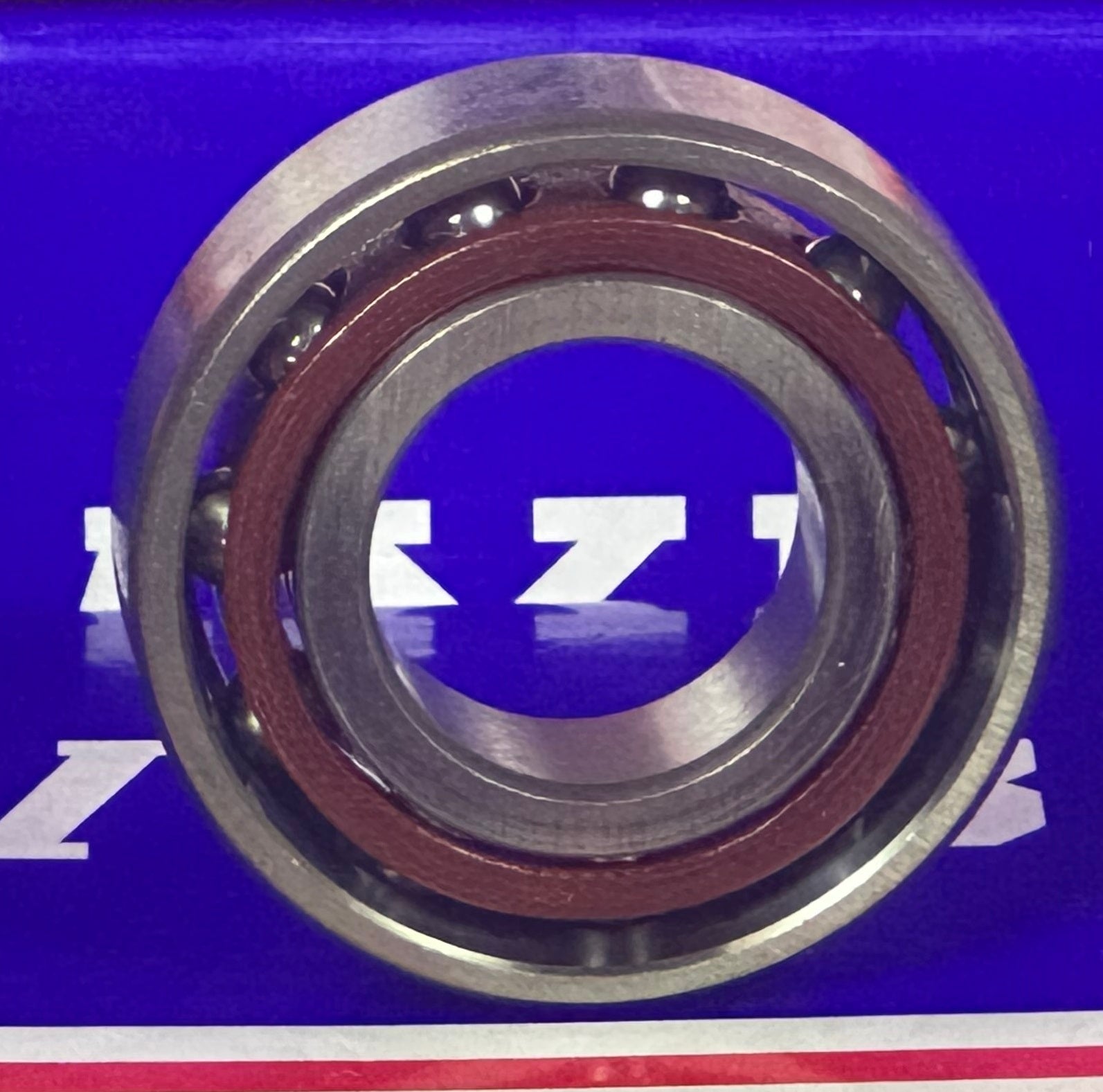

7003B Single Row Angular Contact Spindle Ball Bearing, this is a popular size that could be used in many applications that needs Cobined loads (Axial and Radial), Axial loads can be taken on one direction only, Bearing is made of Chrome Steel.
- Item: 7003B Ball Bearing
- Type: Single Row Angular Contact Ball Bearing (Spindle Ball Bearing)
- Dimensions: 17mm x 35mm x 10mm/metric
- inner diameter: 17mm
- outer diameter: 35mm
- Width: 10mm
- Size: 17 x 35 x 10 mm
- Quantity: One Bearing
- Dynamic load rating Cr: 6,400 N
- Static load rating Cor: 3,800 N
- Limiting Speed:
- Grease Lubrication: 17,000 RPM
- Oil Lubrication: 22,000 RPM
|
