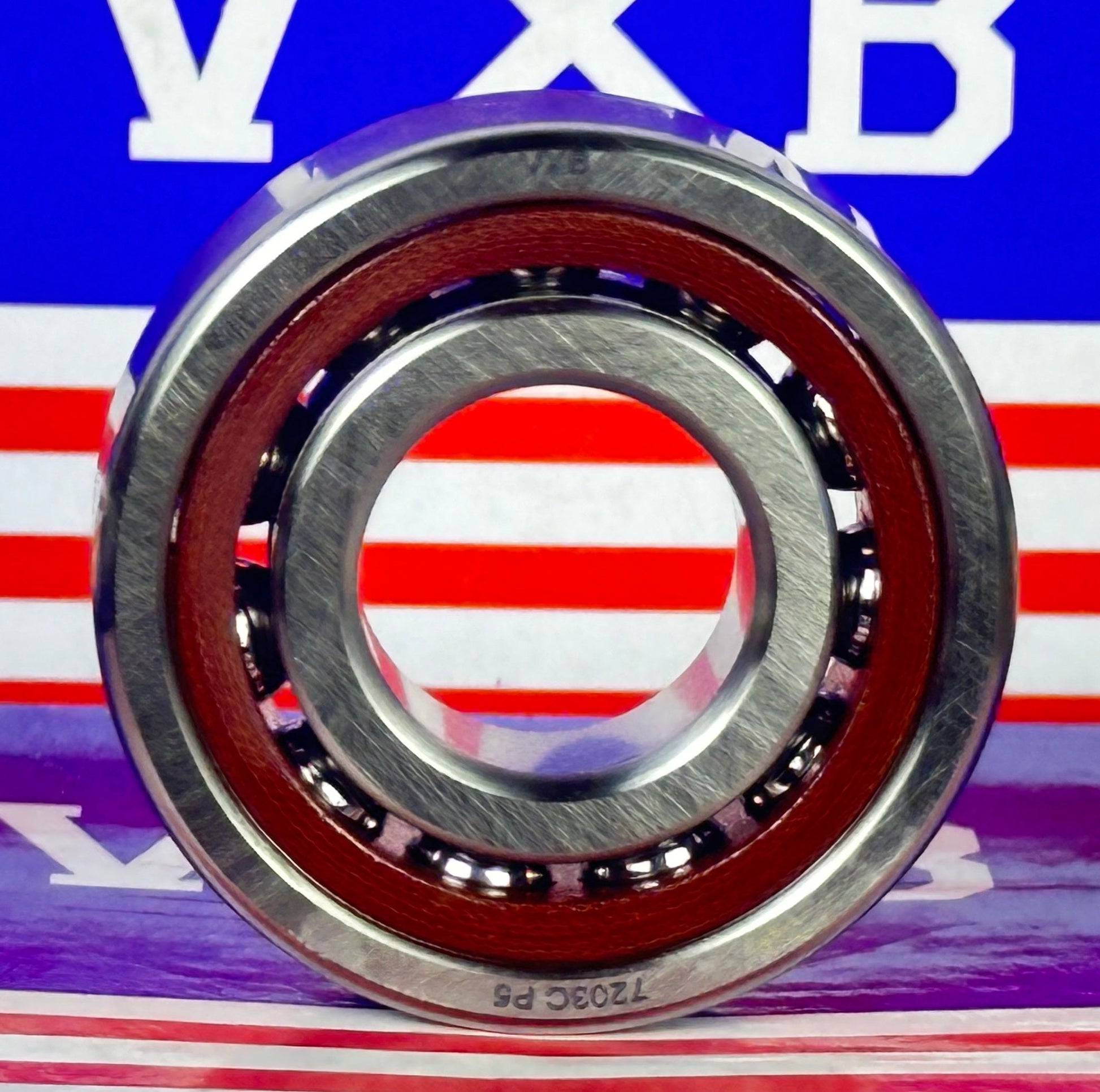

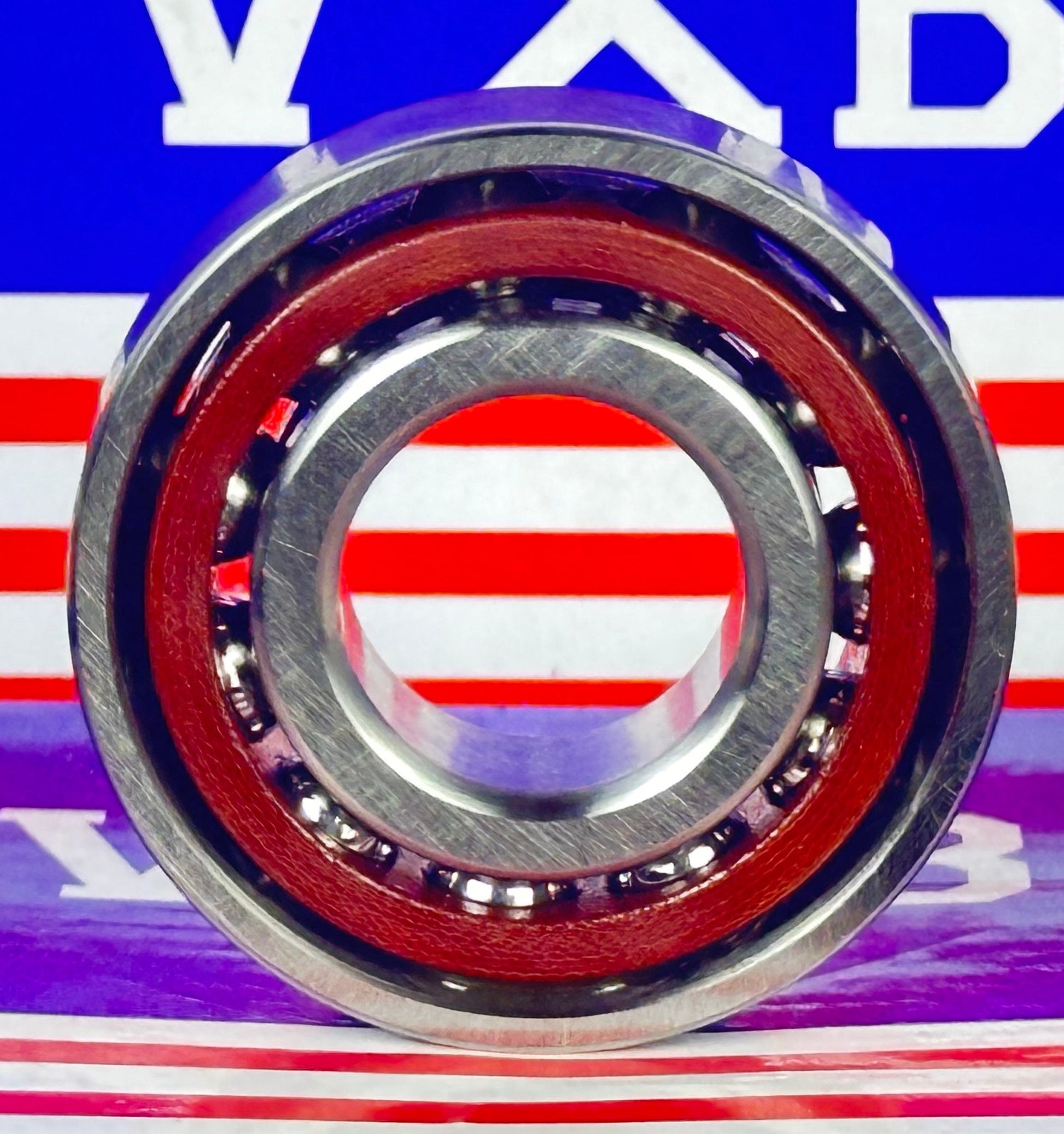

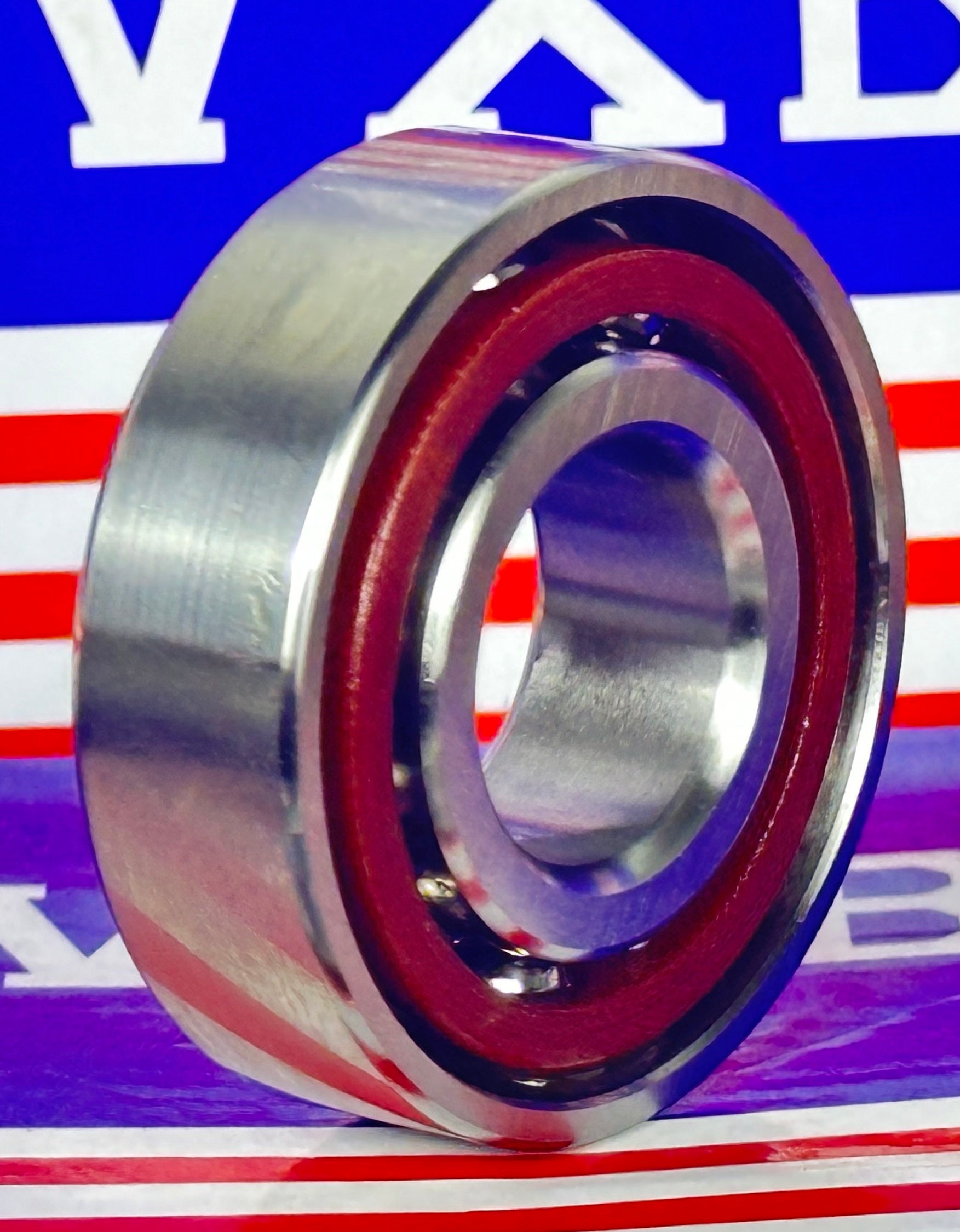

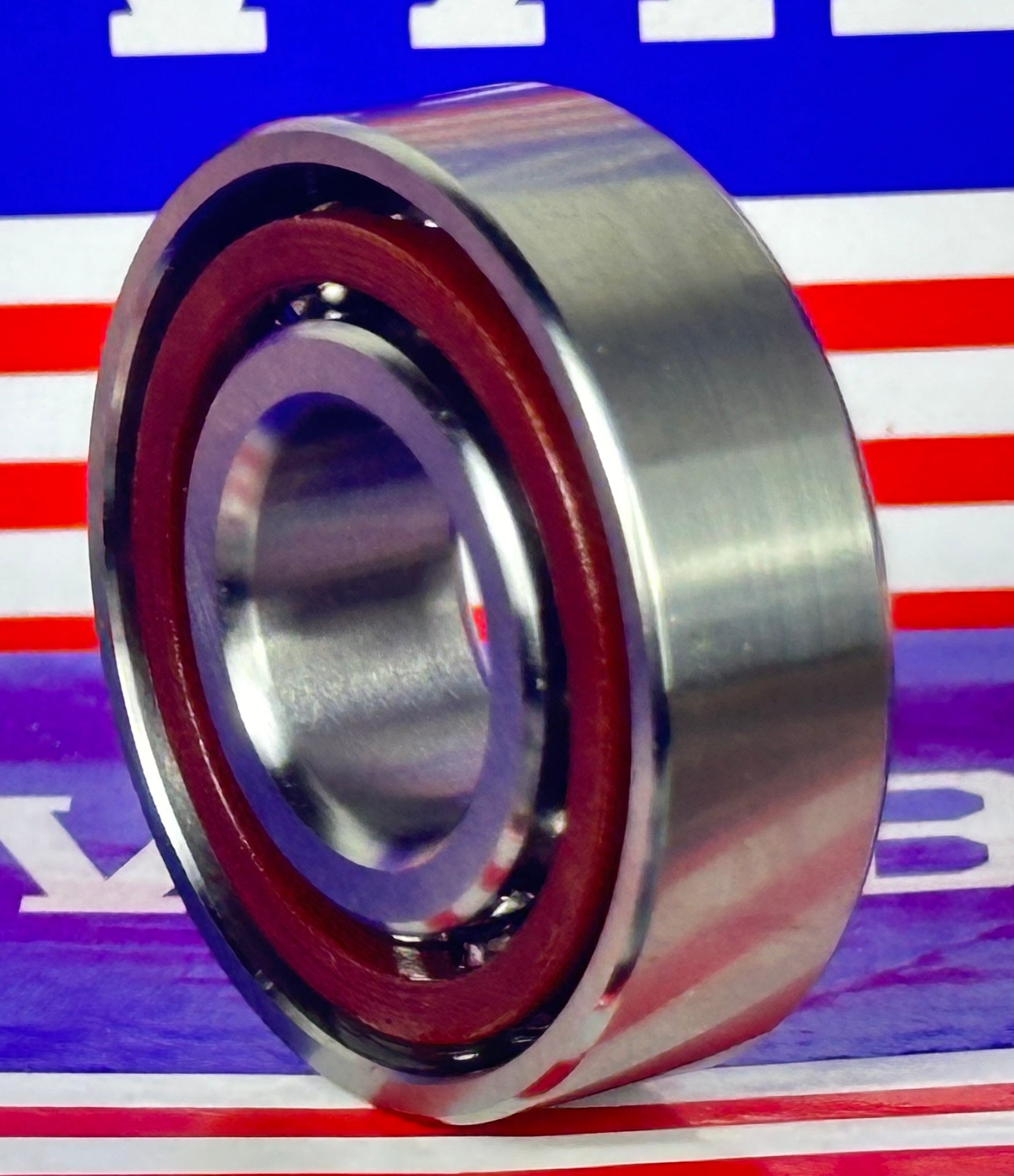

7203C P5 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-5 (P5) quality. 7203C P5 inner diameter is 17mm, outer diameter is 40mm, and width is 12mm.
- Item: 7203C P5 Ball Bearing
- Type: High Precision Angular Ball Bearing
- Cage: PA66+ 30% NTE264B
- Quality: ABEC-5 (P5 quality)
- Dimensions: 17mm x 40mm x 12mm/Metric
- ID (inner diameter)/Bore: 17mm
- OD (outer diameter): 40mm
- Width/Height/thickness: 12mm
- Size: 17 x 40 x 12 mm
- Quantity: One Bearing
- Dynamic load rating Cr: 11,300 N
- Static load rating Cor: 7,400 N
- Limiting Speed:
- Grease Lubrication: 40,000 RPM
- Oil Lubrication: 60,000 RPM

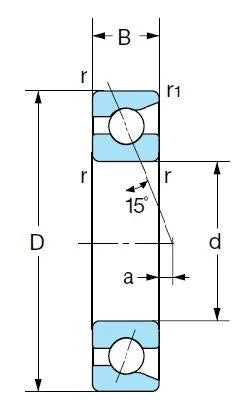

| Dimensions |
|---|
| d |
D |
B |
| 17mm |
40mm |
12mm |
|
