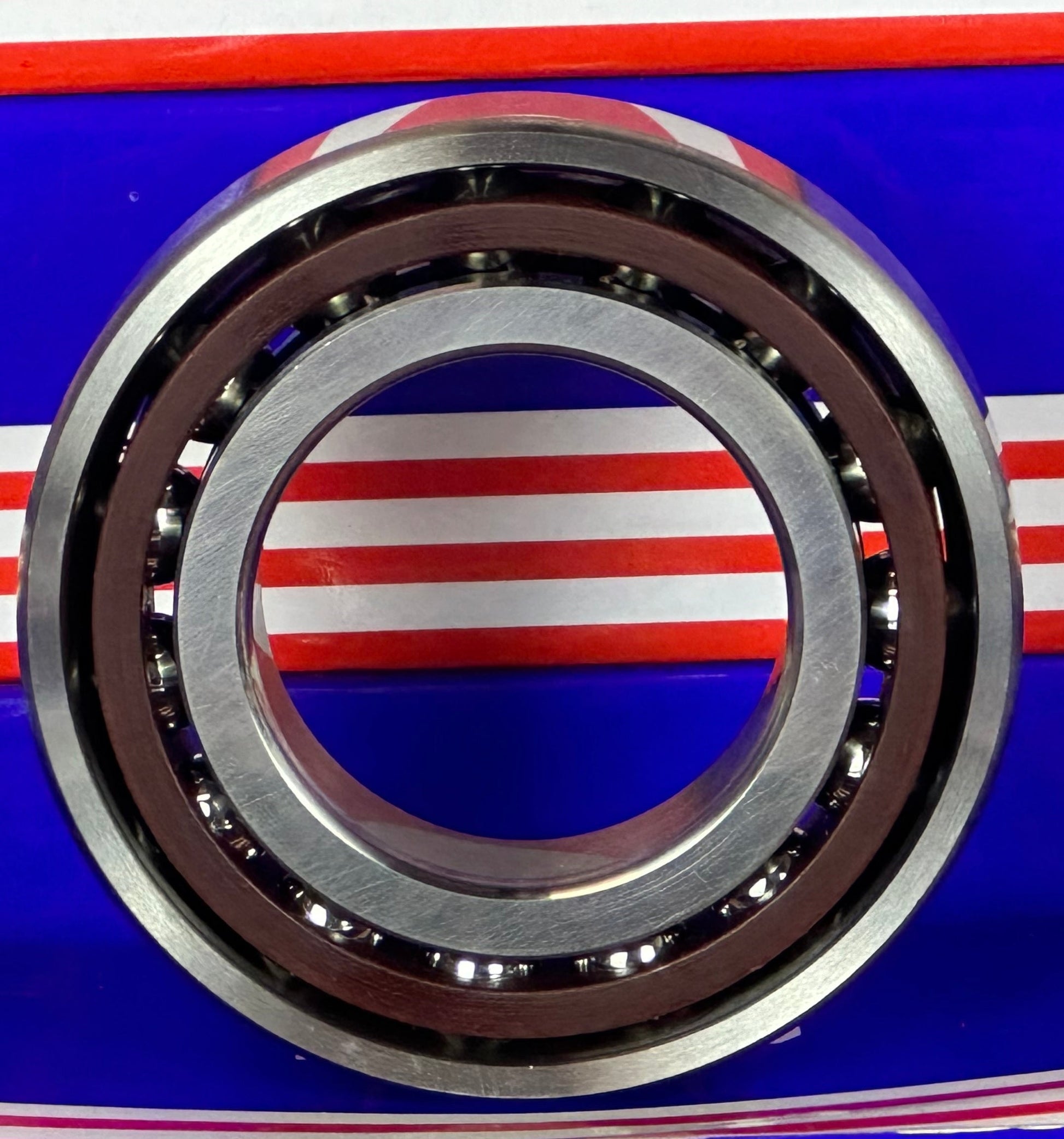

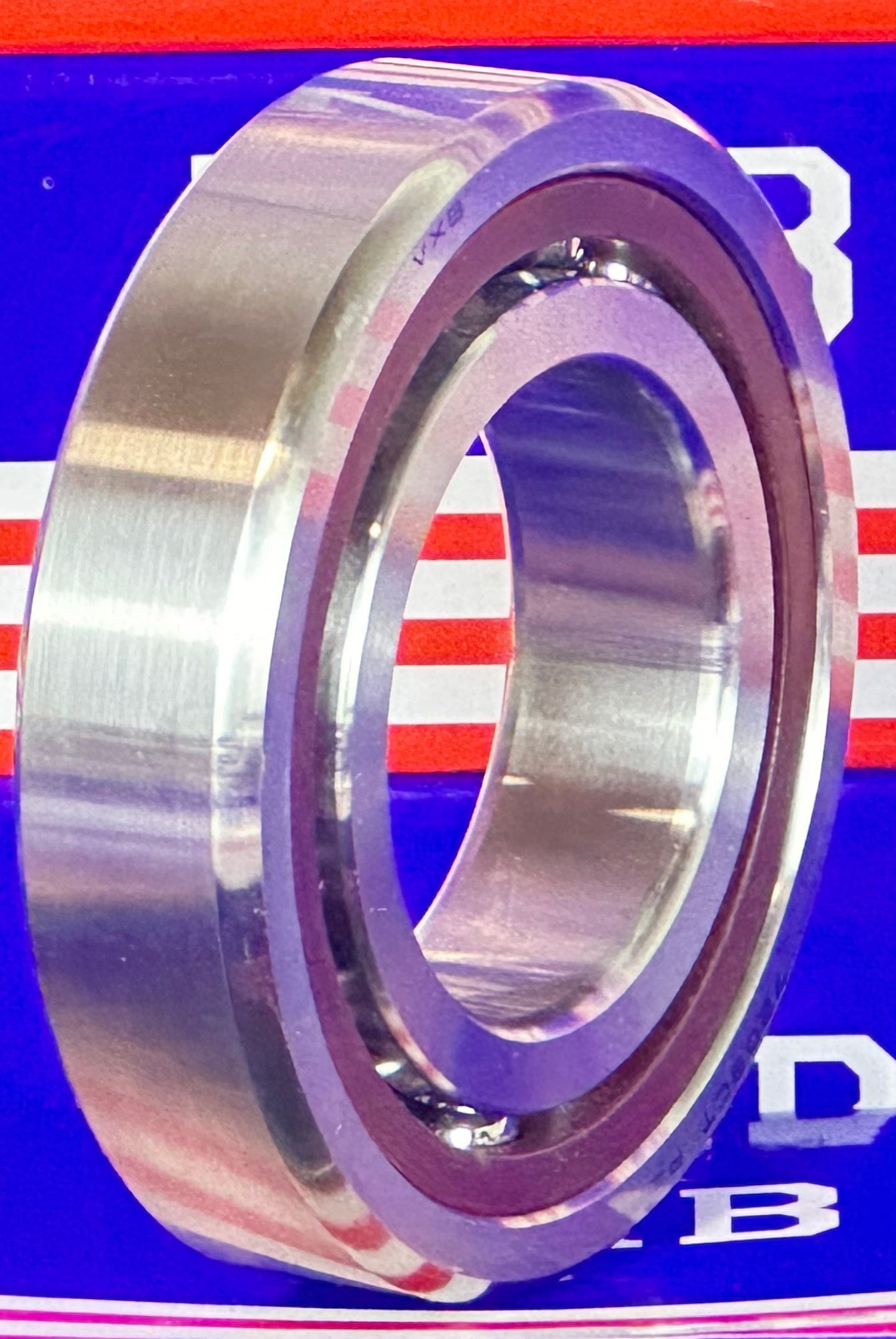

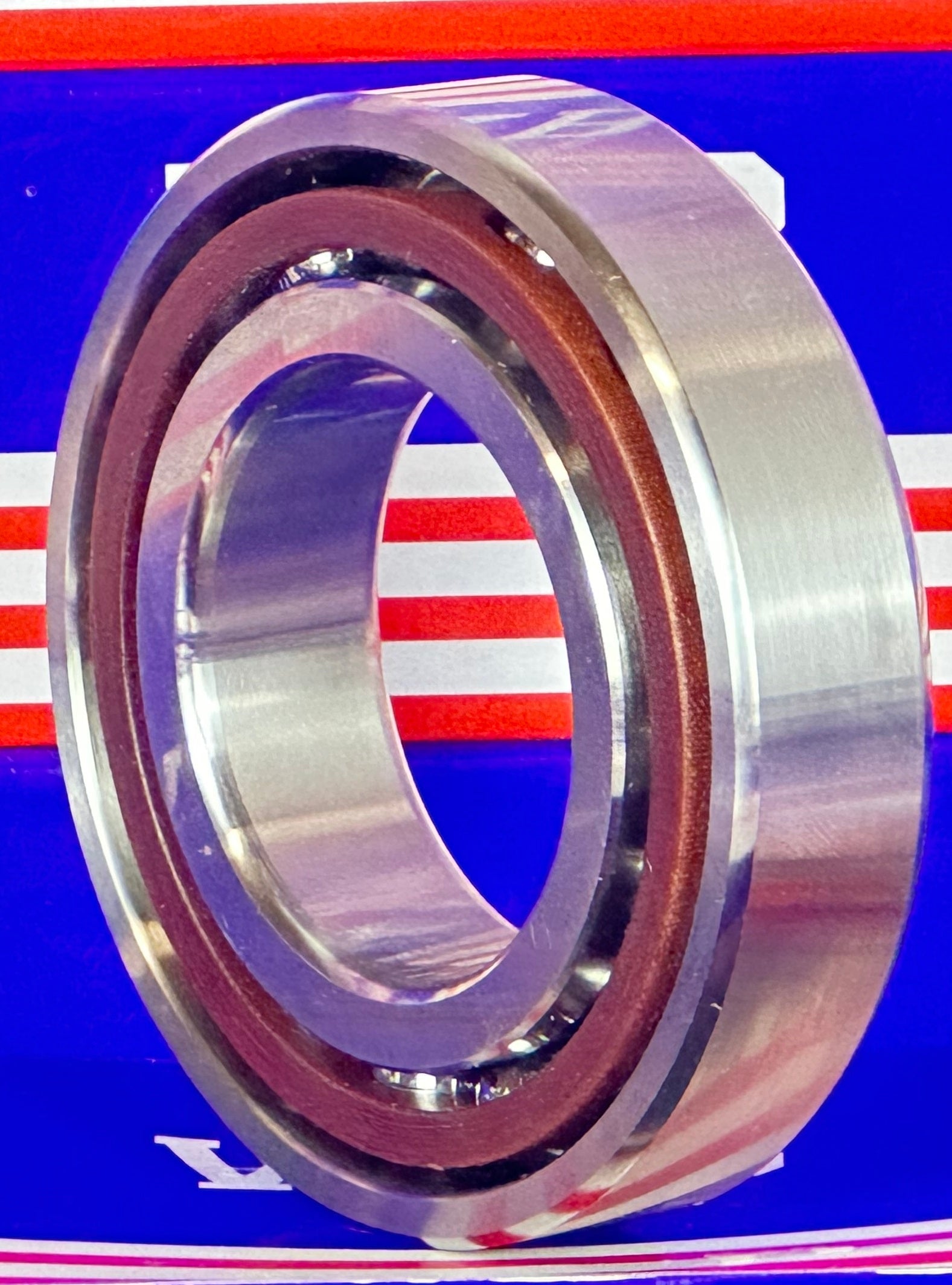

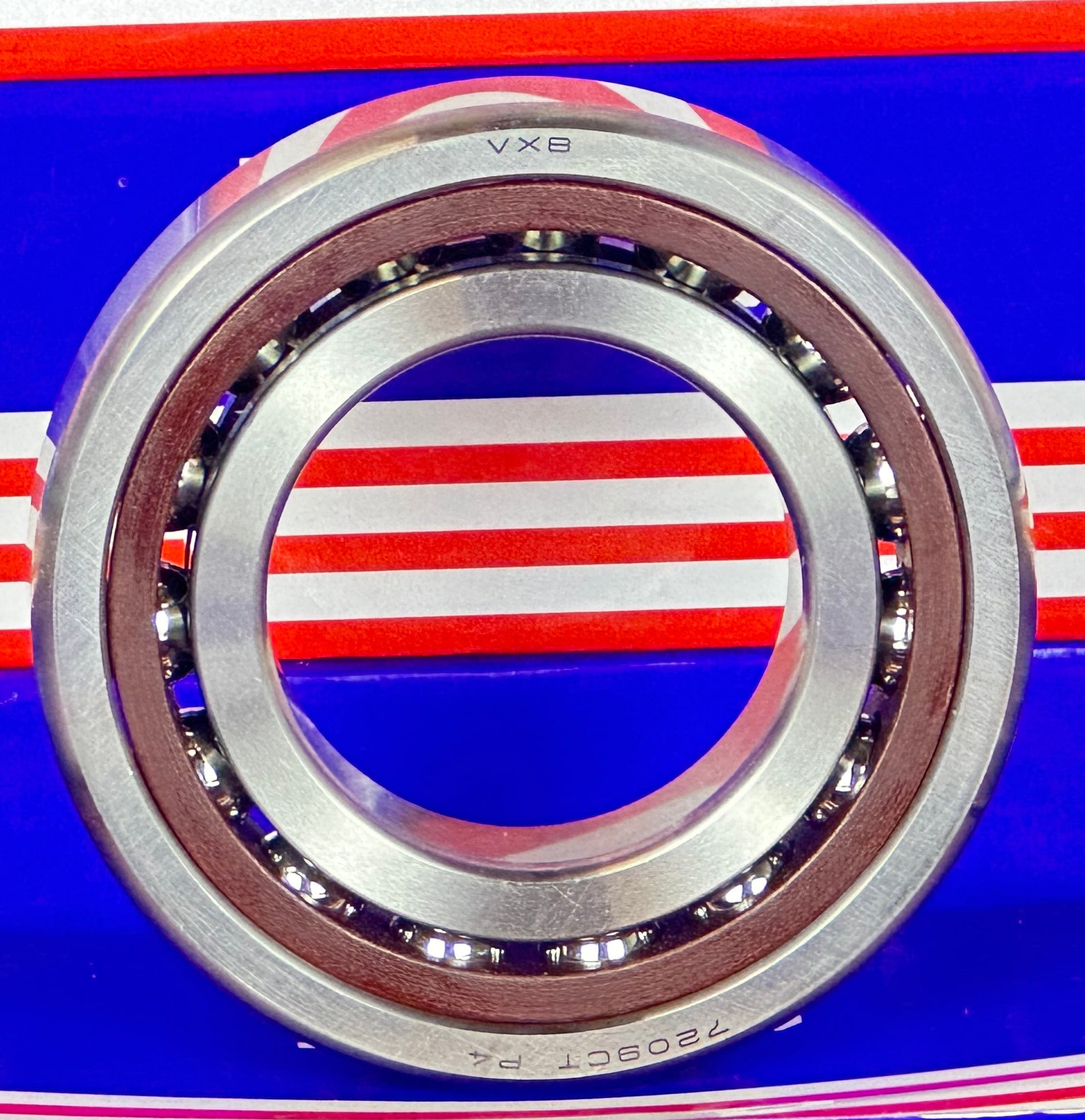

7209C P4 high precision Angular Ball Bearing with 15 degrees contact angle.bearing is ABEC-7 (P4) quality.
- Item: 7209C P4 Ball Bearing
- Cage: PA66 + 30% NTE264B
- Quality: ABEC-7 (P4 quality)
- ID (inner diameter)/Bore: 45mm
- OD (outer diameter): 85mm
- Width/Height/thickness: 19mm
- Size: 45 x 85 x 19 mm
- Quantity: One Bearing
- Dynamic load rating Cr: 41,000 N
- Static load rating Cor: 29,000 N
- Grease Lubrication: 12,000 RPM
- Oil Lubrication: 17,000 RPM

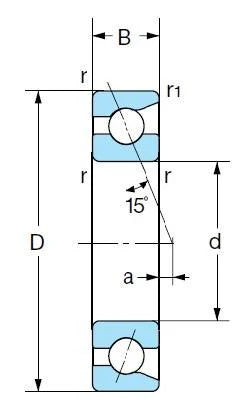

| Dimensions |
|---|
| d |
D |
B |
r |
r1 |
a |
| 45mm |
85mm |
19mm |
1.1mm |
0.6mm |
-2mm |
|
