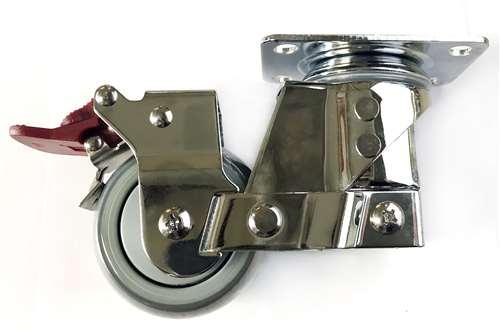

76mm Caster Wheel 165 pounds Swivel and Upper Brake Polyurethane Top Plate

76mm Caster Wheel 165 pounds Swivel and Upper Brake Polyurethane Top Plate

Item Name= VXB013076BCPUSB

Wheel Diameter= 76mm

Wheel Width= 32mm

Overall Height= 112mm

Overall Height Inch= 4.409"

Mounting Type= Top Plate

Top Plate Size= 95mm x 70mm

Hole distance= 75mm x 52mm

Wheel Core= Polyurethane

Tire= Polyurethane

Bearing type= Ball bearing

Load Capacity= 165 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB013076BCPUSB. And rolling on wheel that has 76mm diameter/2.992" inch. The wheel has a width of 32mm=1.260" inch. The caster dimensions heightwise is 112mm/4.409" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 95mm x 70mm and holes distance of 75mm x 52mm. The Ball bearing design will enable the Polyurethane tire to roll easily with a core made of Polyurethane. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 165 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy the VXB013076BCPUSB now, just add the quantity to basket and click on Checkout.
