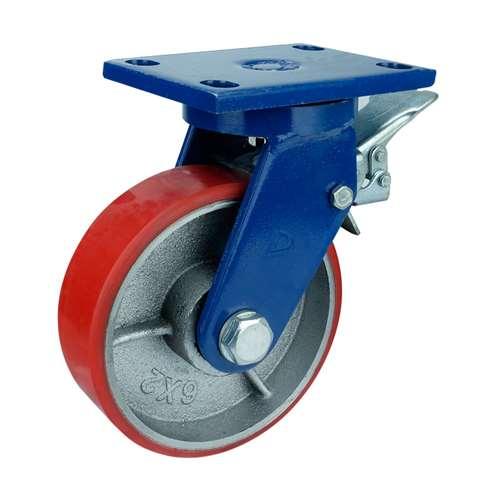

8" Inch Heavy Duty Caster Wheel 1543 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

8" Inch Caster Wheel 1543 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

Item Name= VXB009200BCPUB

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 268mm

Overall Height Inch= 10.551"

Mounting Type= Top Plate

Top Plate Size= 138mm x 110mm x 10mm

Hole distance= 110mm x 75mm

Wheel Core= Cast iron polyurethane

Tire= Cast iron polyurethane

Bearing type= Precision double ball bearing

Load Capacity= 1543 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB009200BCPUB. Diameter size of the caster wheel has a metric standard 200mm which is equal to 7.874" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 268mm/10.551" inch. Mounted via a Top Plate that has the size of 138mm x 110mm x 10mm and the holes distance of 110mm x 75mm. The weehl core material is Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Each caster will carry the load of 1543 lb and is Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB009200BCPUB in order to get one :).
