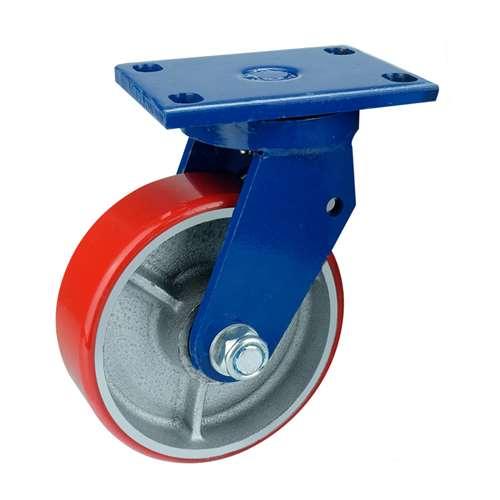

8" Inch Heavy Duty Caster Wheel 1543 pounds Swivel Cast iron polyurethane Top Plate

8" Inch Caster Wheel 1543 pounds Swivel Cast iron polyurethane Top Plate

Item Name= VXB009200BCPU

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 268mm

Overall Height Inch= 10.551"

Mounting Type= Top Plate

Top Plate Size= 138mm x 110mm x 10mm

Hole distance= 110mm x 75mm

Wheel Core= Cast iron polyurethane

Tire= Cast iron polyurethane

Bearing type= Precision double ball bearing

Load Capacity= 1543 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Utilizing VXB009200BCPU makes it feasible to pull and push items instead of transport Diameter size of the caster wheel has a metric standard 200mm which is equal to 7.874" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The Caster with the wheel from end to end is 268mm = 10.551" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 138mm x 110mm x 10mm with the holes distance of 110mm x 75mm. The Precision double ball bearing design will enable the Cast iron polyurethane tire to roll easily with a core made of Cast iron polyurethane. Each caster will carry the load of 1543 lb and is Swivel type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB009200BCPU in order to get one :).
