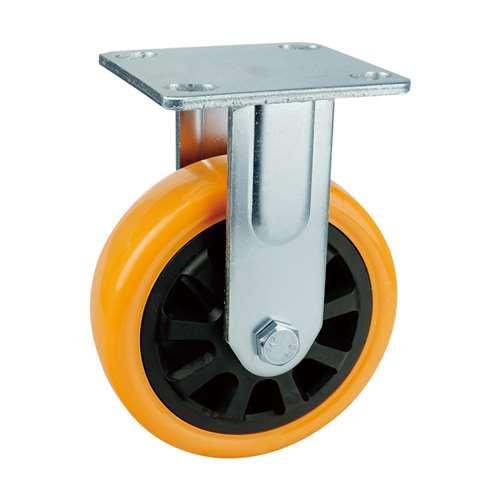

8" Inch Heavy Duty Caster Wheel 661 pounds Fixed Polyurethane Top Plate

8" Inch Caster Wheel 661 pounds Fixed Polyurethane Top Plate

Item Name= VXB005200HPUF

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 240mm

Overall Height Inch= 9.449"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyurethane

Tire= Polyurethane

Bearing type= Double ball beaing

Load Capacity= 661 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB005200HPUF. And rolling on wheel that has 200mm diameter/7.874" inch. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 240mm = 9.449" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. Low drag was achieved by a Polyurethane core on a Polyurethane tire spinning freely with a Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 661 lb with a Fixed type. Temperature range is -40 to 180 F. Buy our VXB005200HPUF, we wish all the best.
