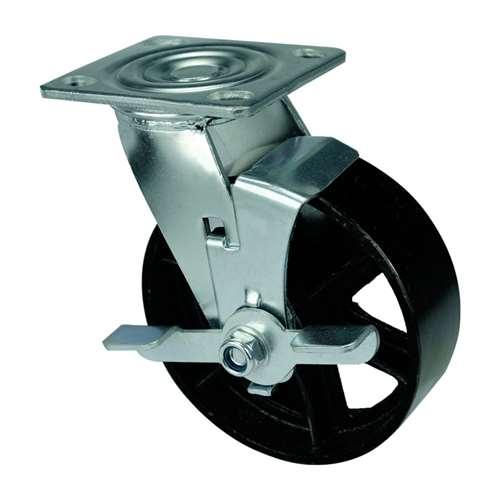

8" Inch Heavy Duty Caster Wheel 661 pounds Swivel and Center Brake Cast iron Top Plate

8" Inch Caster Wheel 661 pounds Swivel and Center Brake Cast iron Top Plate

Item Name= VXB005200CB1

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 240mm

Overall Height Inch= 9.449"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Cast iron

Tire= Cast iron

Bearing type= Roller bearing

Load Capacity= 661 lb

Mounting= Swivel and Center Brake

Temperature Range= -40 to 180 F

Mounting VXB005200CB1 is the Low cost solution of making a project to move around by pushing or pulling. Diameter size of the caster wheel has a metric standard 200mm which is equal to 7.874" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 240mm/9.449" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The Roller bearing design will enable the Cast iron tire to roll easily with a core made of Cast iron. Each caster will carry the load of 661 lb and is Swivel and Center Brake type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB005200CB1 in order to get one :).
