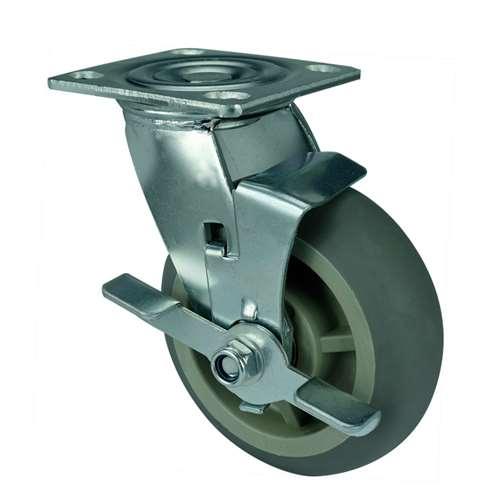

8" Inch Heavy Duty Caster Wheel 661 pounds Swivel and Center Brake Polypropylene core and Thermoplastic Rubber Top Plate

8" Inch Caster Wheel 661 pounds Swivel and Center Brake Polypropylene core and Thermoplastic Rubber Top Plate

Item Name= VXB005200ATPRB1

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 240mm

Overall Height Inch= 9.449"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polypropylene core and Thermoplastic Rubber

Tire= Polypropylene core and Thermoplastic Rubber

Bearing type= Double ball beaing

Load Capacity= 661 lb

Mounting= Swivel and Center Brake

Temperature Range= -40 to 180 F

Mounting VXB005200ATPRB1 is the Low cost solution of making a project to move around by pushing or pulling. And rolling on wheel that has 200mm diameter/7.874" inch. The wheel has a width of 50mm=1.969" inch. Overall height of the wheel caster is 240mm = 9.449" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polypropylene core and Thermoplastic Rubber tire to roll easily with a core made of Polypropylene core and Thermoplastic Rubber. Bearing in mind that every caster wheel has the load capacity of 661 lb with a Swivel and Center Brake type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB005200ATPRB1 in order to get one :).
