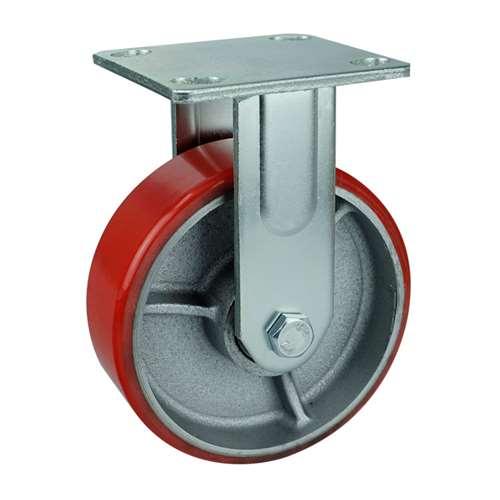

8" Inch Heavy Duty Caster Wheel 838 pounds Fixed Iron core and Polyurethane Top Plate

8" Inch Caster Wheel 838 pounds Fixed Iron core and Polyurethane Top Plate

Item Name= VXB005200CPUF

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 241mm

Overall Height Inch= 9.488"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Iron core and Polyurethane

Tire= Iron core and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 838 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Heavy weight capability and Durability made the wheel casters like the VXB005200CPUF a must use, get your do it yourself object move around. Diameter size of the caster wheel has a metric standard 200mm which is equal to 7.874" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. Overall height of the wheel caster is 241mm = 9.488" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Iron core and Polyurethane core on a Iron core and Polyurethane tire spinning freely with a Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 838 lb with a Fixed type. Temperature range is -40 to 180 F. Very important notice, you need to buy the VXB005200CPUF in order to get one :).
