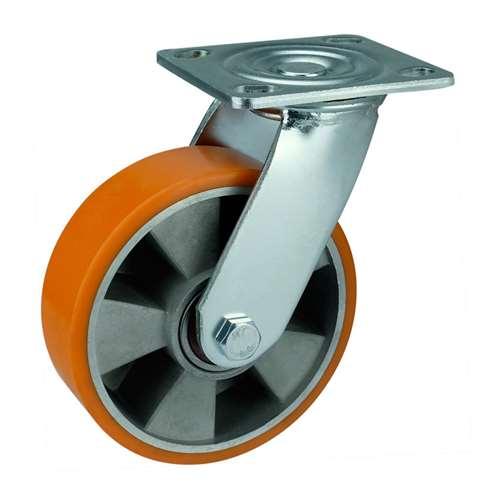

8" Inch Heavy Duty Caster Wheel 992 pounds Swivel Aluminum and Polyurethane Top Plate

8" Inch Caster Wheel 992 pounds Swivel Aluminum and Polyurethane Top Plate

Item Name= VXB005200BAPU

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 240mm

Overall Height Inch= 9.449"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminum and Polyurethane

Tire= Aluminum and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 992 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB005200BAPU. And rolling on wheel that has 200mm diameter/7.874" inch. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 240mm/9.449" inch. Mounted via a Top Plate that has the size of 115mm x 100mm and the holes distance of 72mm x 85mm. The Double ball beaing design will enable the Aluminum and Polyurethane tire to roll easily with a core made of Aluminum and Polyurethane. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 992 lb with a Swivel type. Environment temperature range is -40 to 180 F. Buy our VXB005200BAPU, we wish all the best.
