AS60 One Way 60x110x22 Bearing Support Required Backstop Clutch

AS60 One Way 60x110x22 Bearing Support Required Backstop Clutch

$273.99 USD
$273.99 USD
Sale Sold out

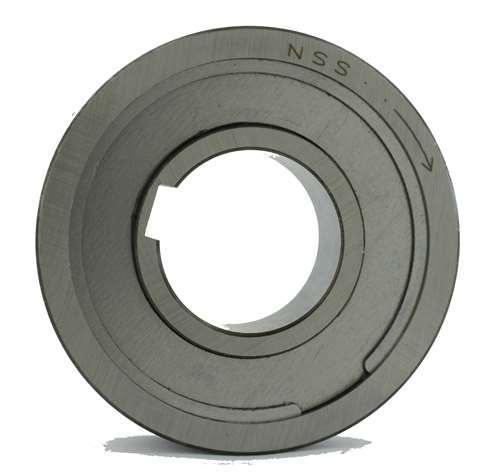

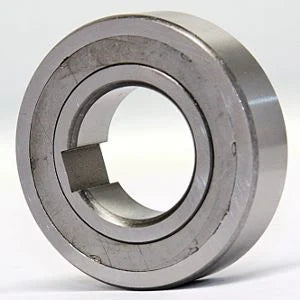

AS60 One Way Clutch
One Clutch


 AS60 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, you will need one of the 6205 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS60 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • Item: AS60 Clutch
  • Type: One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 60mm x 110mm x 22mm/metric
  • Inner Diameter: 60mm
  • Outer Diameter: 110mm
  • Width: 22mm
  • Torque: 406 TKN
  • Resistance Torque: 26 TKN
  • Inner Race Overrun: 700 RPM
  • Outer Race Overrun: 1,100 RPM
  • Quantity: One Clutch

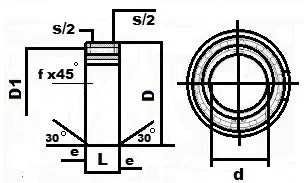

Dimension (mm)
d D D1 L s e f
60 110 100 22 2.5 1.2 1.5
