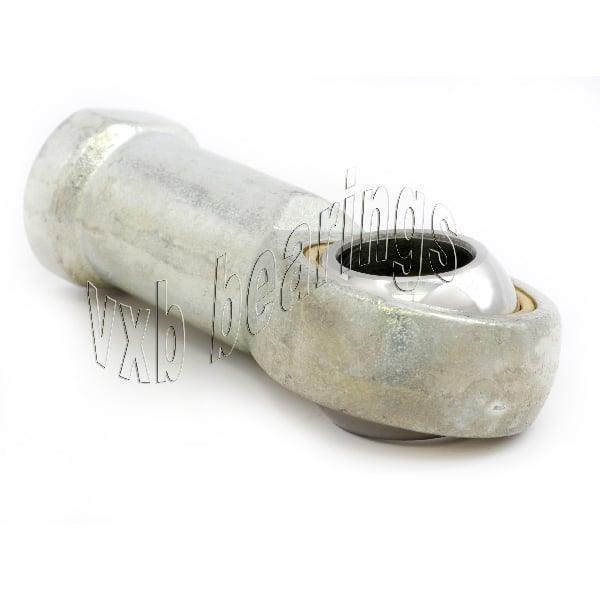

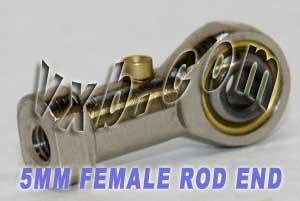

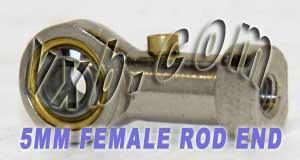

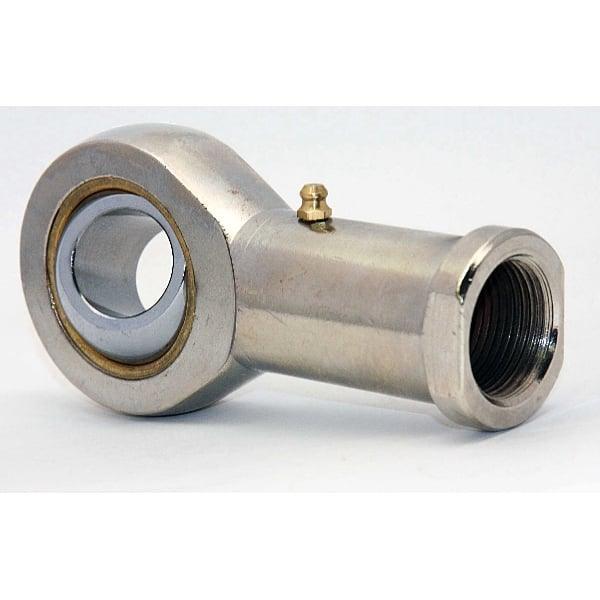

One Left Hand Female Rod End PHS5L Works with 5mm Shafts, inner diameter is 5mm, the internal thread size is M5x0.8, Here is the interchange designation in every brand:
- Item: PHS5L Bearing
- Type: Rod Ends Heim Joints Bearing
- Quantity: One Bearing
- Dynamic load Capacity: 330 KGF
- Static load Capacity: 580 KGF
- IKO: PHS5L
- ELGES: GIKFR 5 PB
- Equal: SIKAC 5 M
- HIRSCHMANN: SF 5

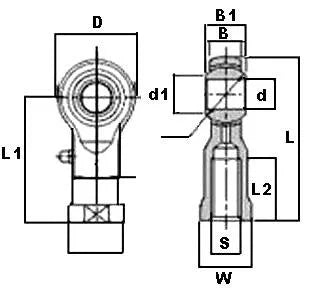

| Dimensions (mm) |
|---|
| d |
Thread
S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 5 |
M5x0.8 |
16 |
6 |
8 |
7.7 |
35 |
27 |
14 |
9 |
|
