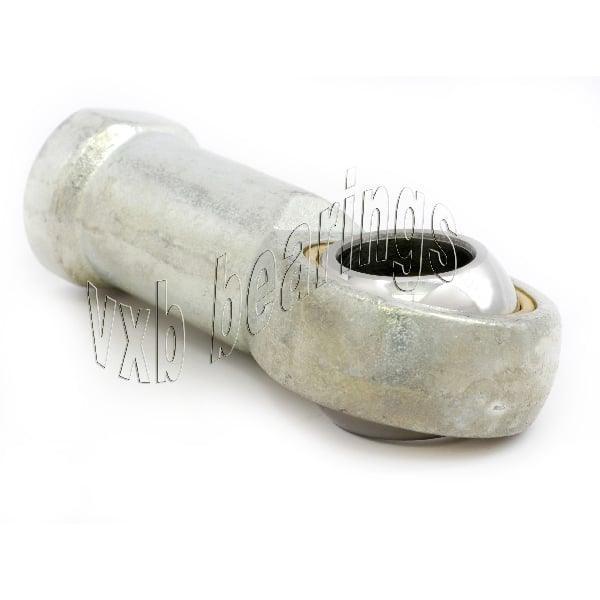

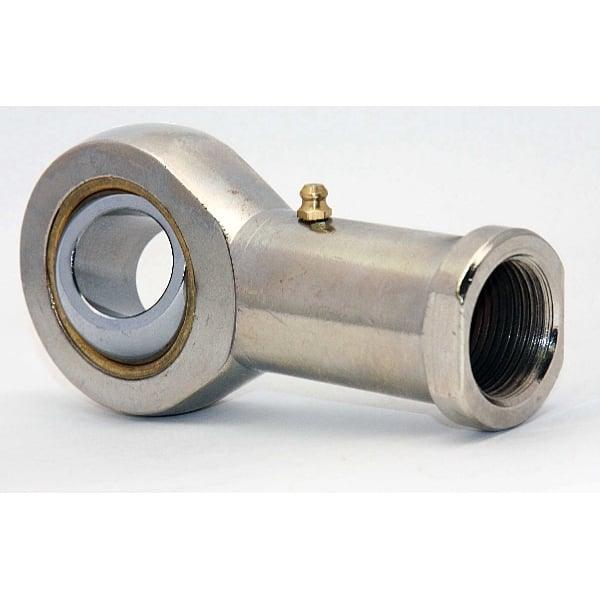

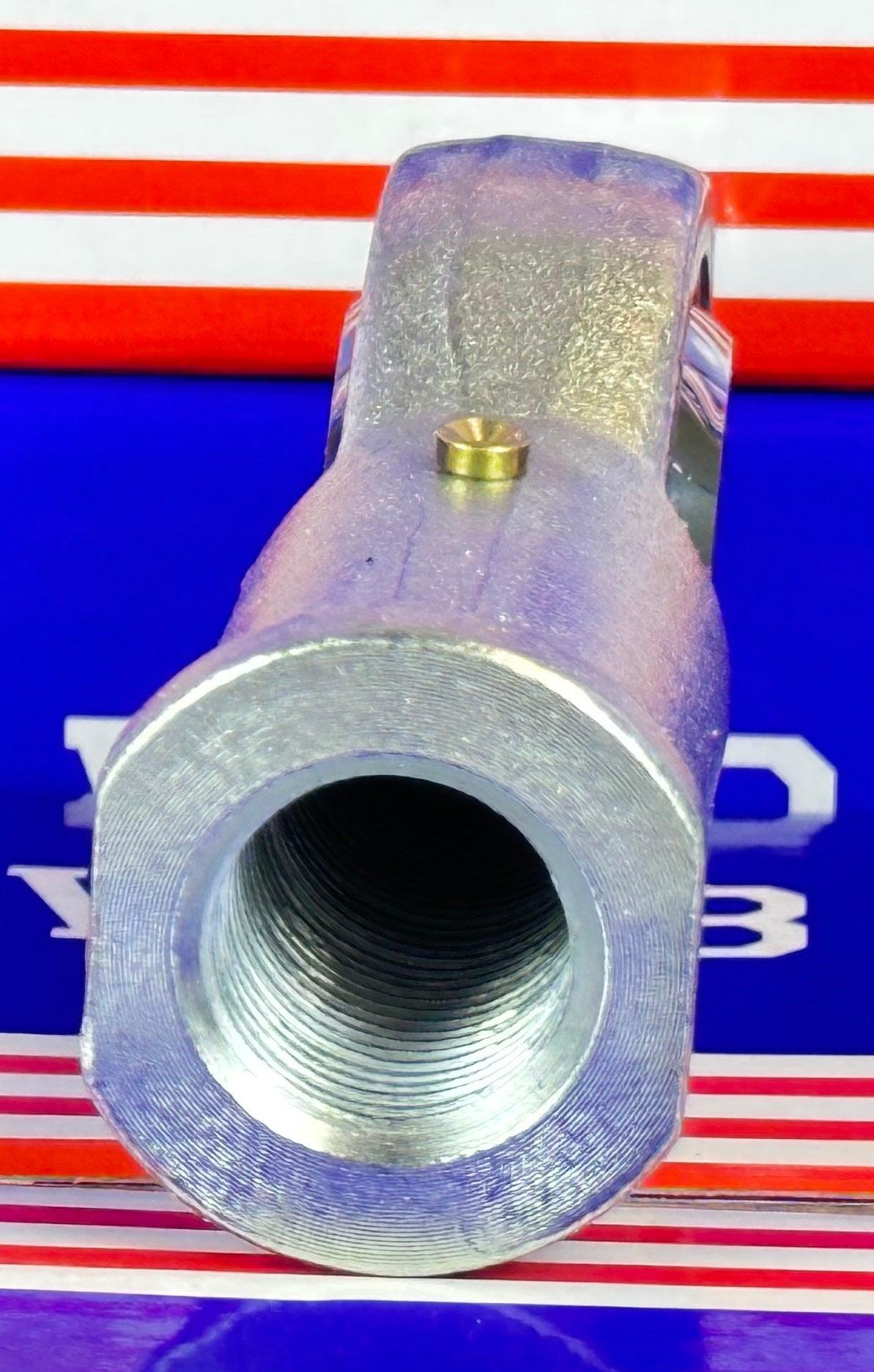

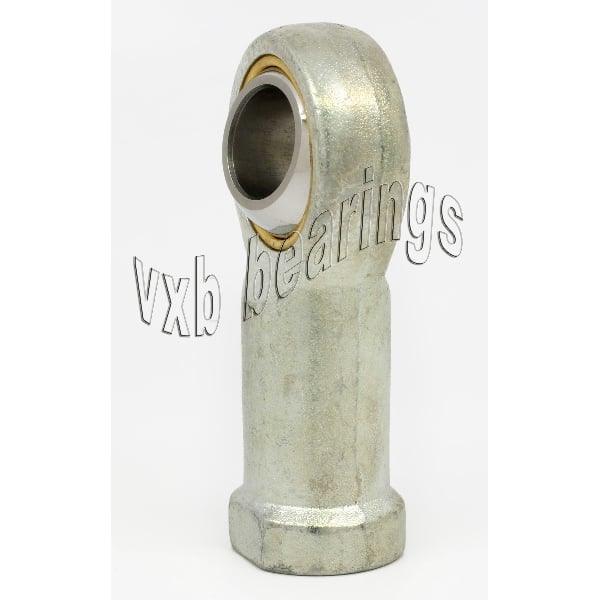

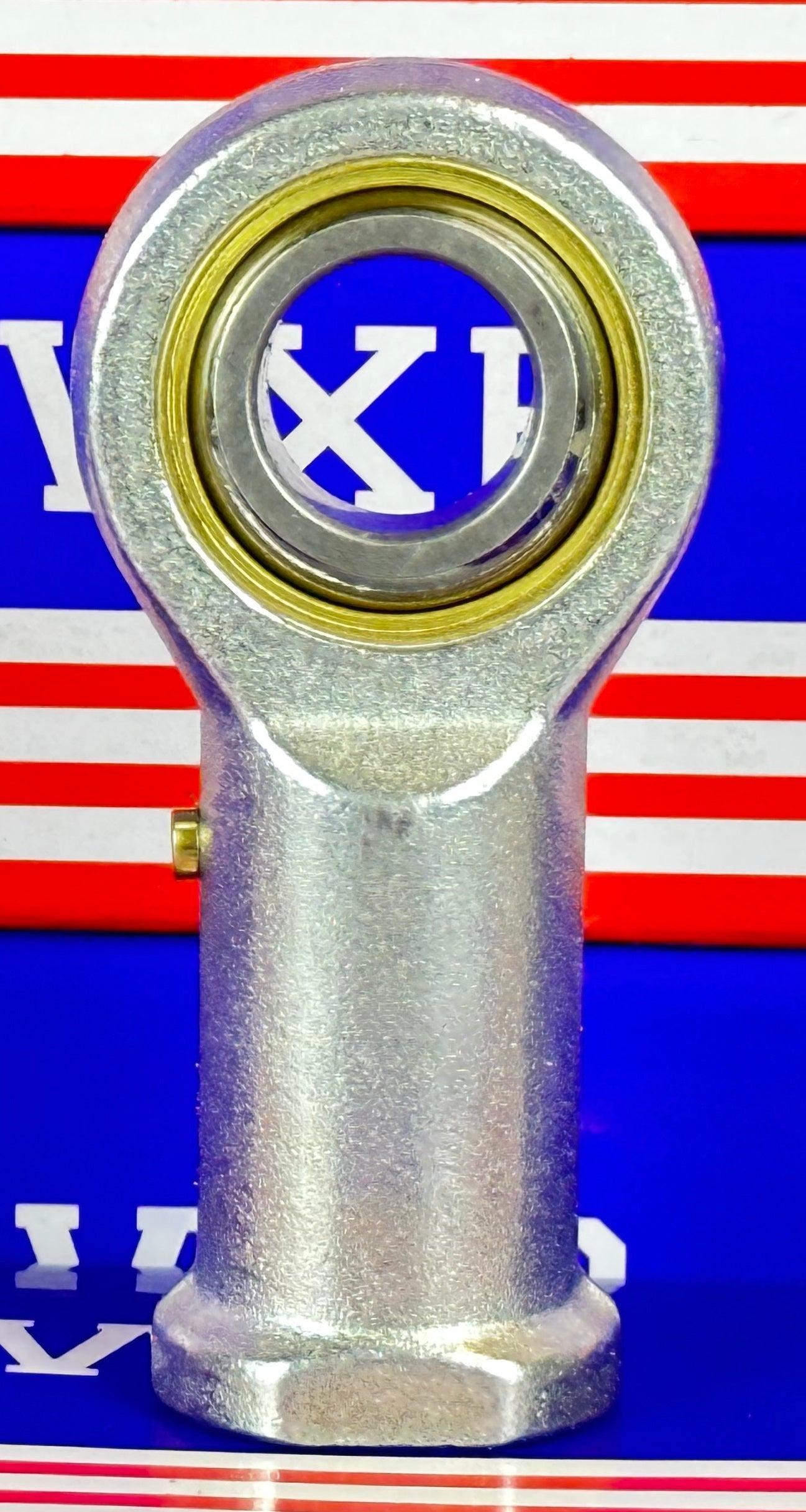

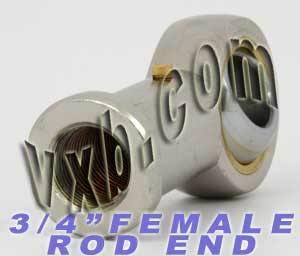

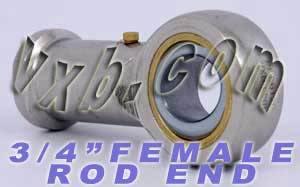

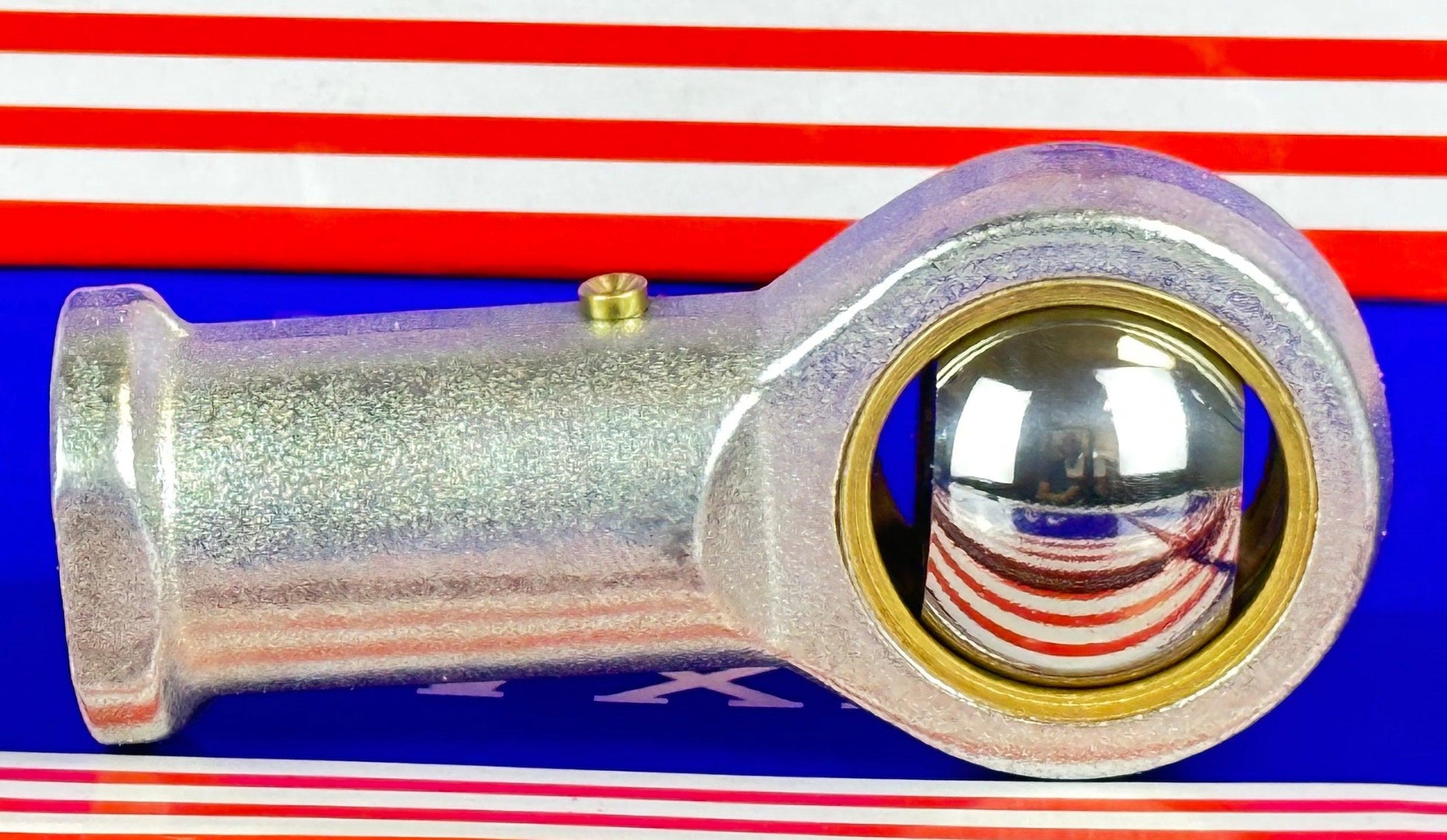

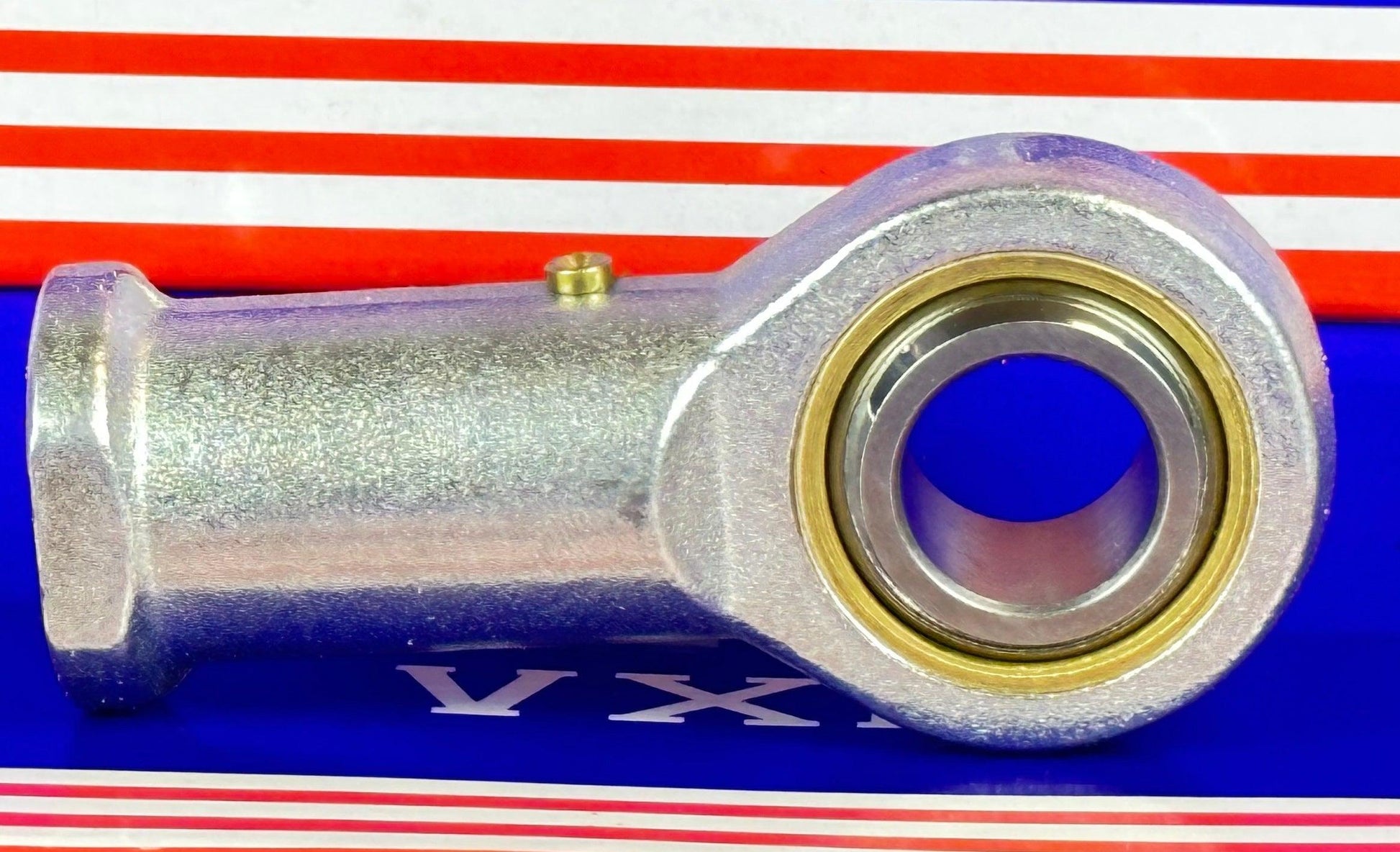

Female Rod End PHSB12L, left hand Works with 3/4" Shafts, they are marked PHSB12L with 3/4" inner diameter, the internal thread size is 3/4", Here is the interchange designation in every brand:
- Item: PHSB12L Bearing
- Type: Female Rod Ends
- Thread Size: 3/4" UNF
- Quantity: One Bearing
- Dynamic Load Rating: 2,910 KGF
- Static Load Rating: 5,760 KGF

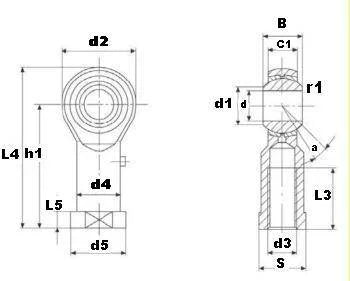

| Dimensions (Inches) |
|---|
| d |
Thread S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 3/4" |
3/4"-16UNF |
1-3/4" |
45/64" |
7/8" |
0.978" |
3-3/4" |
2-7/8" |
1-3/4" |
1" |
|
