VXB

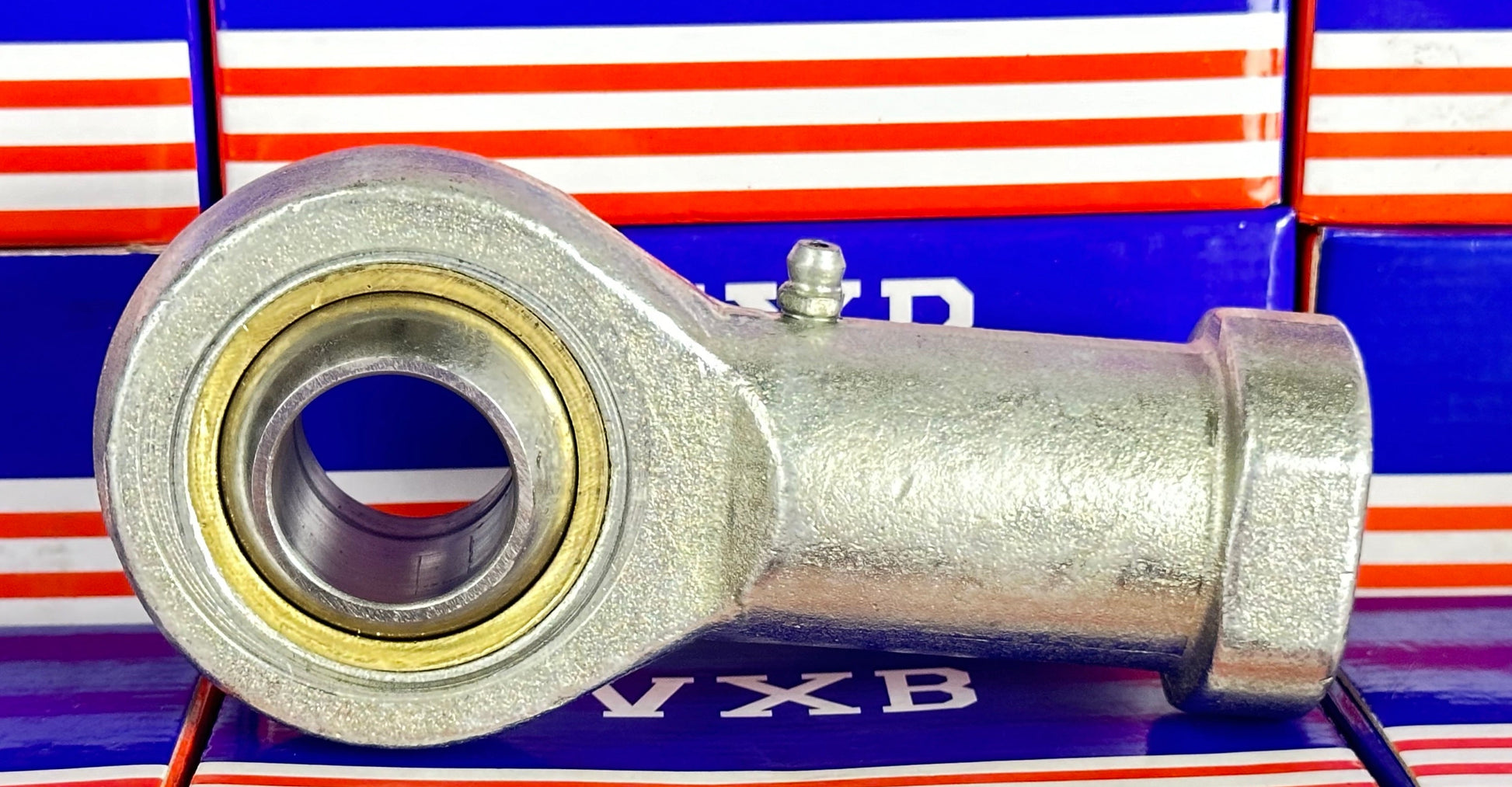

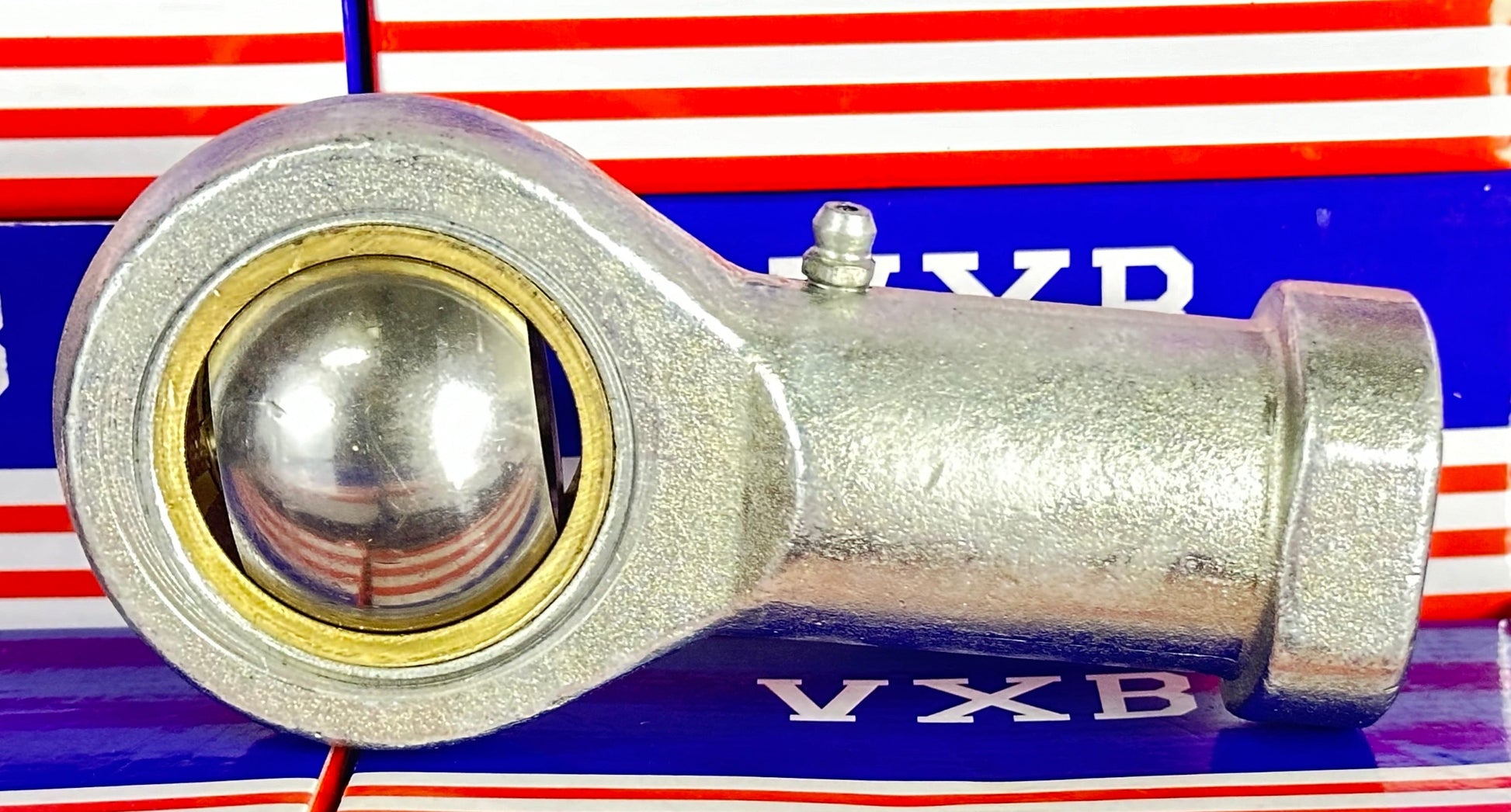

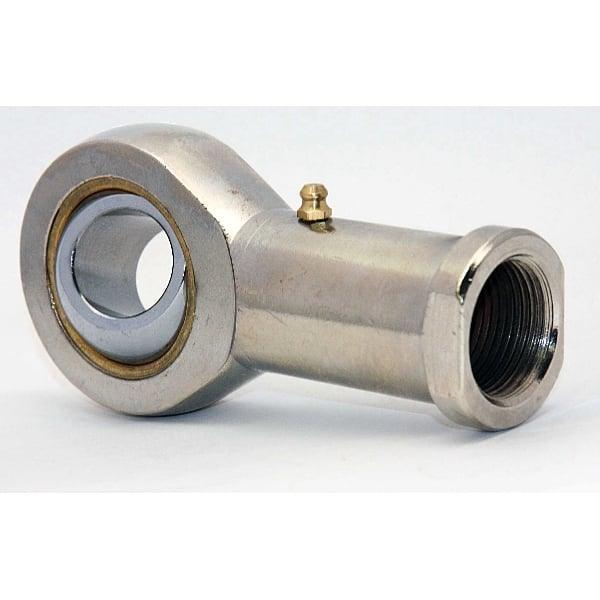

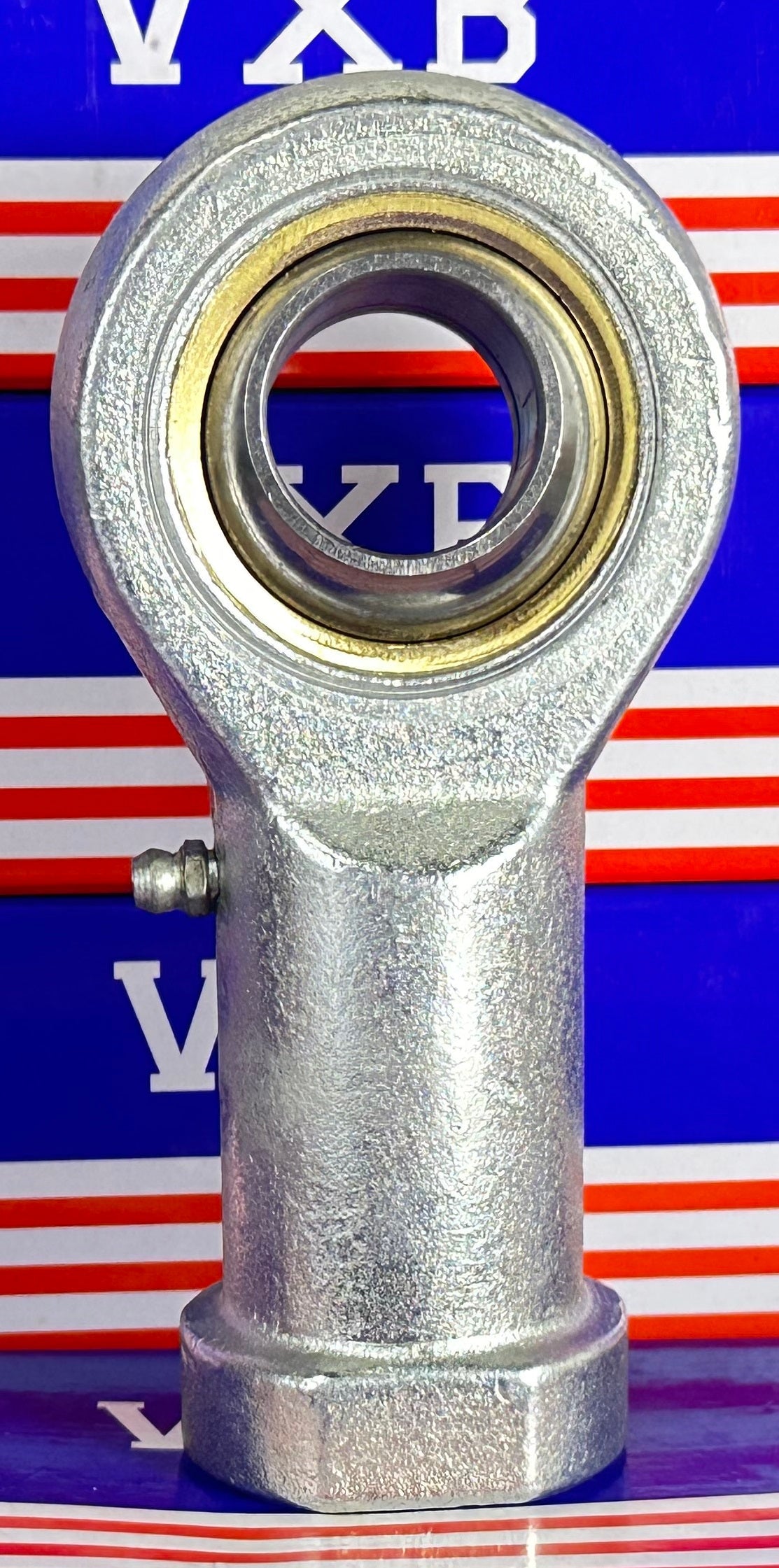

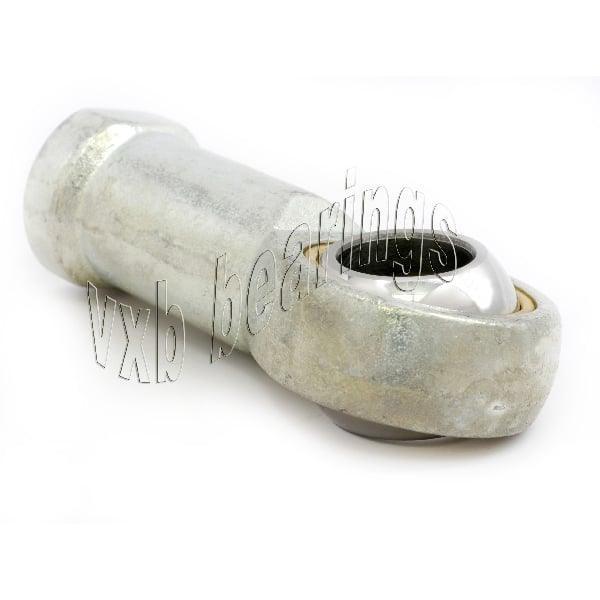

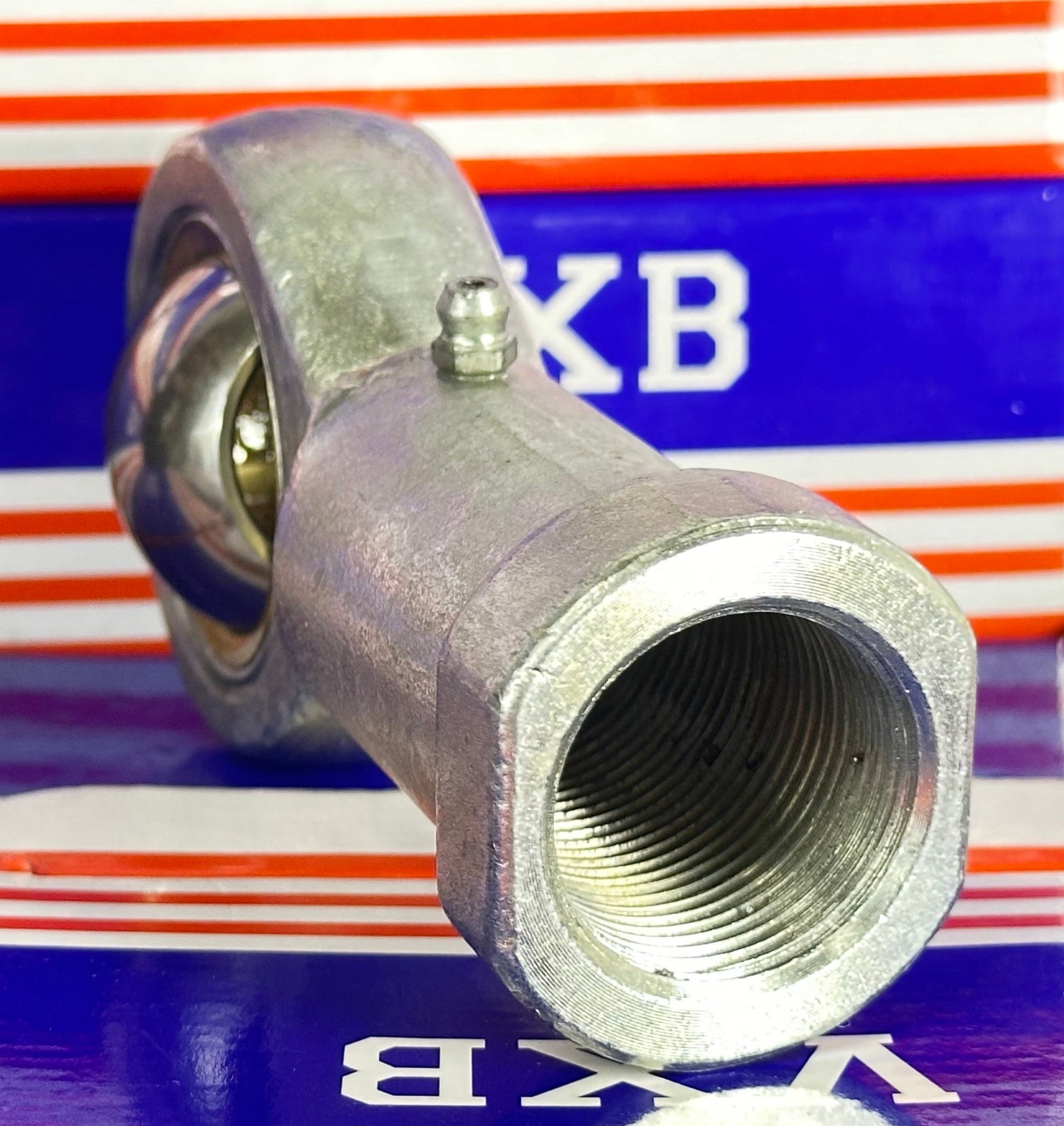

Female Rod End PHSB16 1 Right hand Bearing

Female Rod End PHSB16 1 Right hand Bearing

$119.99 USD
$119.99 USD
Sale Sold out
Female Rod End
Right Hand PHSB16

Female Rod End PHSB16, Right hand Works with 1" Shafts, they are marked PHSB16 with 1" inner diameter, the internal thread size is 1 1/4", Here is the interchange designation in every brand:

  • Item: PHSB16 Bearing
  • Type: Female Rod Ends
  • Thread Size: 1 1/4" UNF
  • Ball diameter: 1-7/8" inch
  • Quantity: One Bearing
  • Dynamic Load Rating: 60 KN
  • Static Load Rating: 101 KN

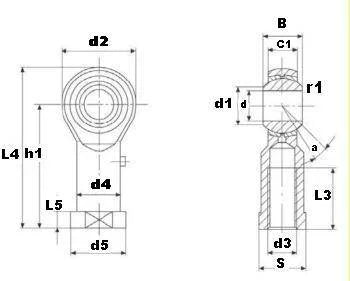

Dimensions (Inches)
 a
d B r1s C1 d1 d2 d3
UNF-2B		 h1 L3 L4 L5 d4 d5 S
1" 1-3/8" 0.5mm 1" 32.23mm 2-3/4" 1 1/4-12 4-1/8" 2-1/8" 5-1/2" 11.07mm 1-1/2" 1-3/4" 1-1/2" 14
