Female Rod End PHSB16L 1 Left hand Bearing

Female Rod End PHSB16L 1 Left hand Bearing

$119.99 USD
$119.99 USD
Sale Sold out
Female Rod End
Left Hand PHSB16L

Female Rod End PHSB16L, Left hand Works with 1" Shafts, they are marked PHSB16L with 1" inner diameter, the internal thread size is 1", Here is the interchange designation in every brand:

  • Item: PHSB16L Bearing
  • Type: Female Rod Ends
  • Thread Size: 1 1/4" UNF
  • Ball diameter: 1-7/8"
  • Quantity: One Bearing
  • Dynamic Load Rating: 60 KN
  • Static Load Rating: 101 KN

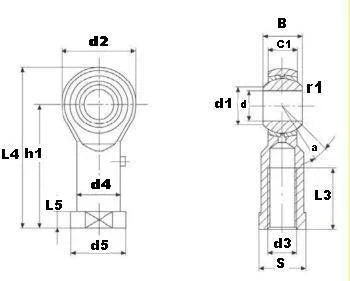

Dimensions (Inches)
 a
d B r1s C1 d1 d2 d3
UNF-2B		 h1 L3 L4 L5 d4 d5 S
1" 1-3/8" 0.5mm 1" 32.23mm 2-3/4" 1 1/4-12 4-1/8" 2-1/8" 5-1/2" 11.07mm 1-1/2" 1-3/4" 1-1/2" 14
