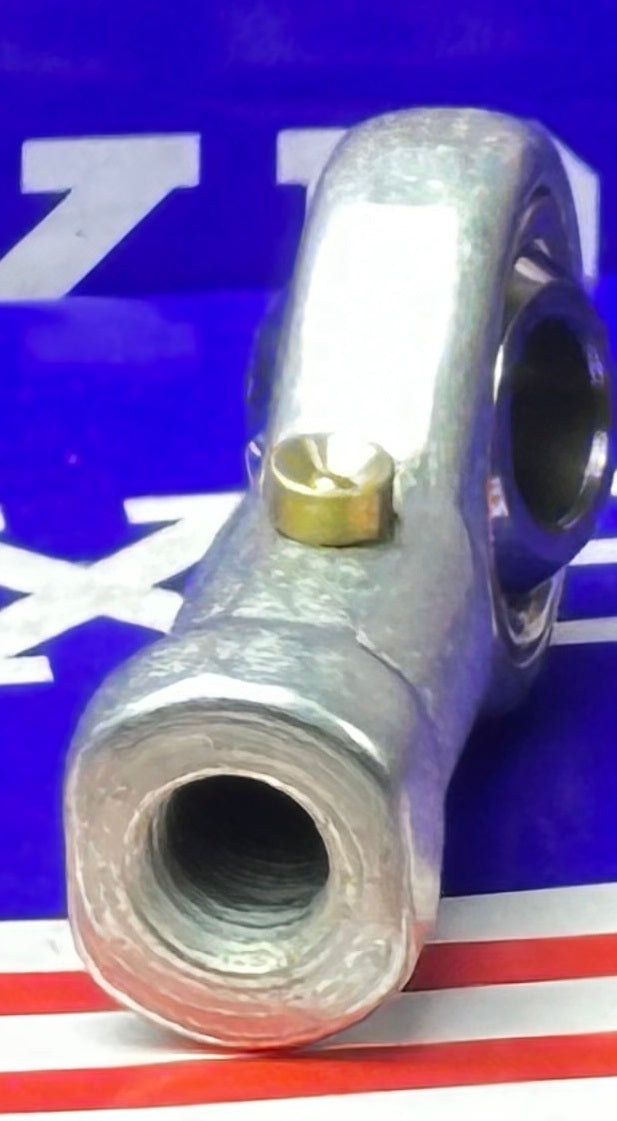

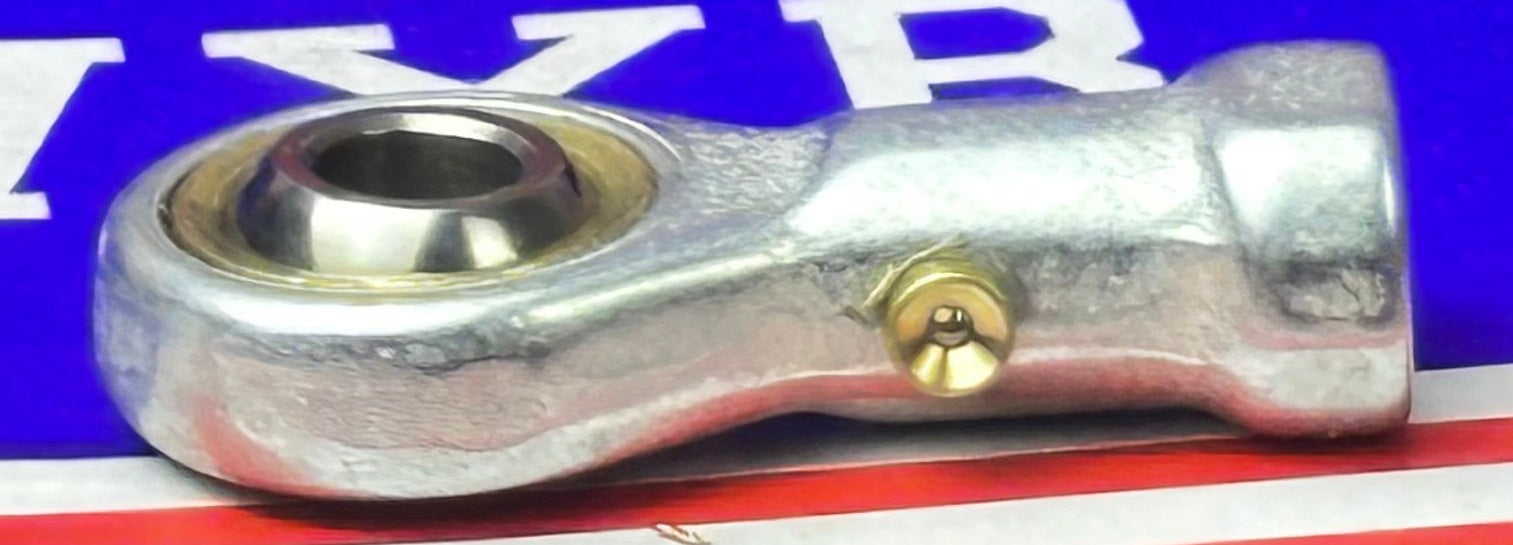

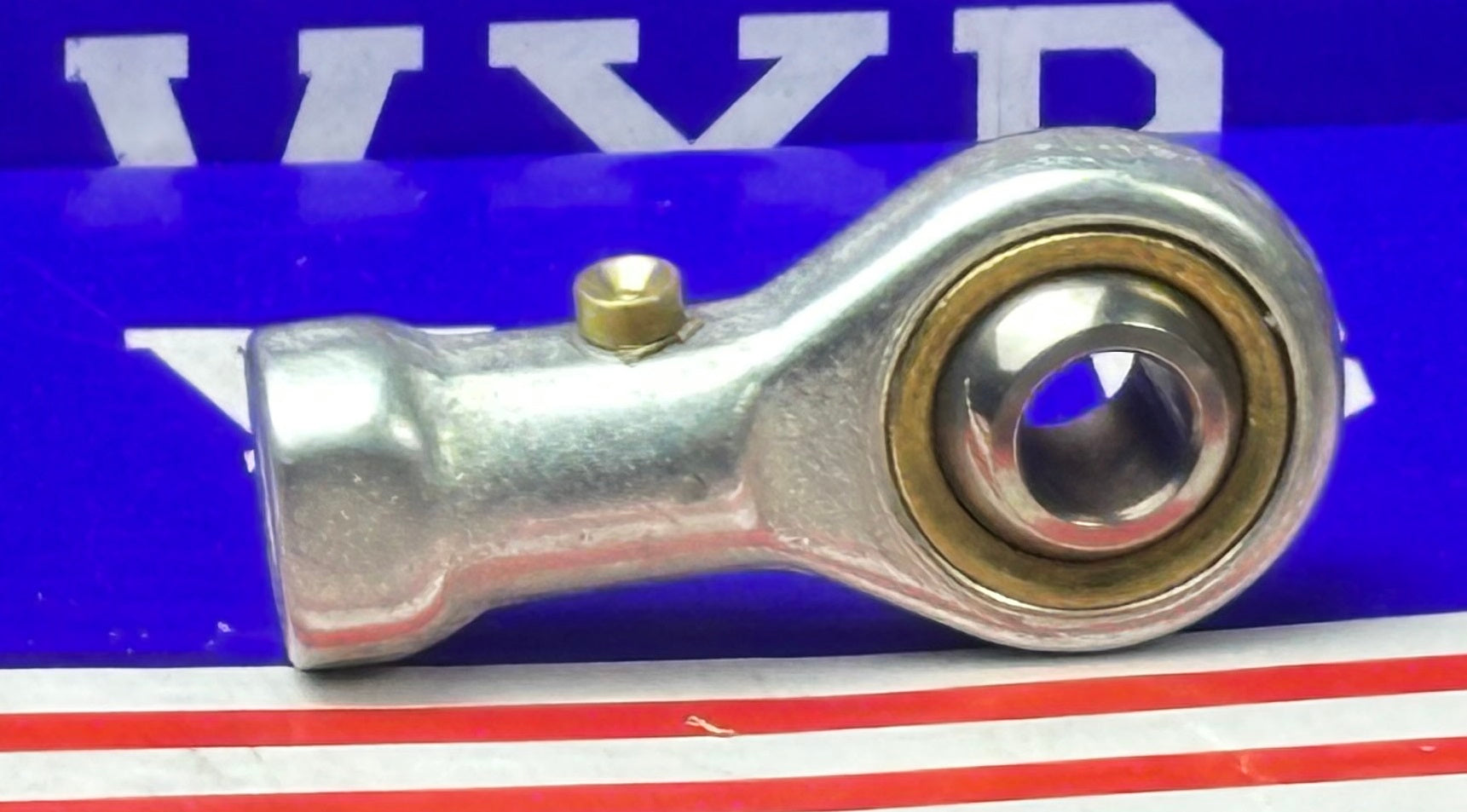

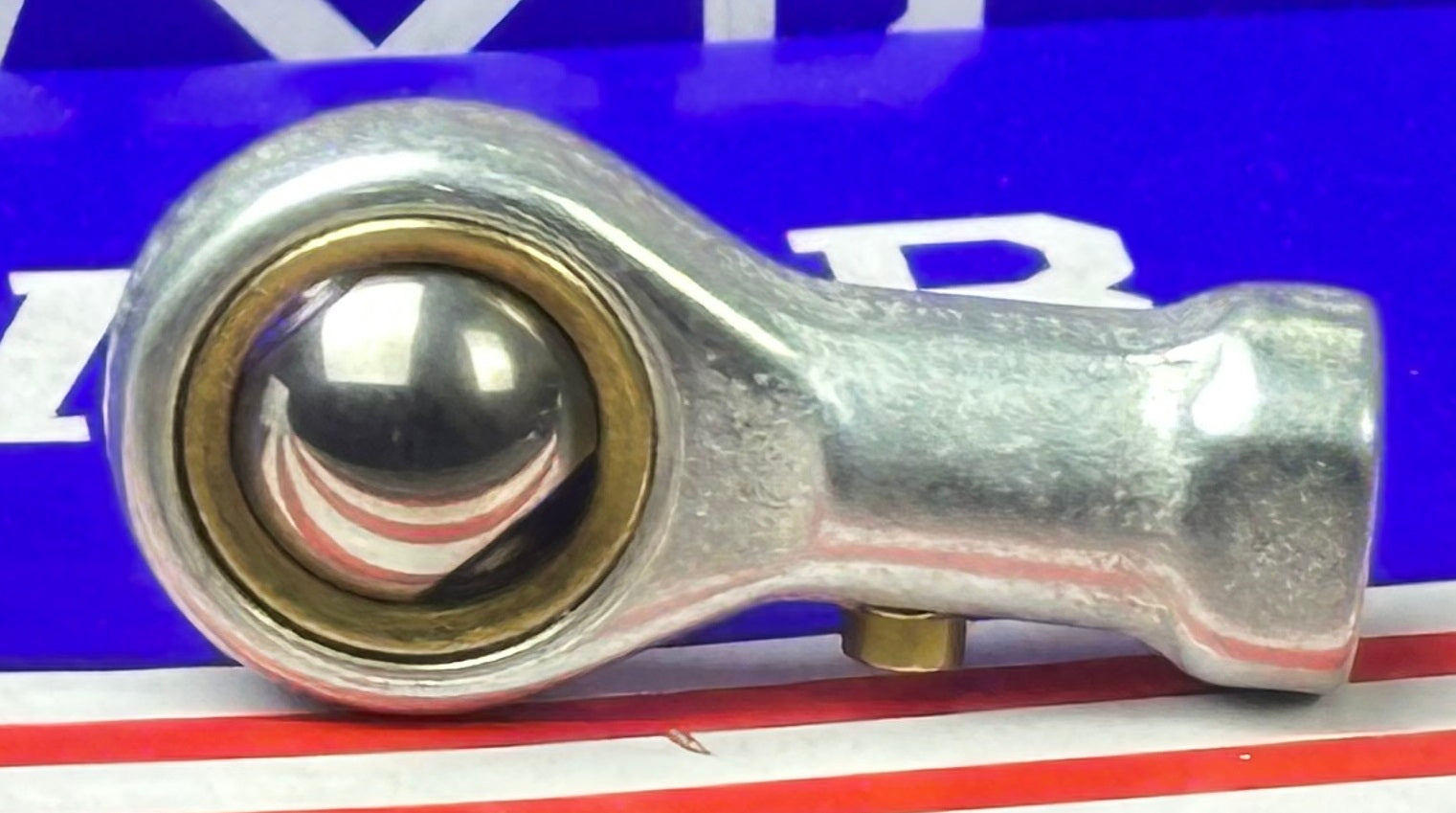

Female Rod End PHSB4, Right hand Works with 1/4" Shafts, they are marked PHSB4 with 1/4" inner diameter, the internal thread size is 1/4", Here is the interchange designation in every brand:
- Item: PHSB4 Bearing
- Type: Female Rod Ends
- Thread Size: 1/4" UNF
- Ball diameter: 1/2"
- Quantity: One Bearing
- Dynamic Load Rating: 4.5 KN
- Static Load Rating: 7.7 KN
|
Dimensions (Inches)
|
a |
| d |
B |
r1s |
C1 |
d1 |
d2 |
d3
UNF 2B |
h1 |
L3 |
L4 |
L5 |
d4 |
d5 |
S |
| 1/4" |
3/8" |
0.5mm |
9/32" |
9.02mm |
3/4" |
1/4-28 |
1-5/16" |
3/4" |
1-11/16" |
3/16" |
3/8" |
15/32" |
3/8" |
13 |
|
