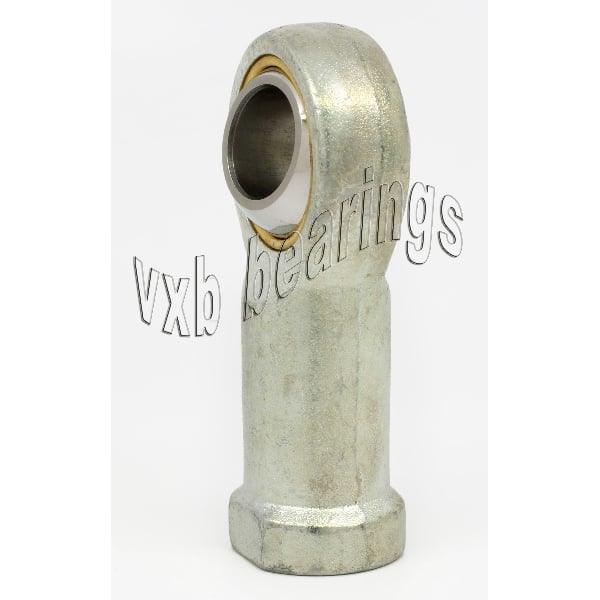

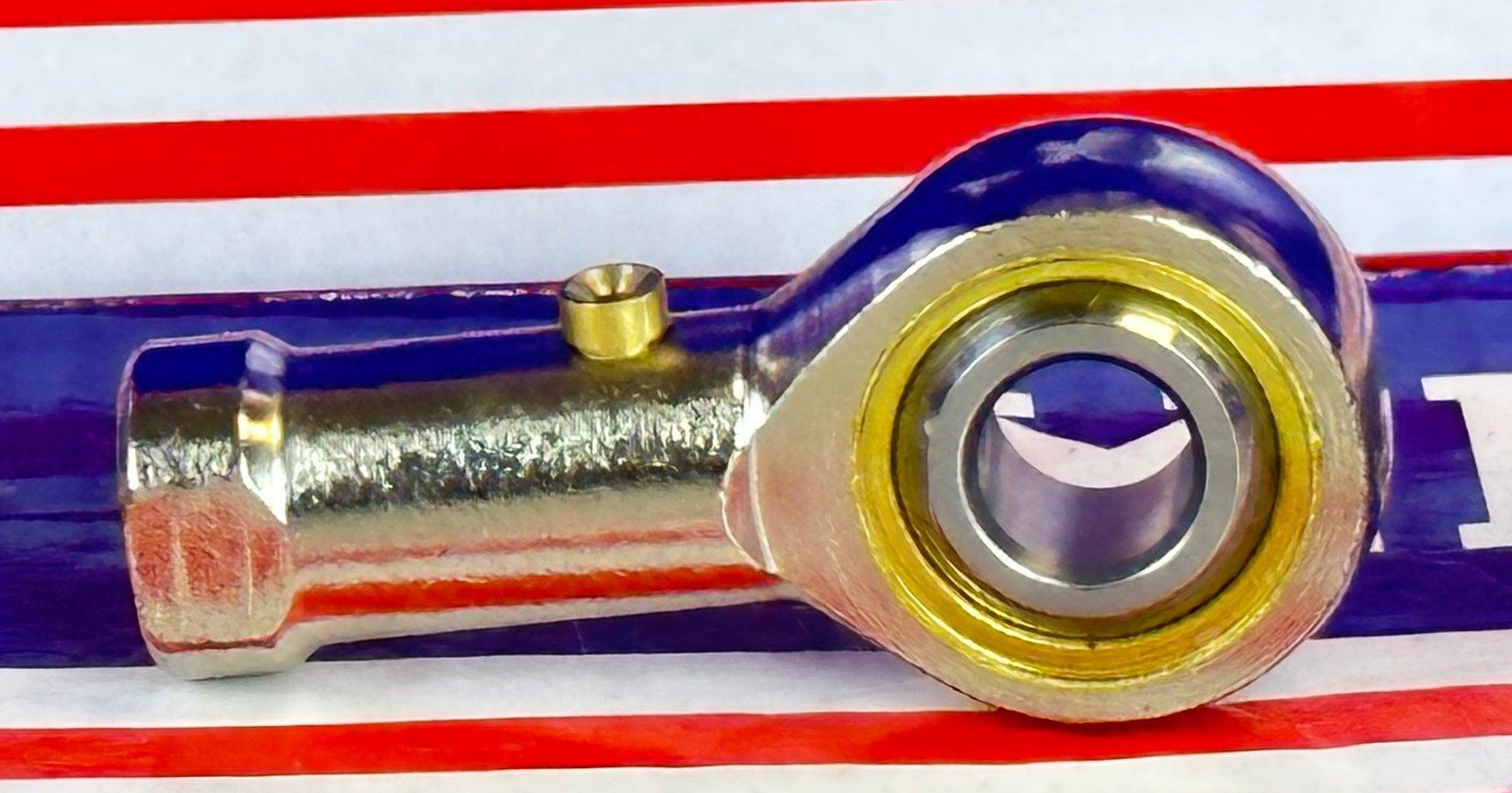

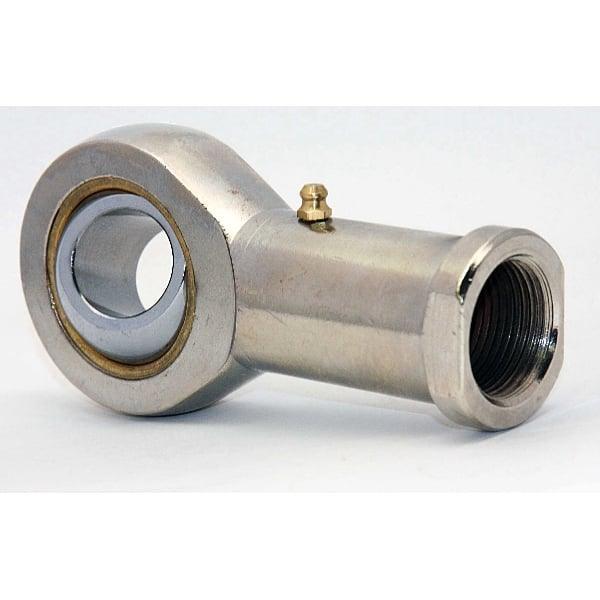

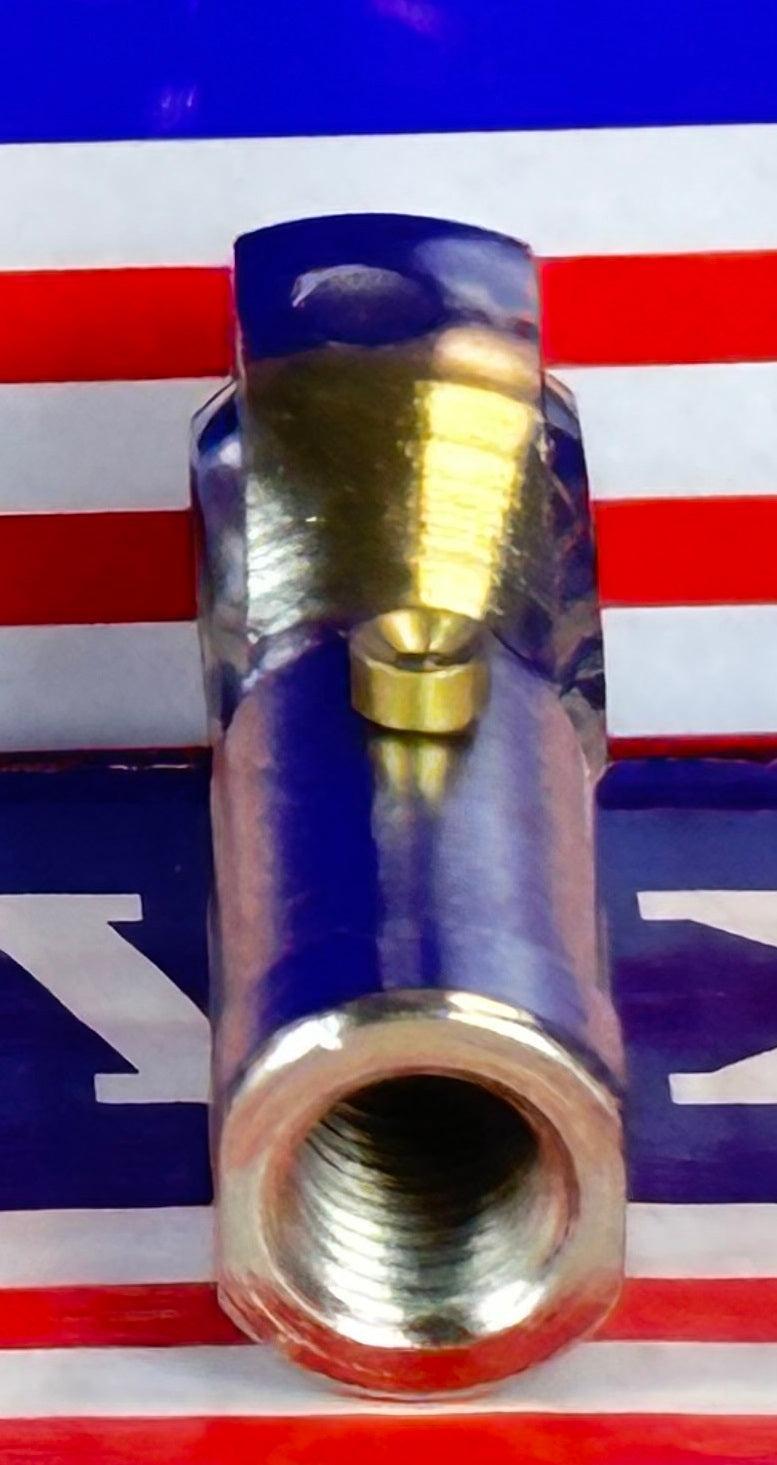

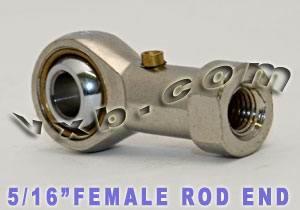

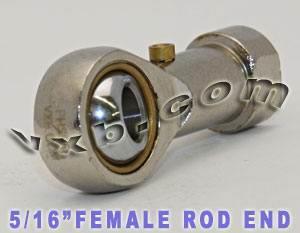

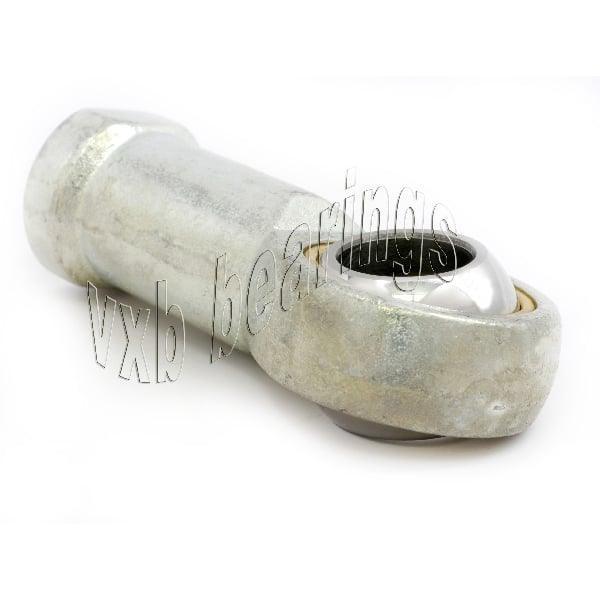

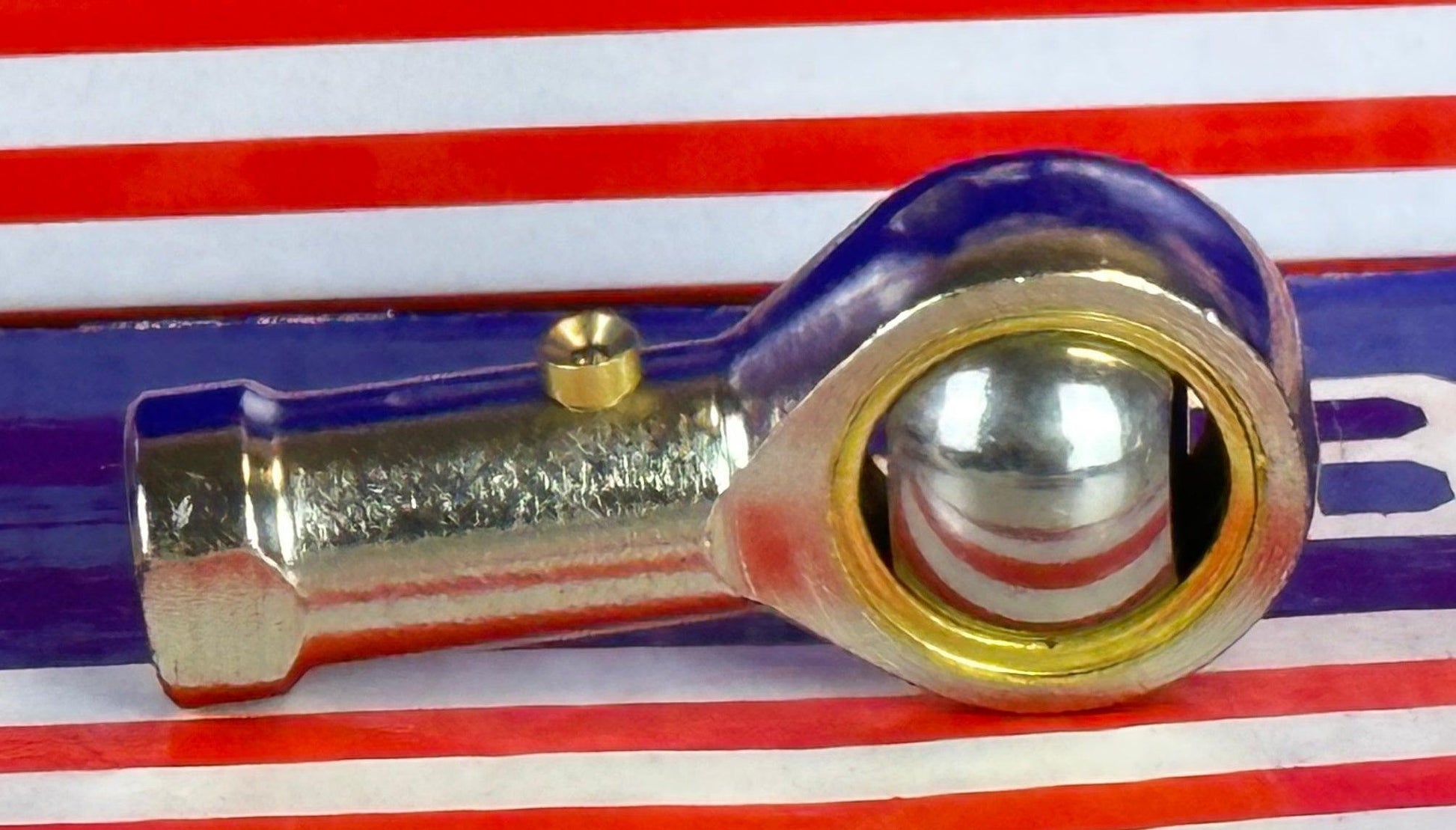

Female Rod End PHSB5L, left hand Works with 5/16" Shafts, they are marked PHSB5L with 5/16" inner diameter, the internal thread size is 5/16", Here is the interchange designation in every brand:
- Item: PHSB5L Bearing
- Type: Female Rod Ends
- Thread Size: 5/16" UNF
- Ball diameter: 5/8"
- Quantity: One Bearing
- Dynamic Load Rating: 6.9 KN
- Static Load Rating: 8.4 KN

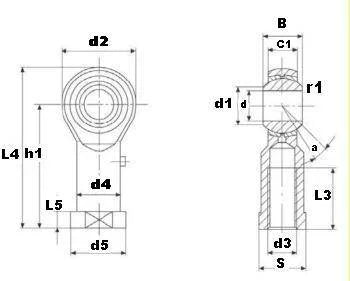

| Dimensions (Inches) |
a |
| d |
B |
r1s |
C1 |
d1 |
d2 |
d3
UNF 2B |
h1 |
L3 |
L4 |
L5 |
d4 |
d5 |
S |
| 5/16" |
7/16" |
0.5mm |
11/32" |
11.35mm |
7/8" |
5/16-24 |
1-3/8" |
3/4" |
1-13/16" |
3/16" |
7/16" |
1/2" |
7/16" |
10 |
|
