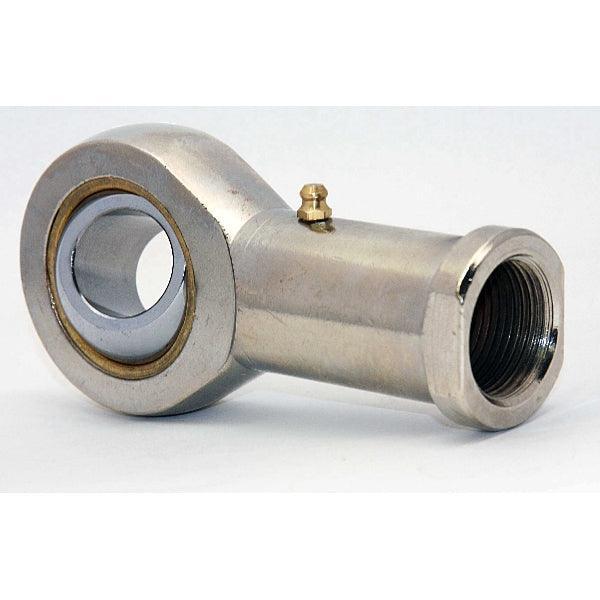

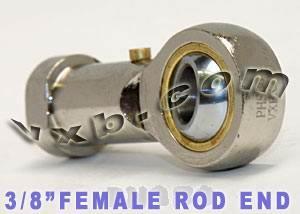

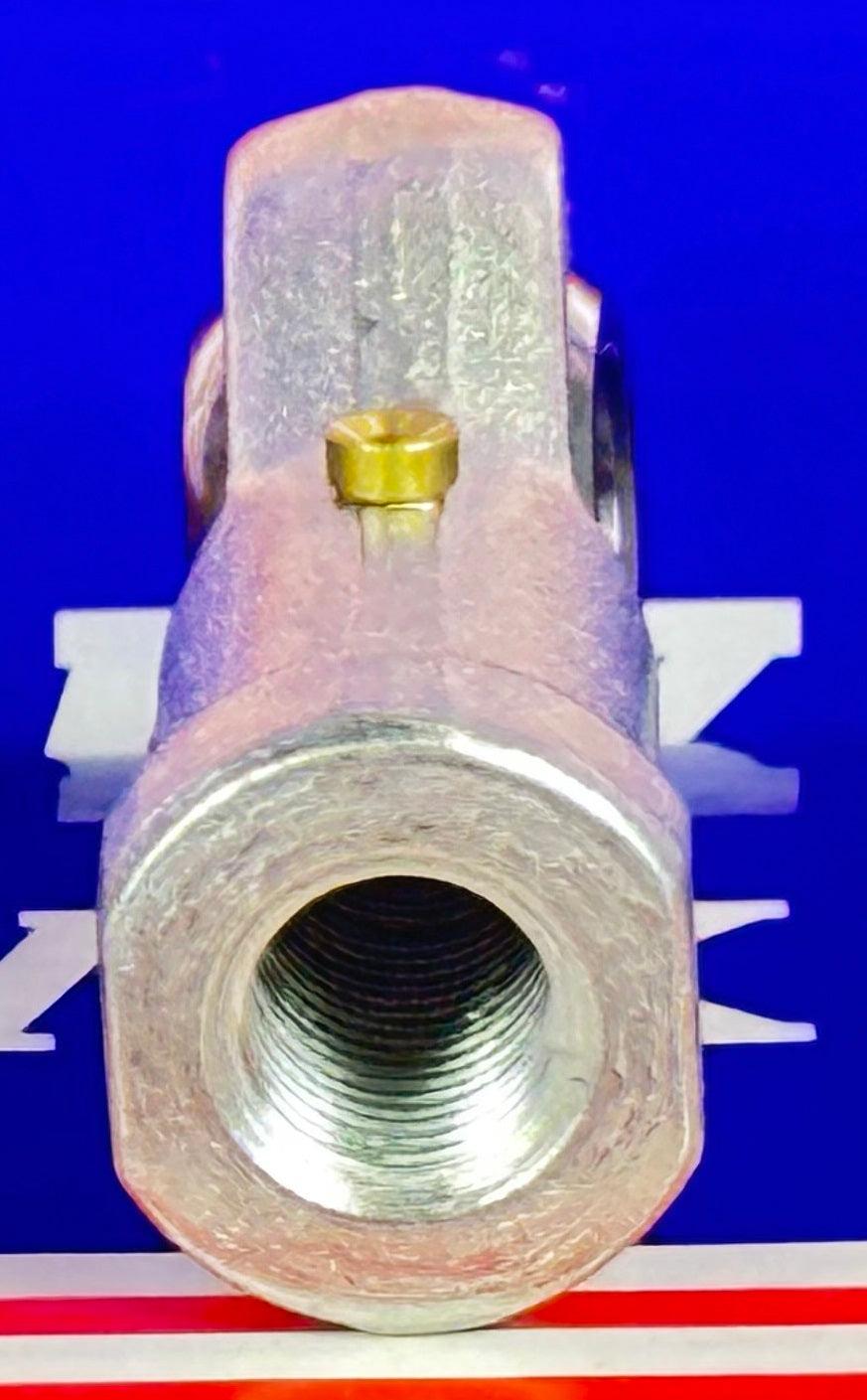

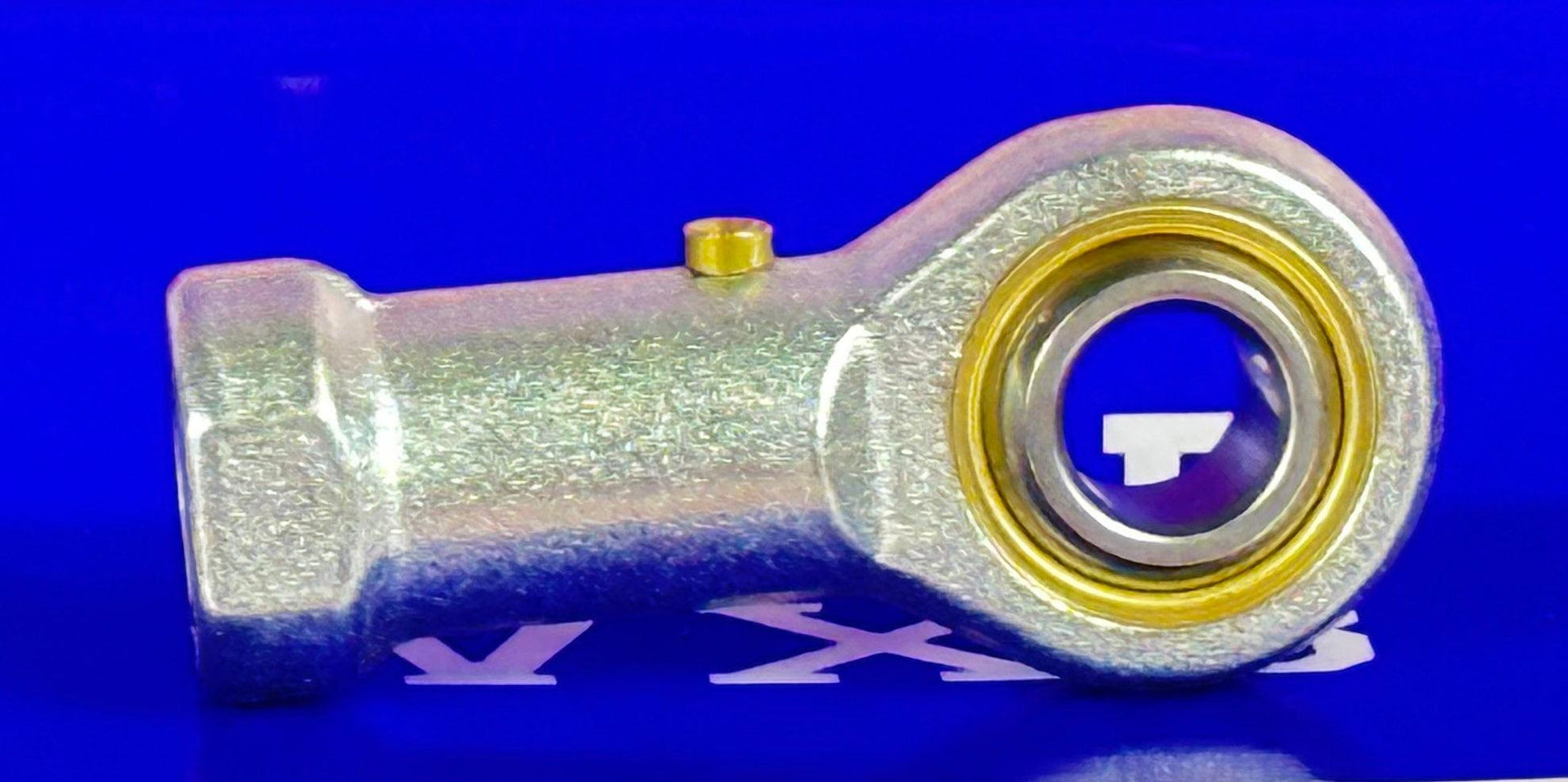

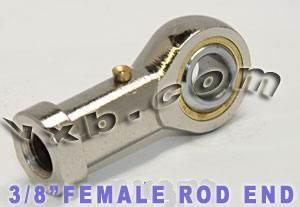

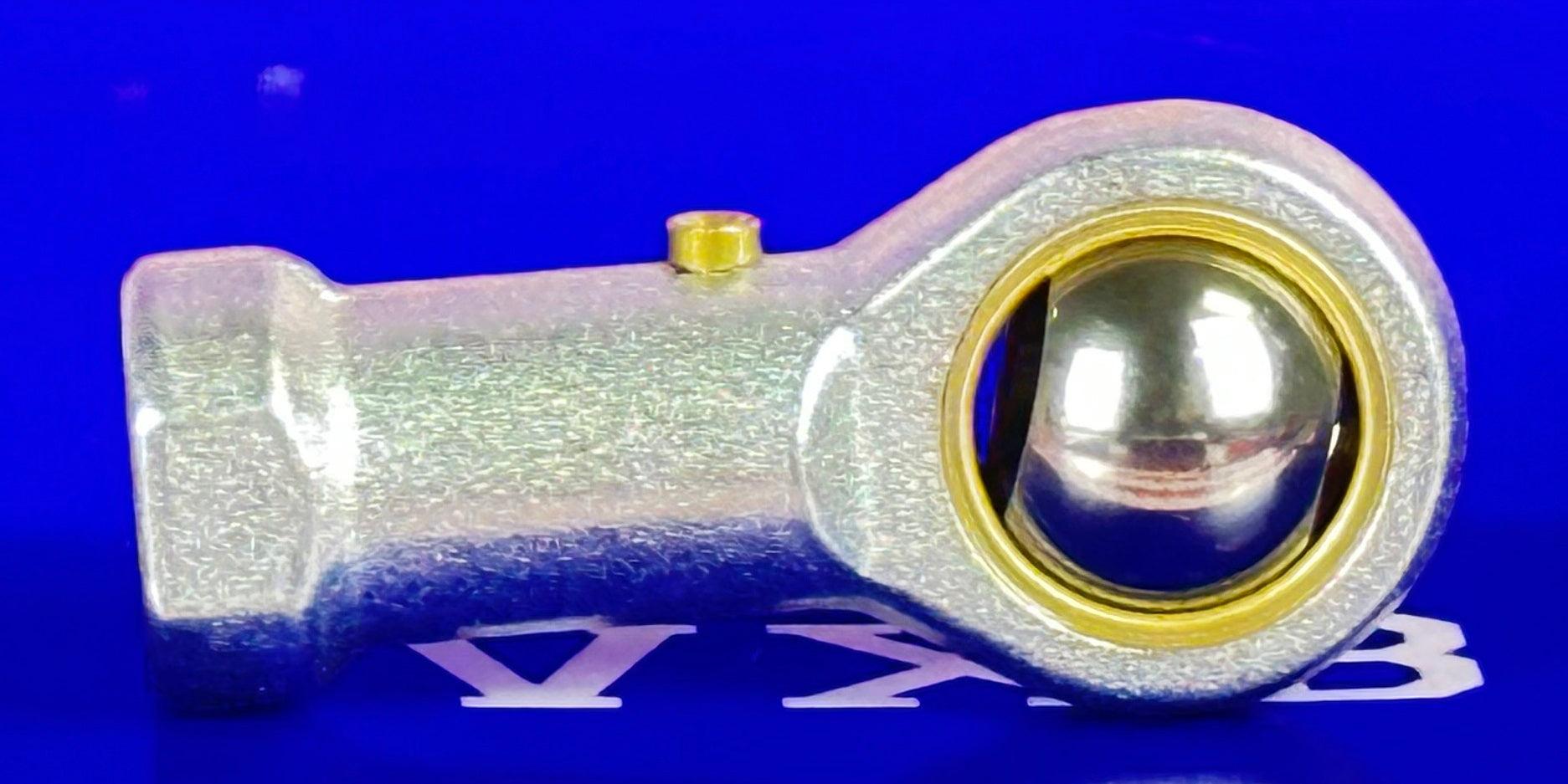

Female Rod End PHSB6, Right hand Works with 3/8" Shafts, they are marked PHSB6 with 3/8" inner diameter, the internal thread size is 3/8", Here is the interchange designation in every brand:
- Item: PHSB6 Bearing
- Type: Female Rod Ends
- Thread Size: 3/8" UNF
- Ball diameter: 23/32"
- Quantity: One Bearing
- Dynamic Load Rating: 9.4 KN
- Static Load Rating: 10 KN

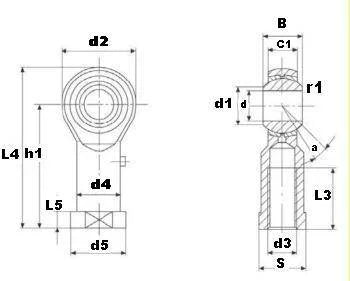

| Dimensions (Inches) |
a |
| d |
B |
r1s |
C1 |
d1 |
d2 |
d3
UNF 2B |
h1 |
L3 |
L4 |
L5 |
d4 |
d5 |
S |
| 3/8" |
1/2" |
0.5mm |
13/32" |
13.13mm |
1" |
3/8-24 |
1-5/8" |
15/16" |
2-1/8" |
1/4" |
9/16" |
11/16" |
9/16" |
9 |
|
