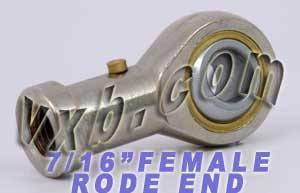

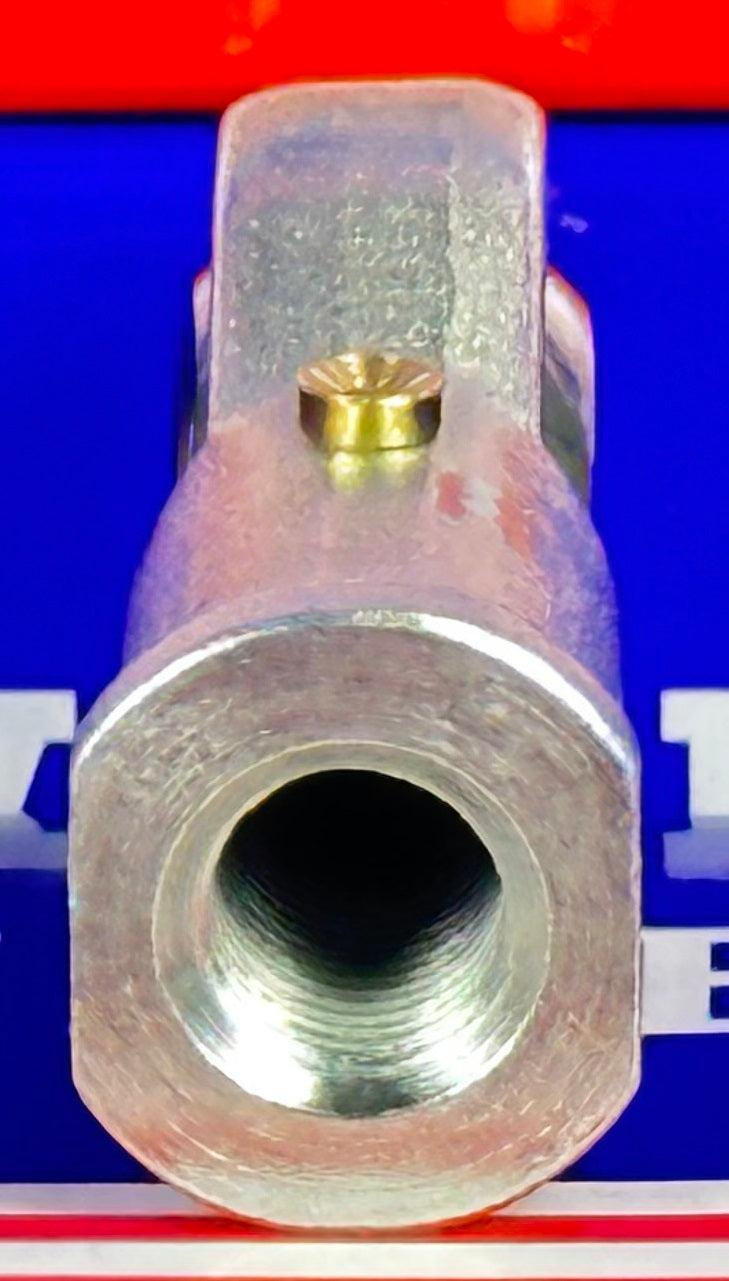

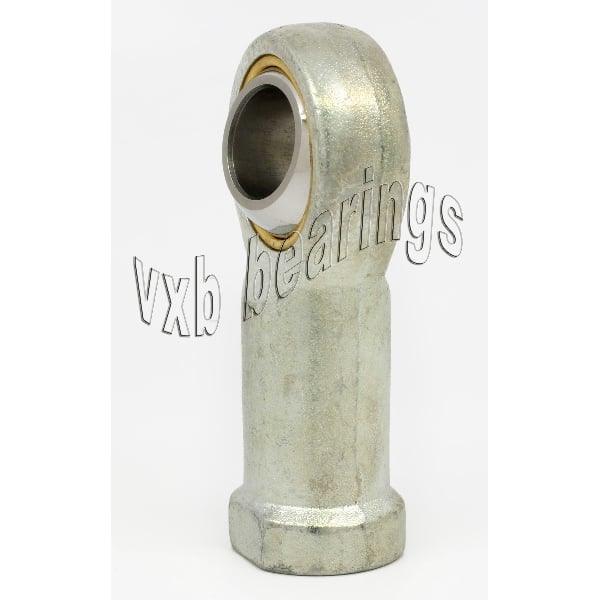

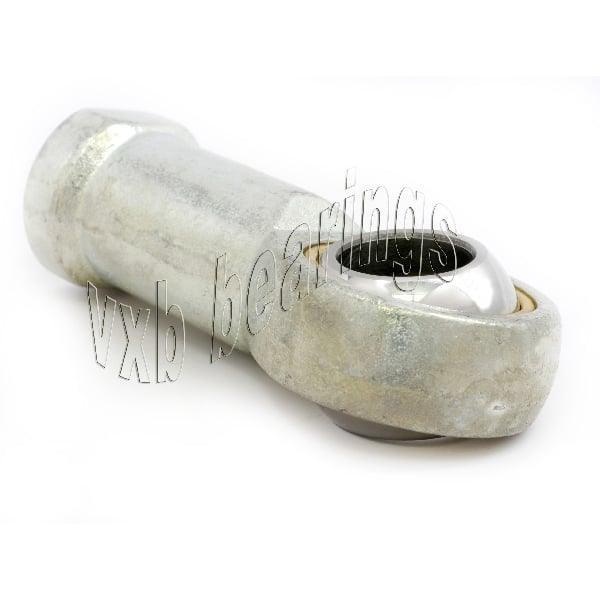

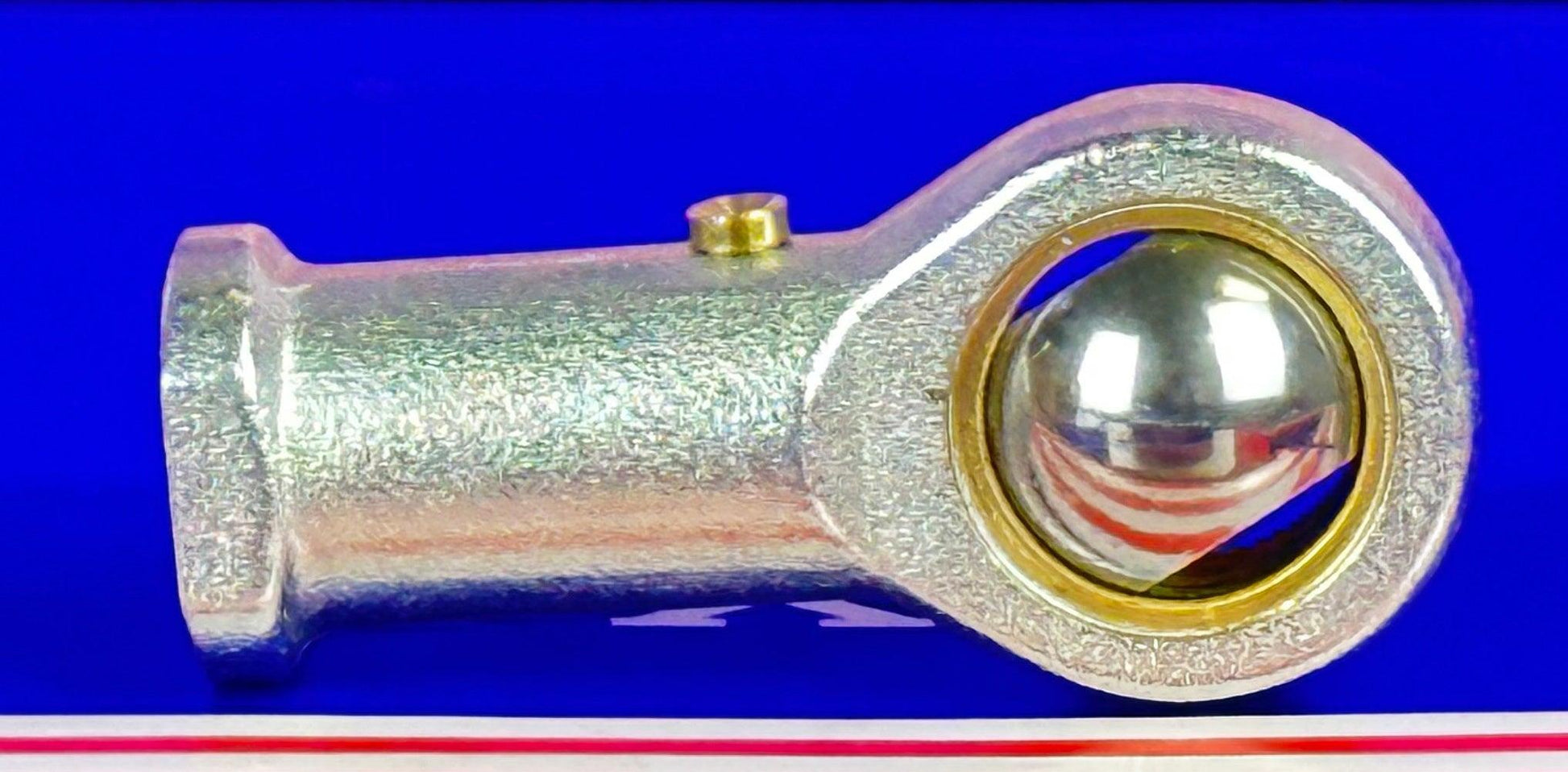

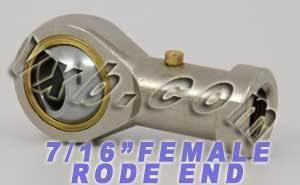

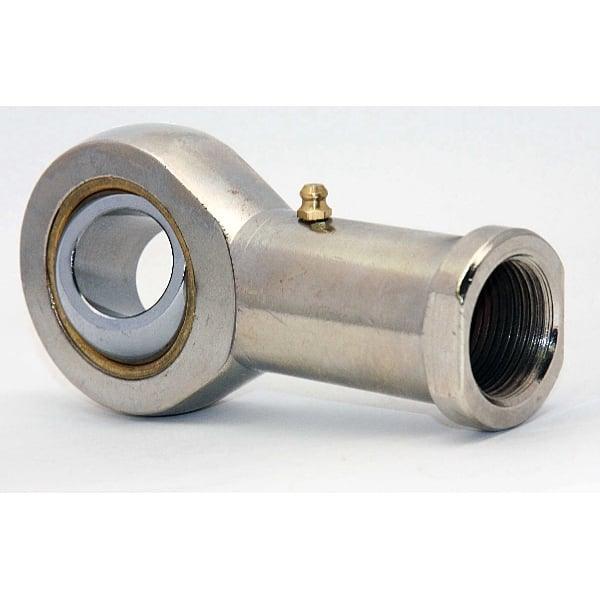

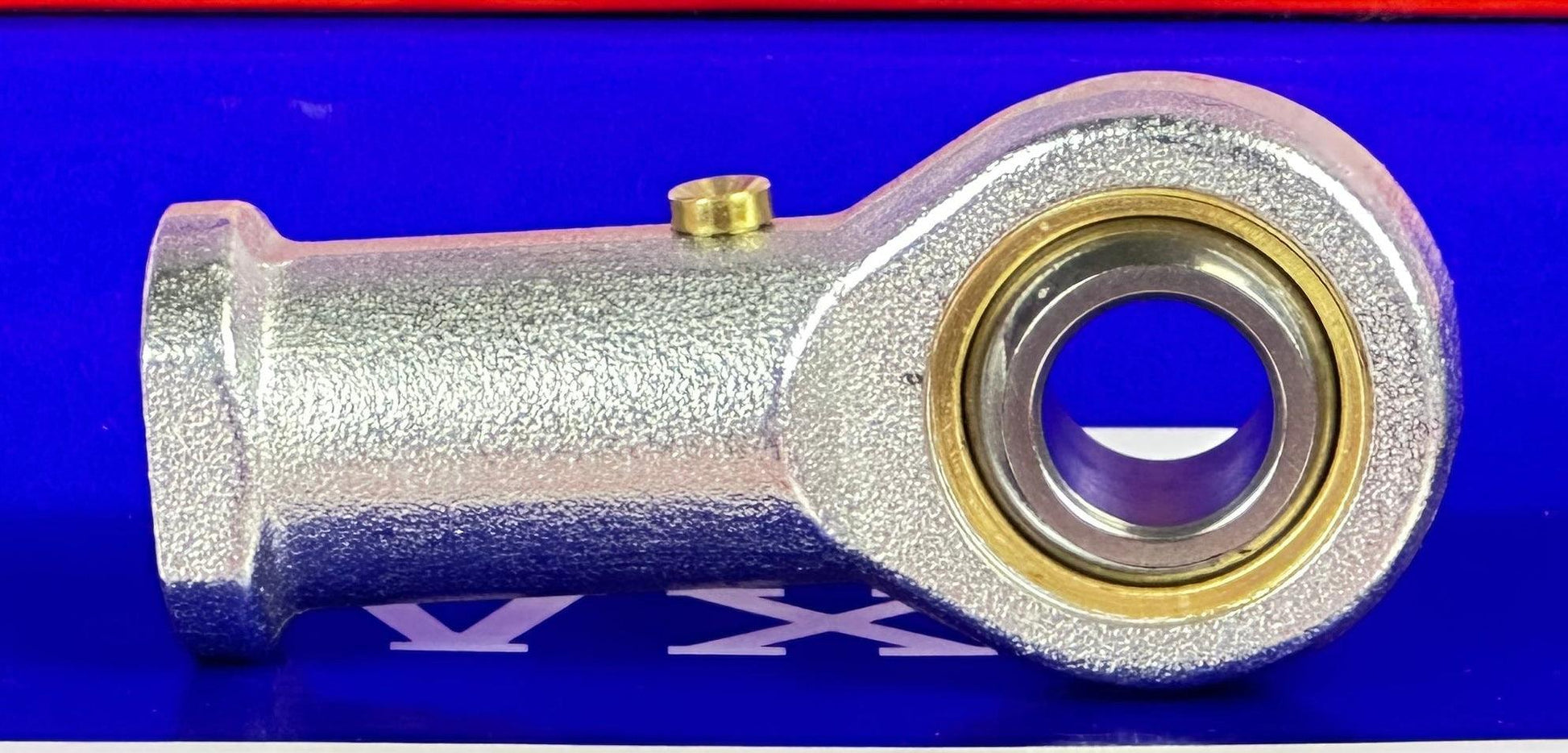

Female Rod End PHSB7, Right hand Works with 7/16" Shafts, they are marked PHSB7 with 7/16" inner diameter, the internal thread size is 7/16", Here is the interchange designation in every brand:
- Item: PHSB7 Bearing
- Type: Female Rod Ends
- Thread Size: 7/16" UNF
- Quantity: One Bearing
- Dynamic Load Rating: 1,150 KGF
- Static Load Rating: 2,730 KGF

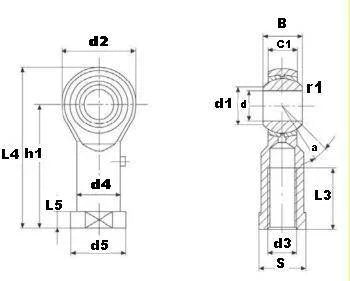

| Dimensions (Inches) |
|---|
| d |
Thread S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 7/16" |
7/16"-20UNF |
1-1/8" |
7/16" |
9/16" |
0.586" |
2-3/8" |
1-13/16" |
1-1/16" |
5/8" |
|
