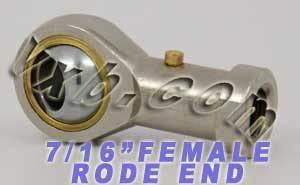

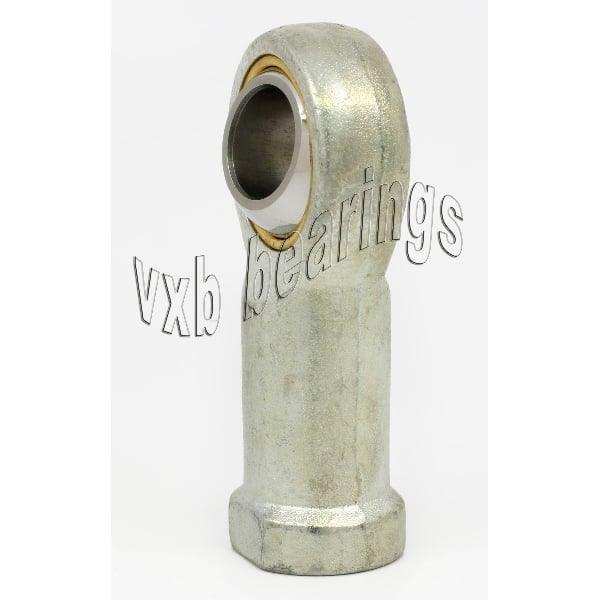

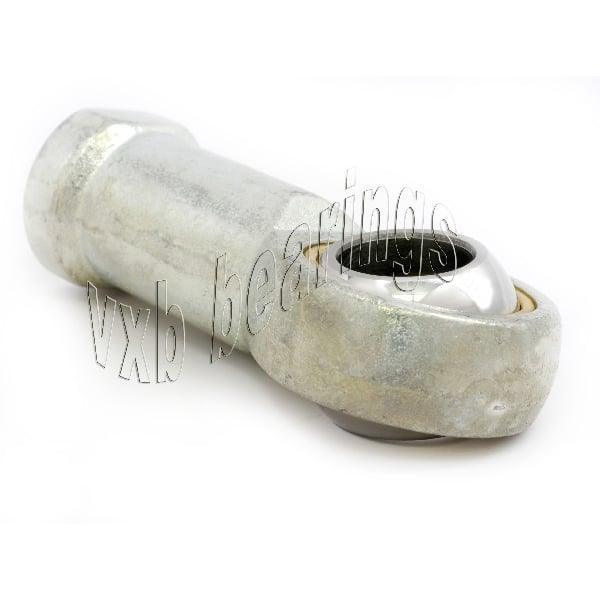

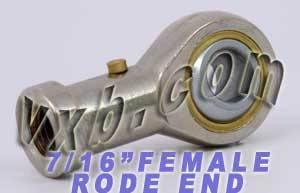

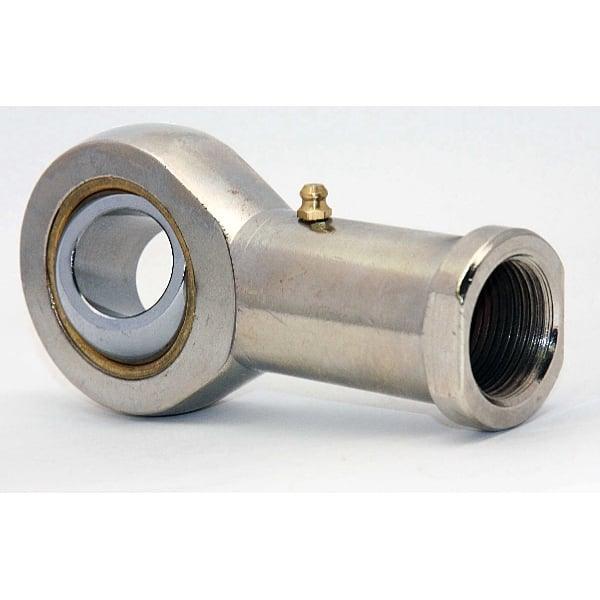

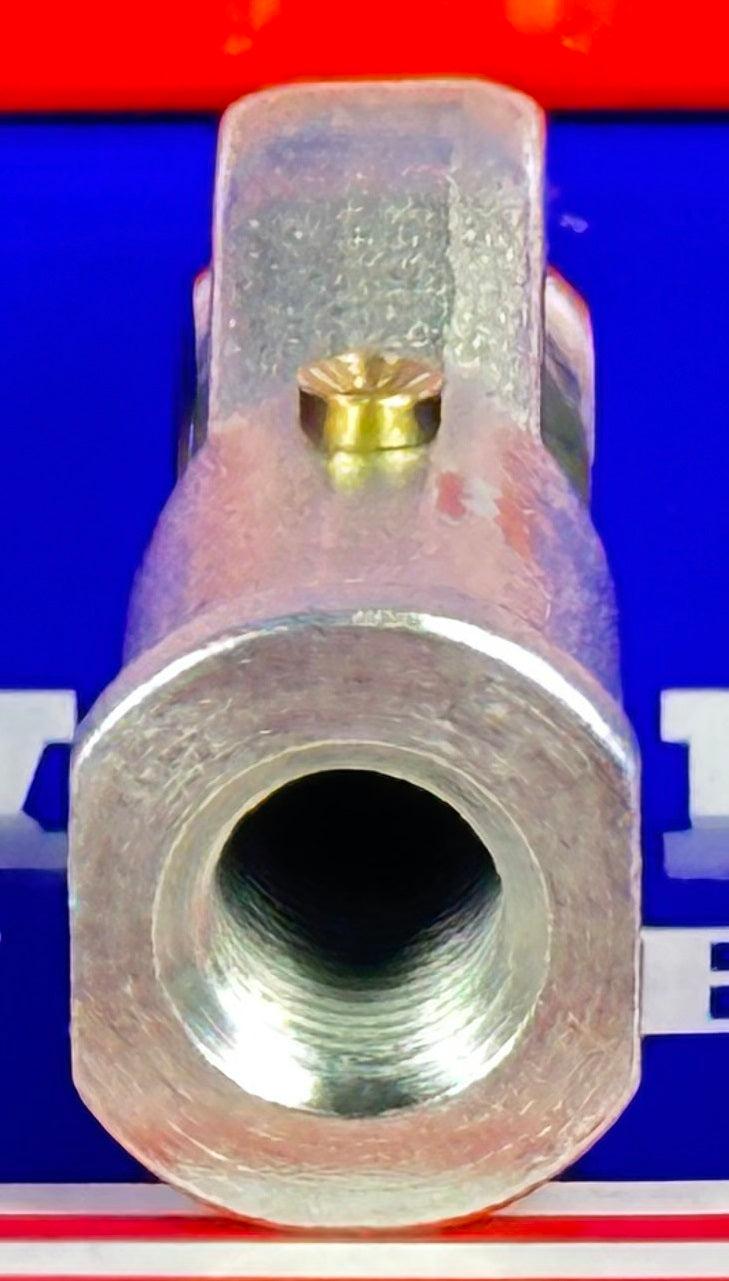

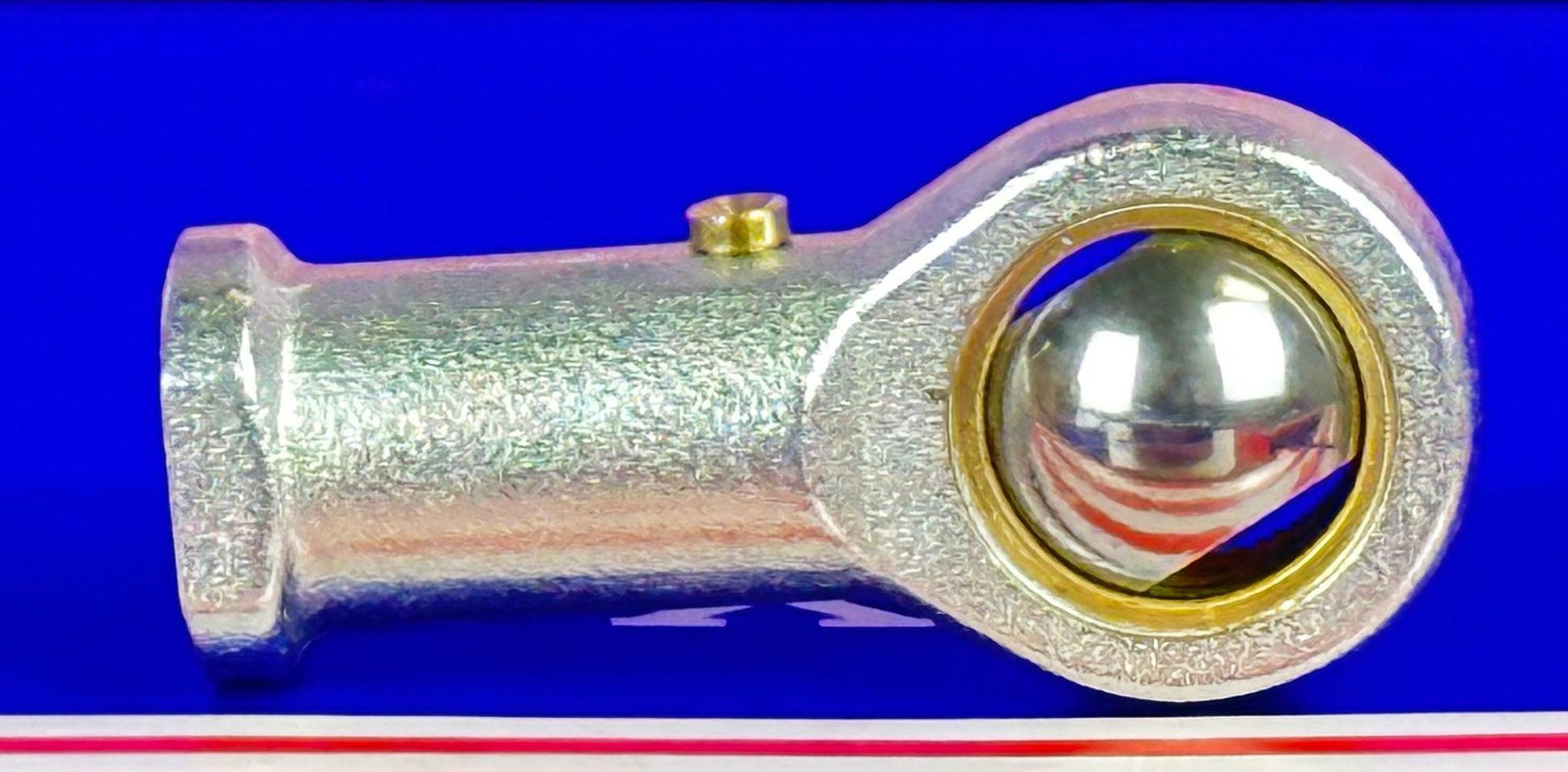

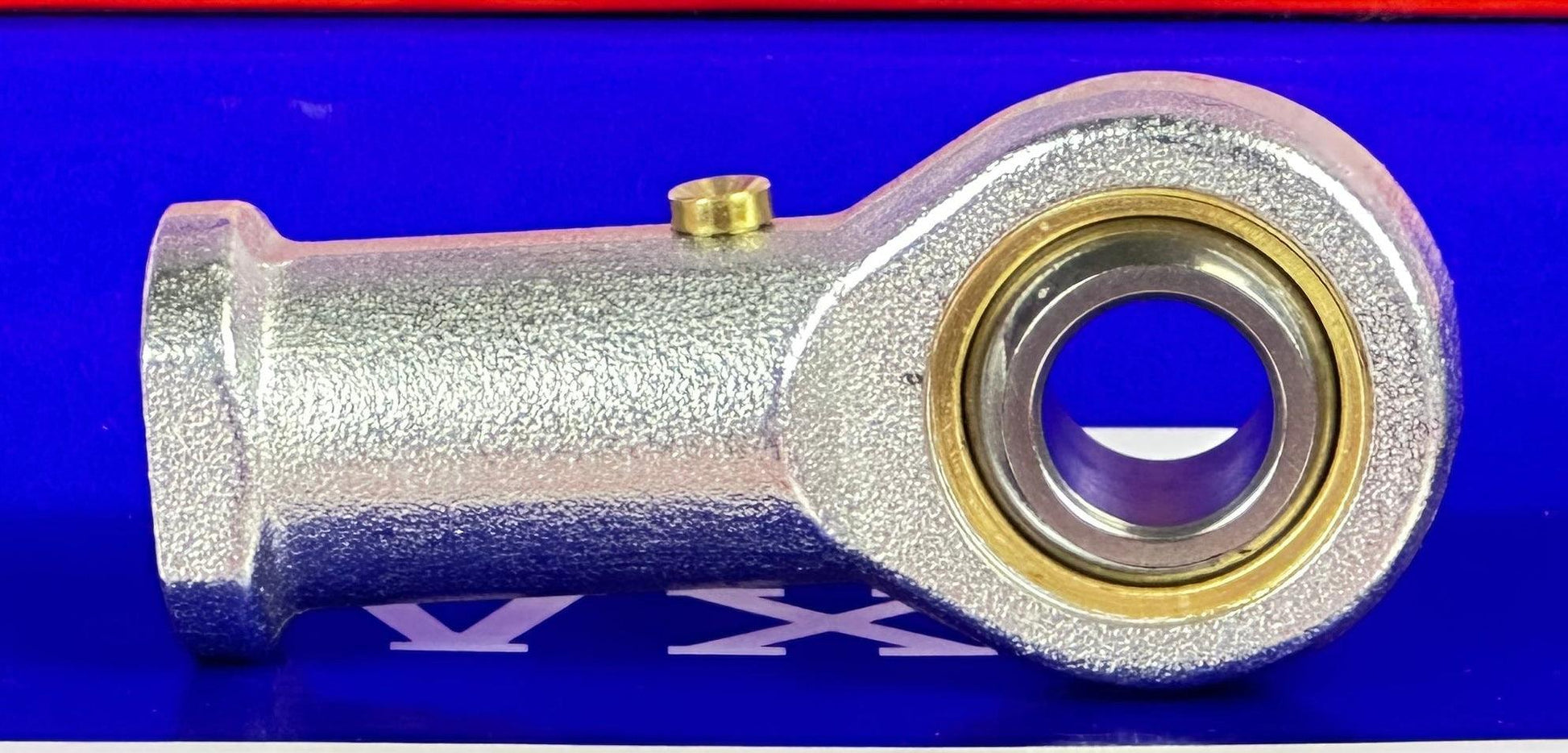

Female Rod End PHSB7L, left hand Works with 7/16" Shafts, they are marked PHSB7L with 7/16" inner diameter, the internal thread size is 7/16" inch, Here is the interchange designation in every brand:
- Item: PHSB7L Bearing
- Type: Female Rod Ends
- Thread Size: 7/16" UNF
- Quantity: One Bearing
- Dynamic Load Rating: 1,150 KGF
- Static Load Rating: 2,730 KGF

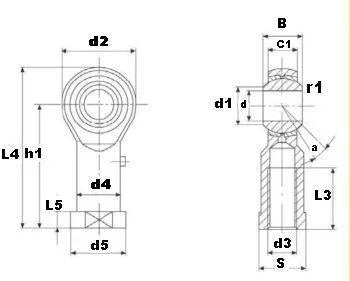

| Dimensions (Inches) |
|---|
| d |
Thread S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 7/16" |
7/16"-20UNF |
1-1/8" |
7/16" |
9/16 |
0.586 |
2-3/8 |
1-13/16" |
1-1/16" |
5/8" |
|
