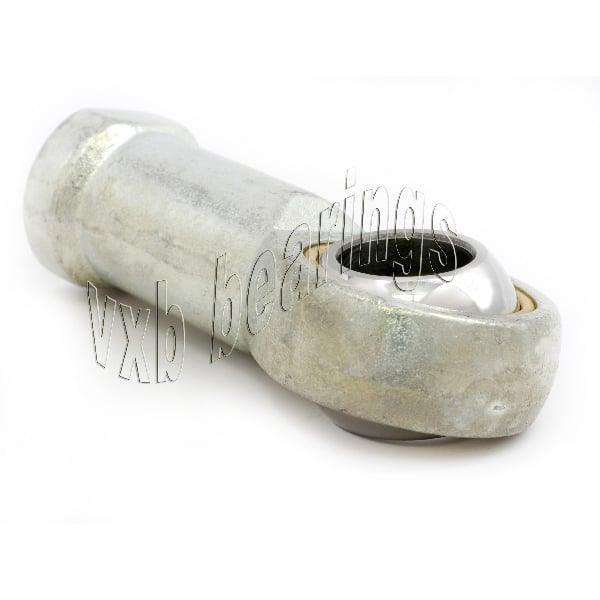

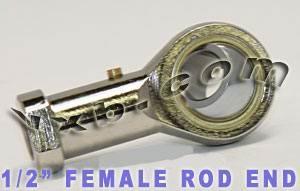

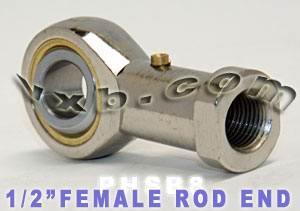

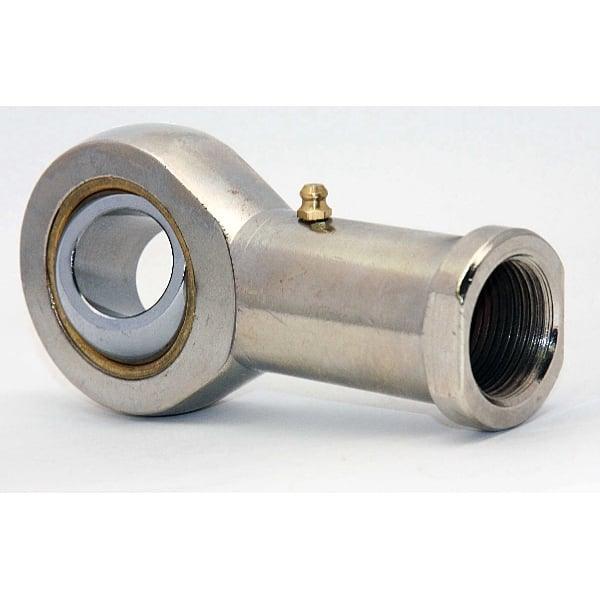

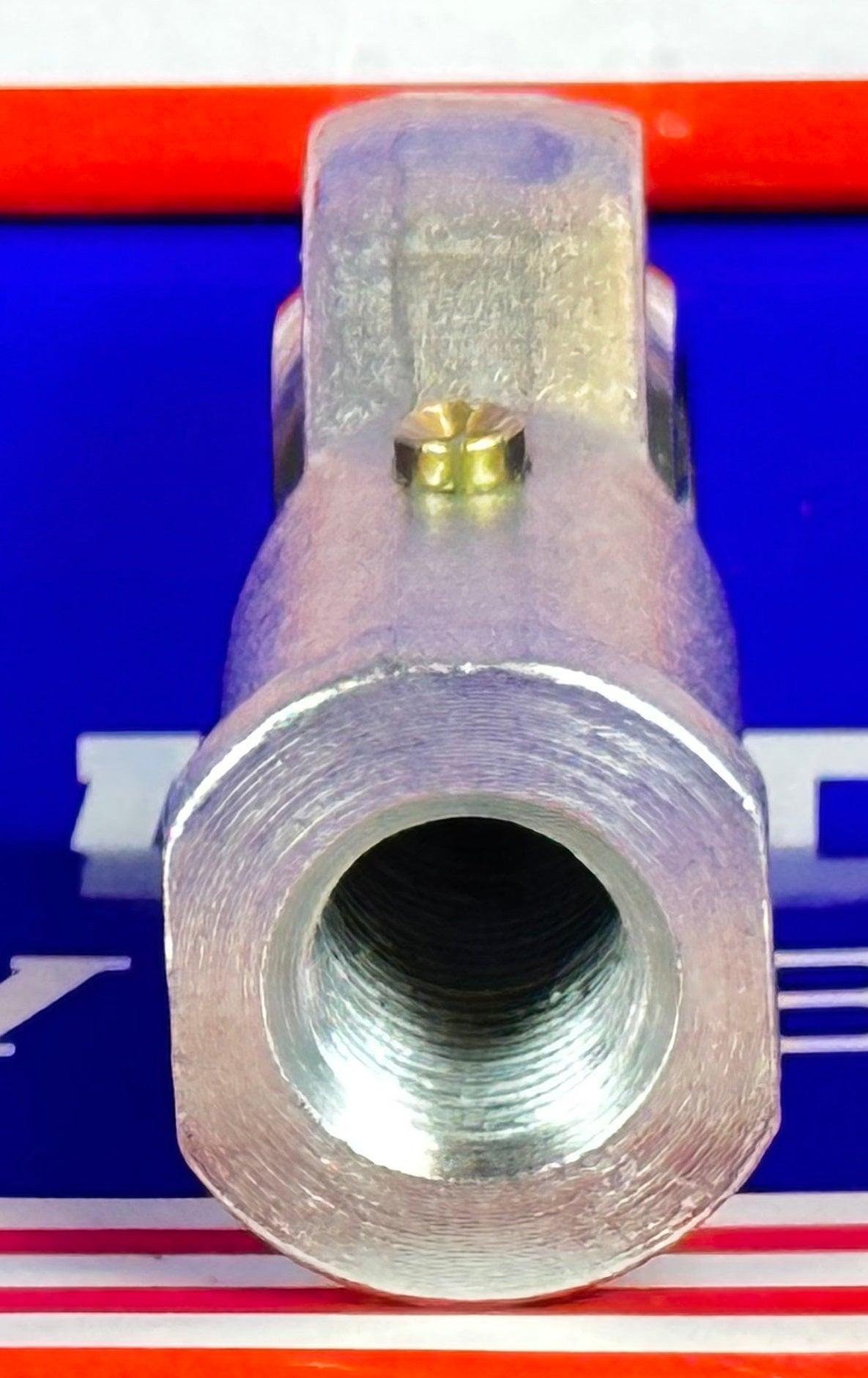

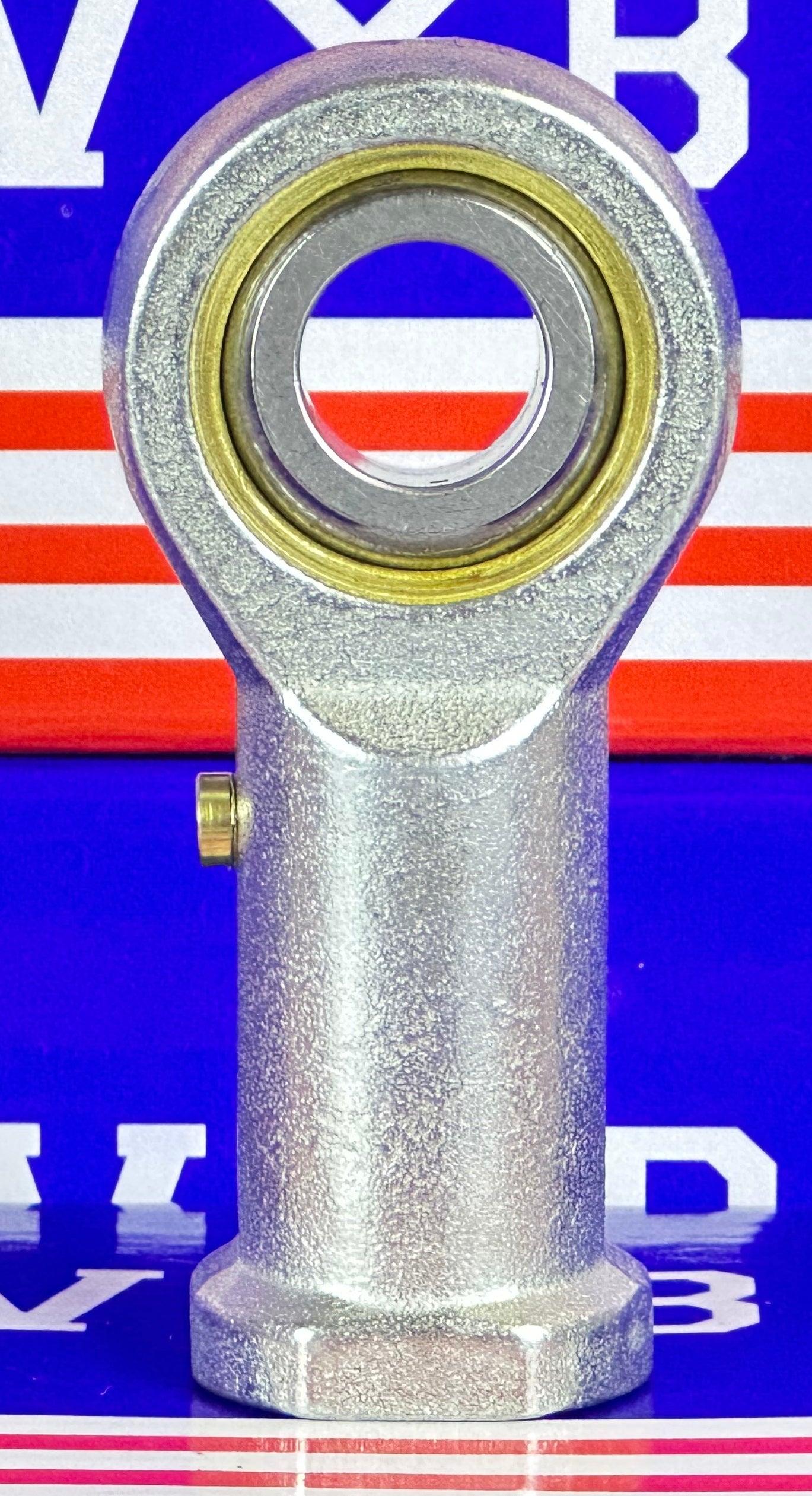

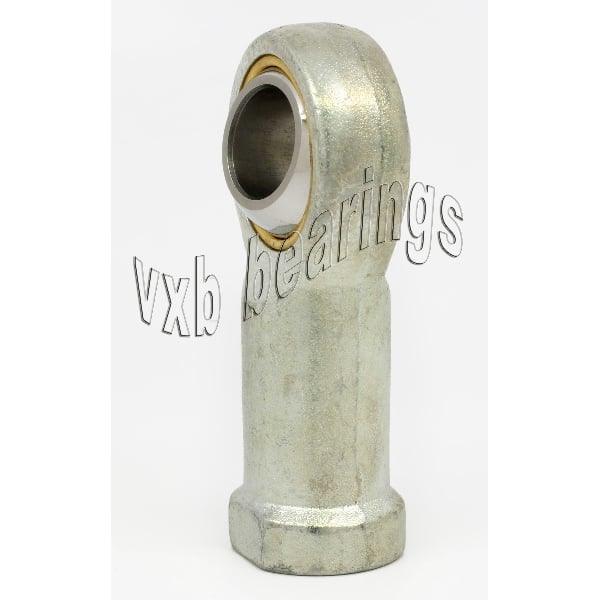

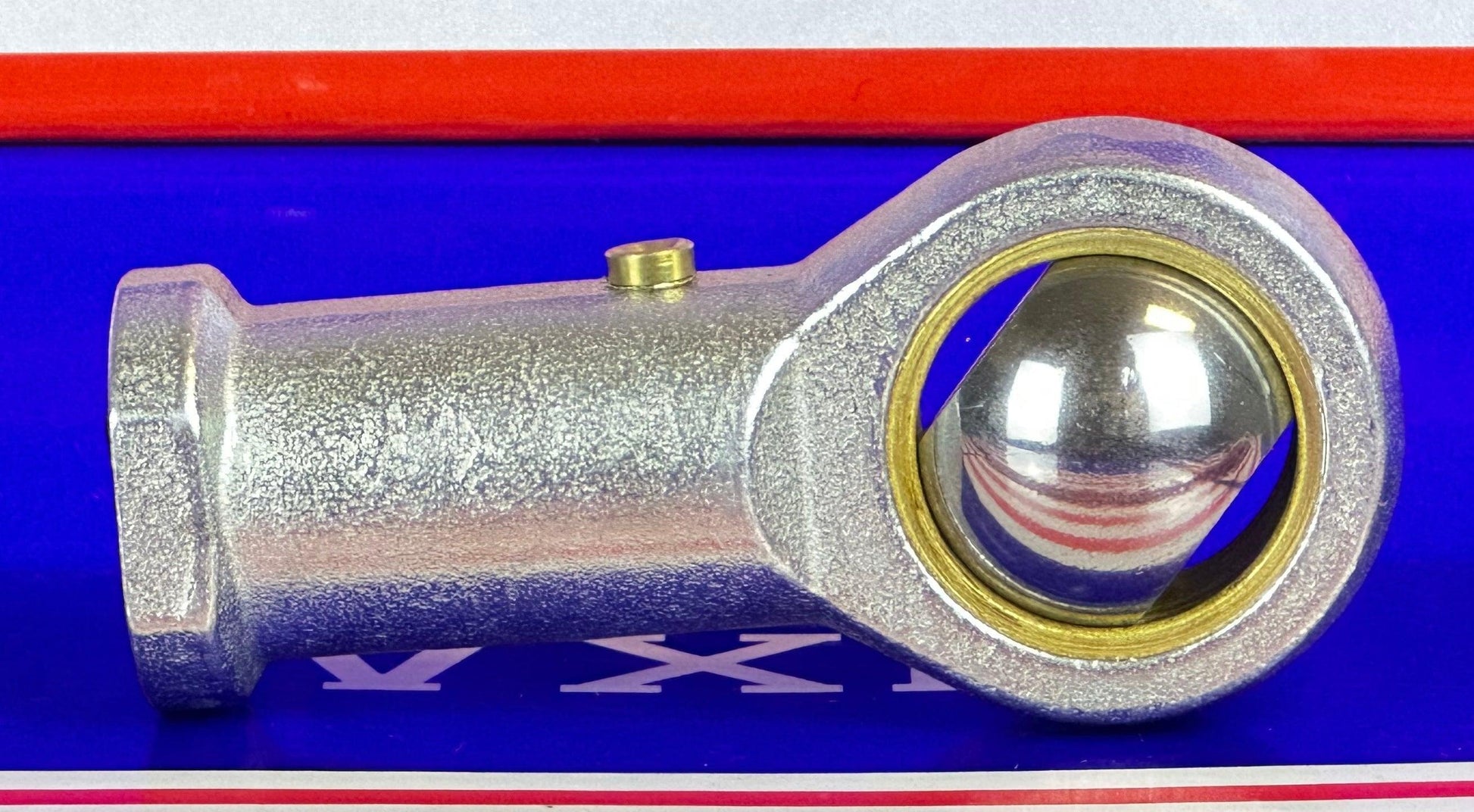

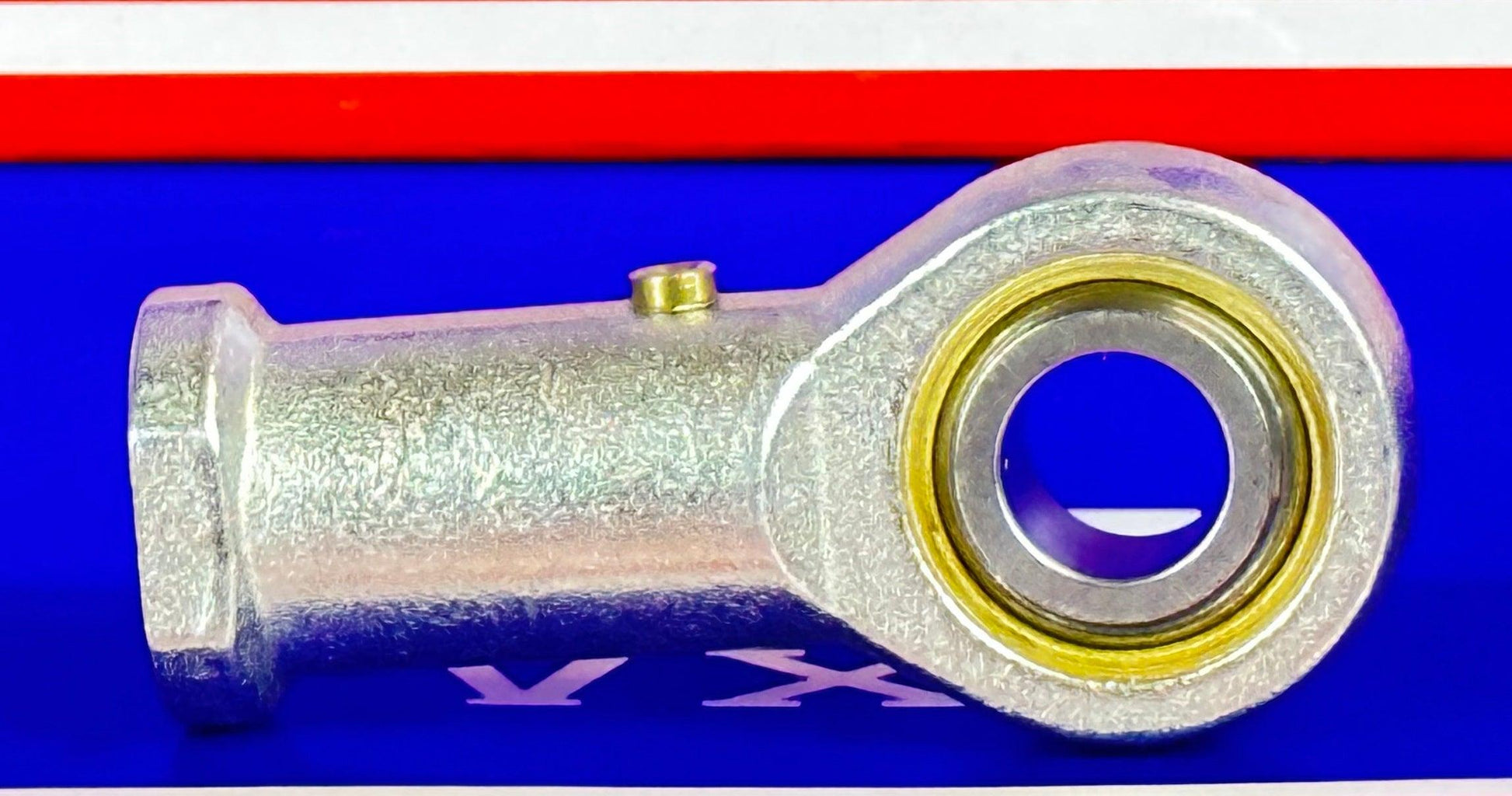

Female Rod End PHSB8, Right hand Works with 1/2" Shafts, they are marked PHSB8 with 1/2" inner diameter, the internal thread size is 1/2", Here is the interchange designation in every brand:
- Item: PHSB8 Bearing
- Type: Female Rod Ends
- Thread Size: 1/2" UNF
- Ball diameter: 15/16"
- Quantity: One Bearing
- Dynamic Load Rating: 15 KN
- Static Load Rating: 19 KN

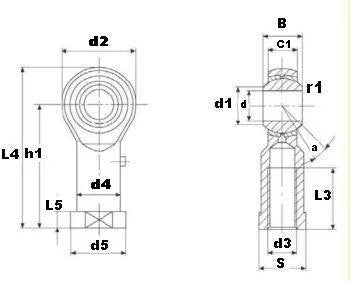

| Dimensions (Inches) |
a |
| d |
B |
r1s |
C1 |
d1 |
d2 |
d3
UNF-2B |
h1 |
L3 |
L4 |
L5 |
d4 |
d5 |
S |
| 1/2" |
5/8" |
0.5mm |
1/2" |
17.73mm |
1-5/16" |
1/2-20 |
2-1/8" |
1-3/16" |
2-25/32" |
1/4" |
3/4" |
7/8" |
3/4" |
9 |
|
