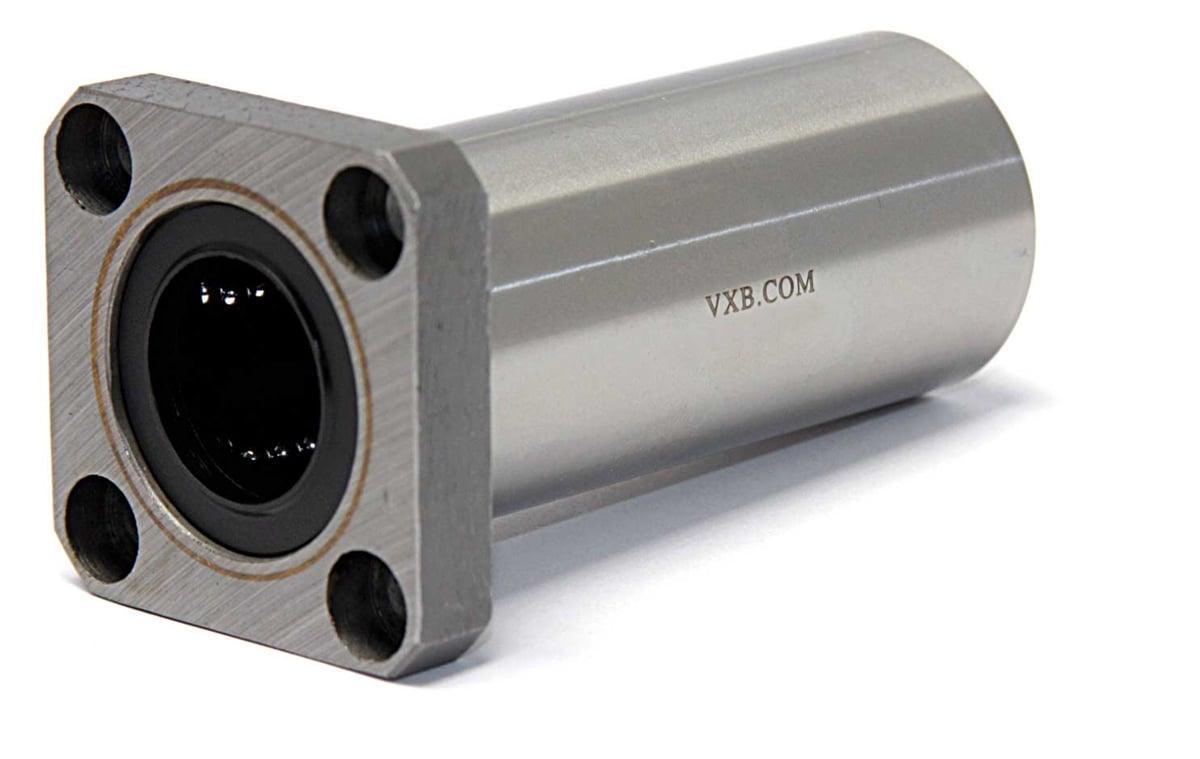

LMEK12LUU 12mm Square Flanged Bushing Linear Motion
LMEK12LUU 12mm Square Flanged Bushing Linear Motion
Regular price
$19.99 USD
Regular price
Sale price
$19.99 USD
Unit price
/
per
Couldn't load pickup availability
UPC: 00193019294963
| LMEK12LUU Square Flanged Linear Motion Long Ball Bushing 12mm |
LMEK12LUU Square Flanged Linear Motion Long Ball Bushing. Inner diameter is 12mm, outer diameter is 22mm, and length is 61mm.
|

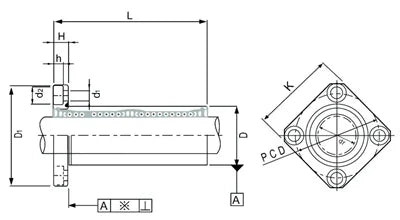

| tr(mm) | Tolerance | D(mm) | Tolerance | L ±0.3(mm) | D1(mm) | H(mm) | PCD(mm) | K(mm) | Eccentricity (max)(μm) | Radial Clearance (max)μm |
| 12 | +9 / -1 | 22 | 0-16 | 61 | 42 | 6 | 32 | 32 | 15 | -4 |
