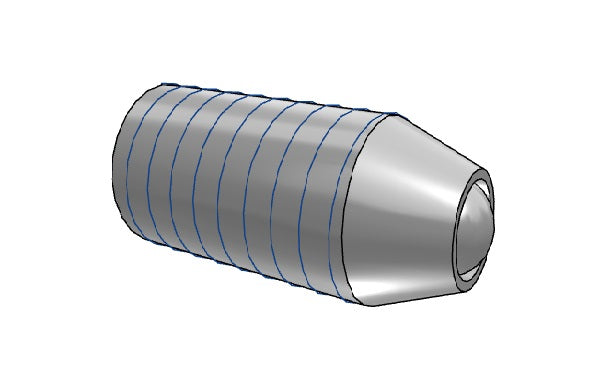

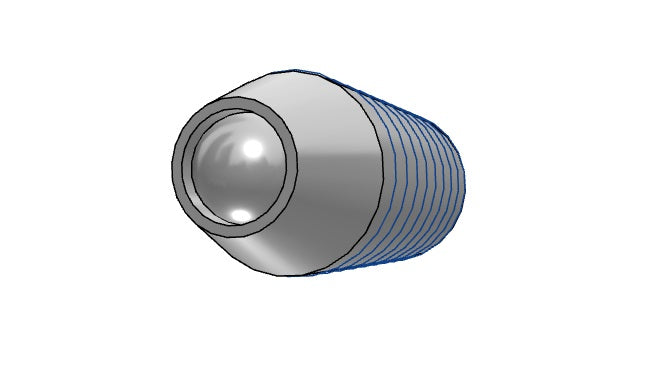

M5 12mm Long Stainless Steel Miniature Spinning Ball Plunger Super heavy load Japan
M5 12mm Long Stainless Steel Miniature Spinning Ball Plunger Super heavy load Japan
Regular price
$14.96 USD
Regular price
Sale price
$14.96 USD
Unit price
per
Couldn't load pickup availability
|
M5 12mm Long Stainless Steel Miniature Spinning Ball Plunger Japan |

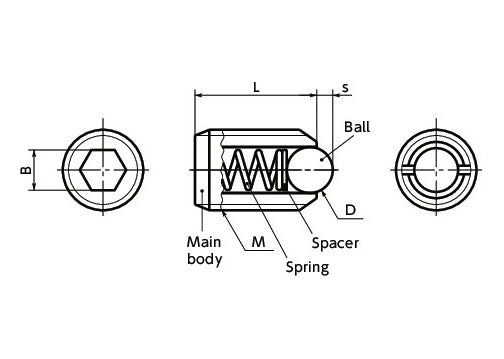

| M (Coarse) Nominal of Thread |
Pitch | s | L | D | B | Load(N) min./max. |
Mass (g) |
| M5 | 0.8 | 0.8 | 12 |
3 |
2.5 | 4.9/20 | 1 |
Material/Finish
| Main body | Equivalent to SUS304 |
| Ball | SUS440C (hardness: 55-60 HRC) |
| Spacer | SUS304 |
| Spring | SUS631J1 |
Characteristics
- There is a spacer between the ball and spring. The ball rotates.
- Made of all stainless steel. It is highly corrosion-resistant and heat-resistant.
- We also produce products of special specifications, e.g. dimensions, load and materials.
- Load type Super heavy load

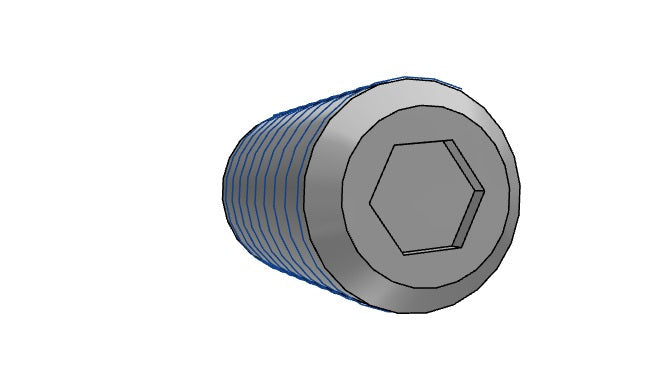

- Hexagon socket part is colored for identification. Blue
