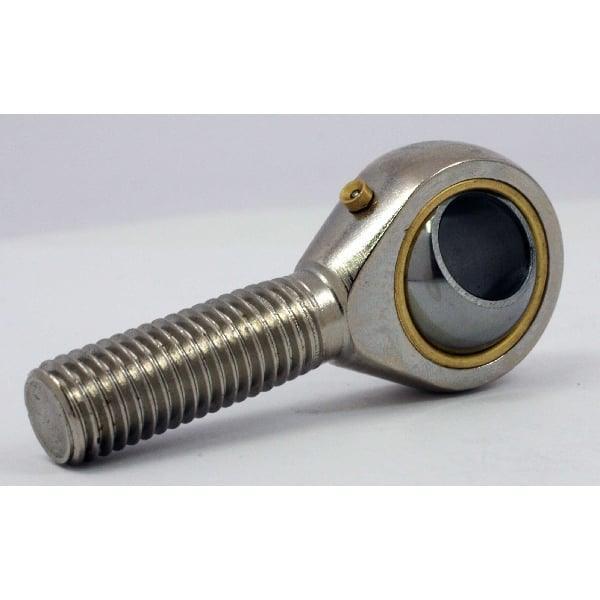

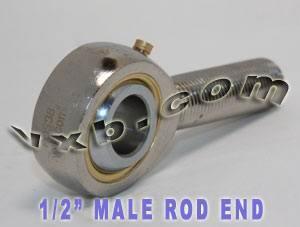

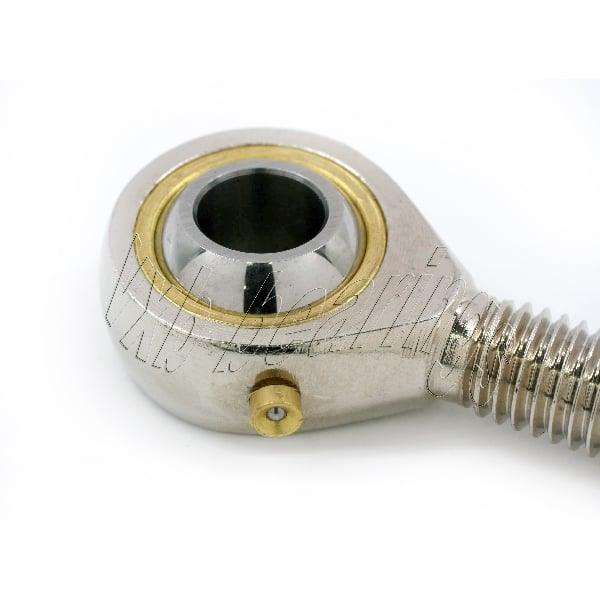

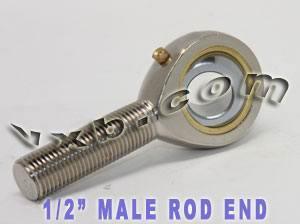

Male Rod End Heim Joint POSB8, Works with 1/2" Inch Shafts, they are marked POSB8, the inner diameter is 1/2" Inch, thread size (d3): 1/2".
- Item: POSB8 Bearing
- Type: Male Rod Ends
- Thread Size: 1/2" UNF
- Ball diameter: 1/2"
- Quantity: One Bearing
- Dynamic Load Rating: 15 KN
- Static Load Rating: 19 KN
|

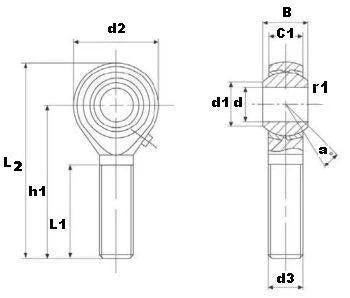

Dimensions (Inches)
|
a |
| d |
B |
R1s |
C1 |
d1 |
d2 |
d3
UNF |
h1 |
L1 |
L2 |
| 1/2" |
5/8" |
0.5mm |
1/2" |
17.73mm |
1-5/16" |
1/2-20 |
2-7/16" |
1-1/2" |
3-3/32" |
9 |
|
