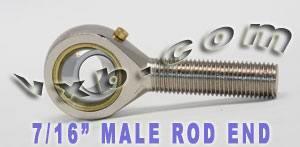

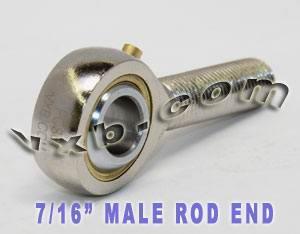

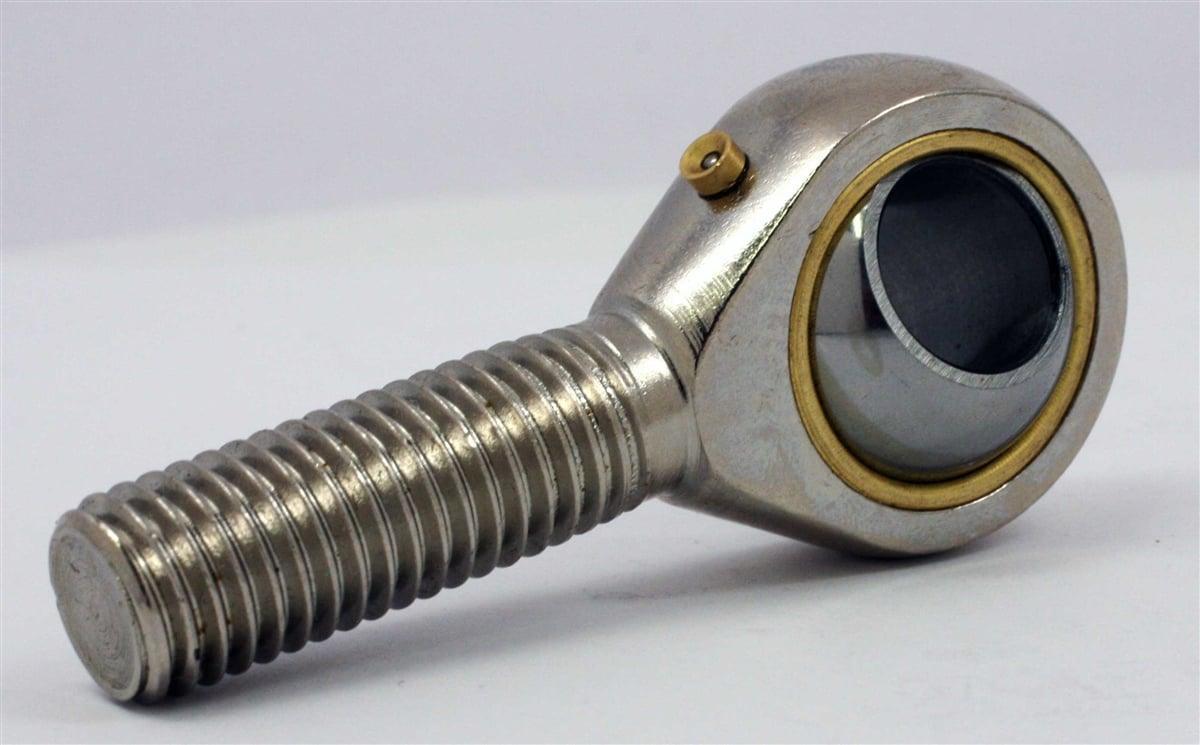

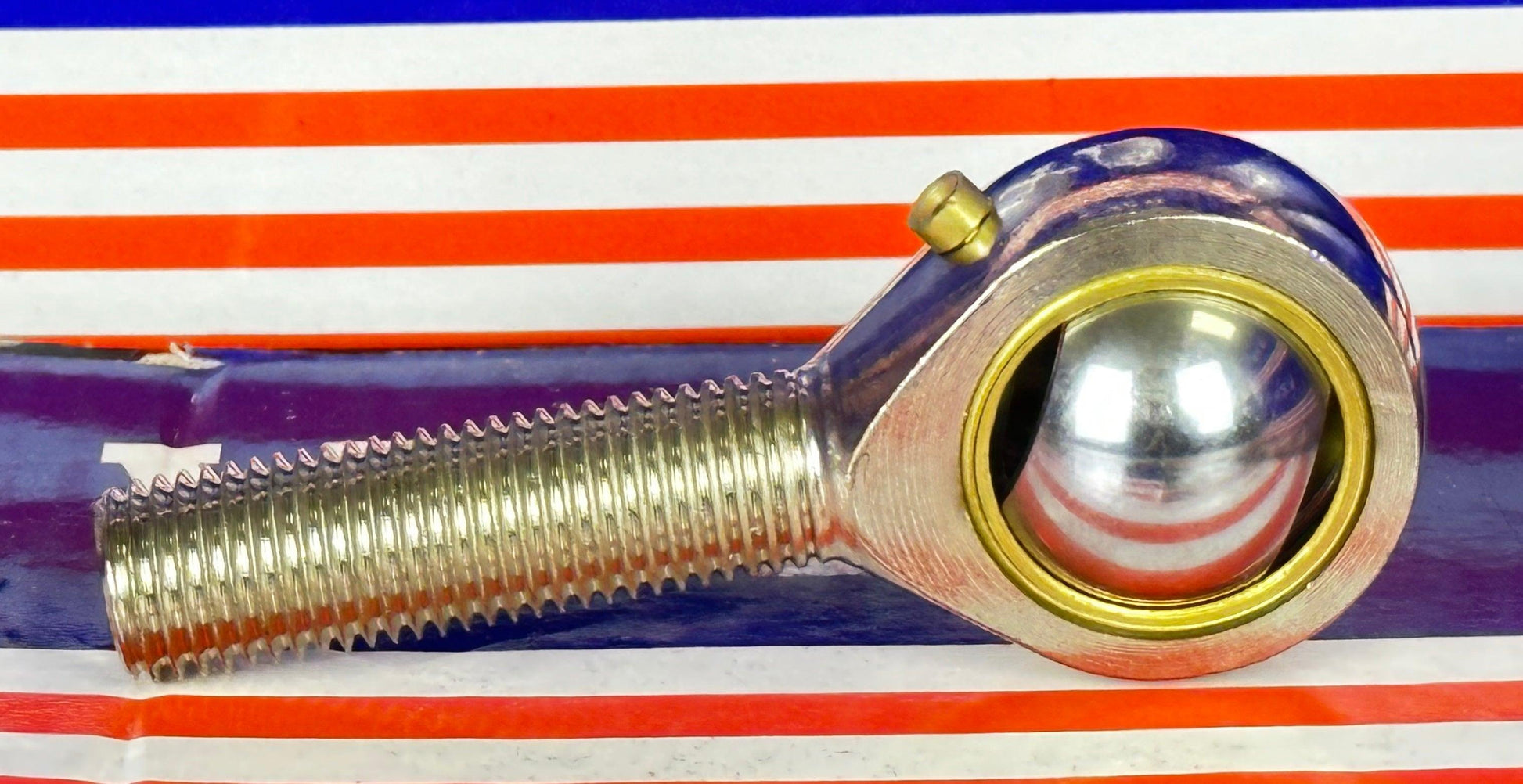

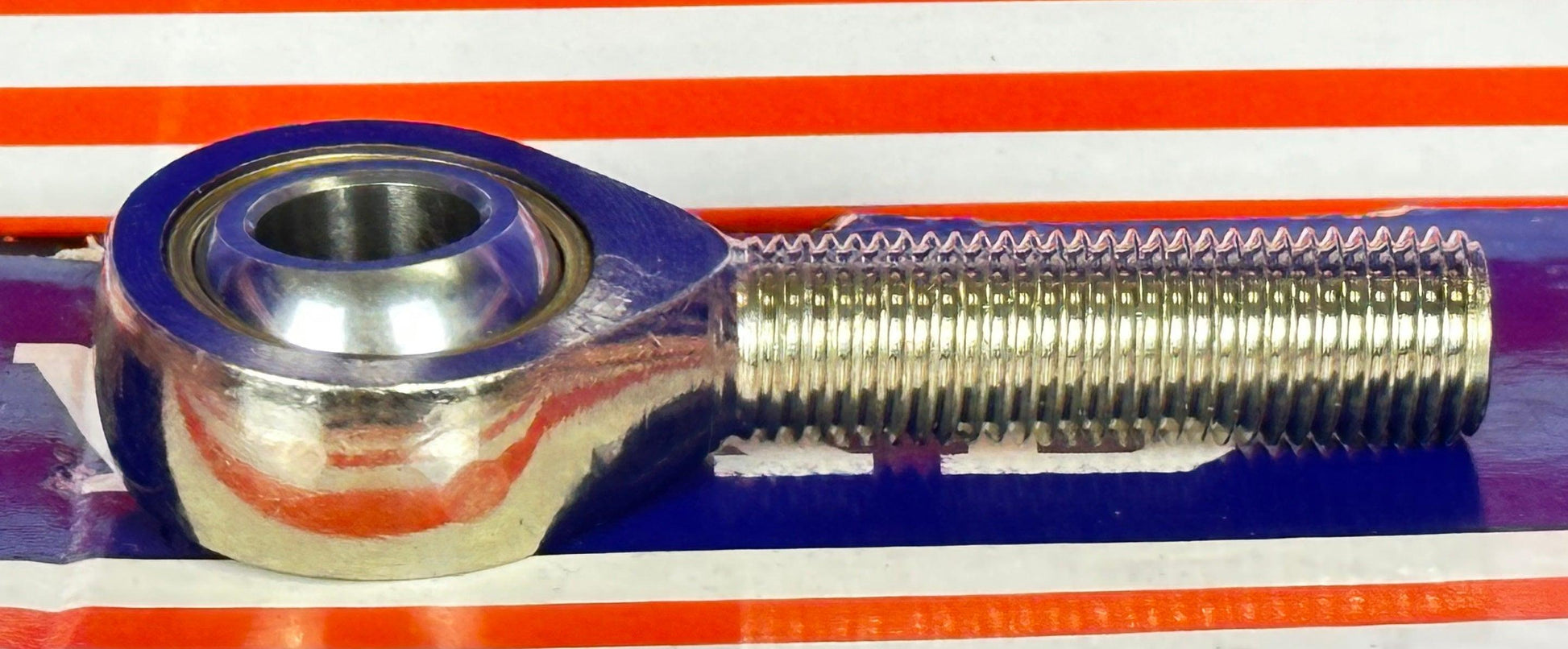

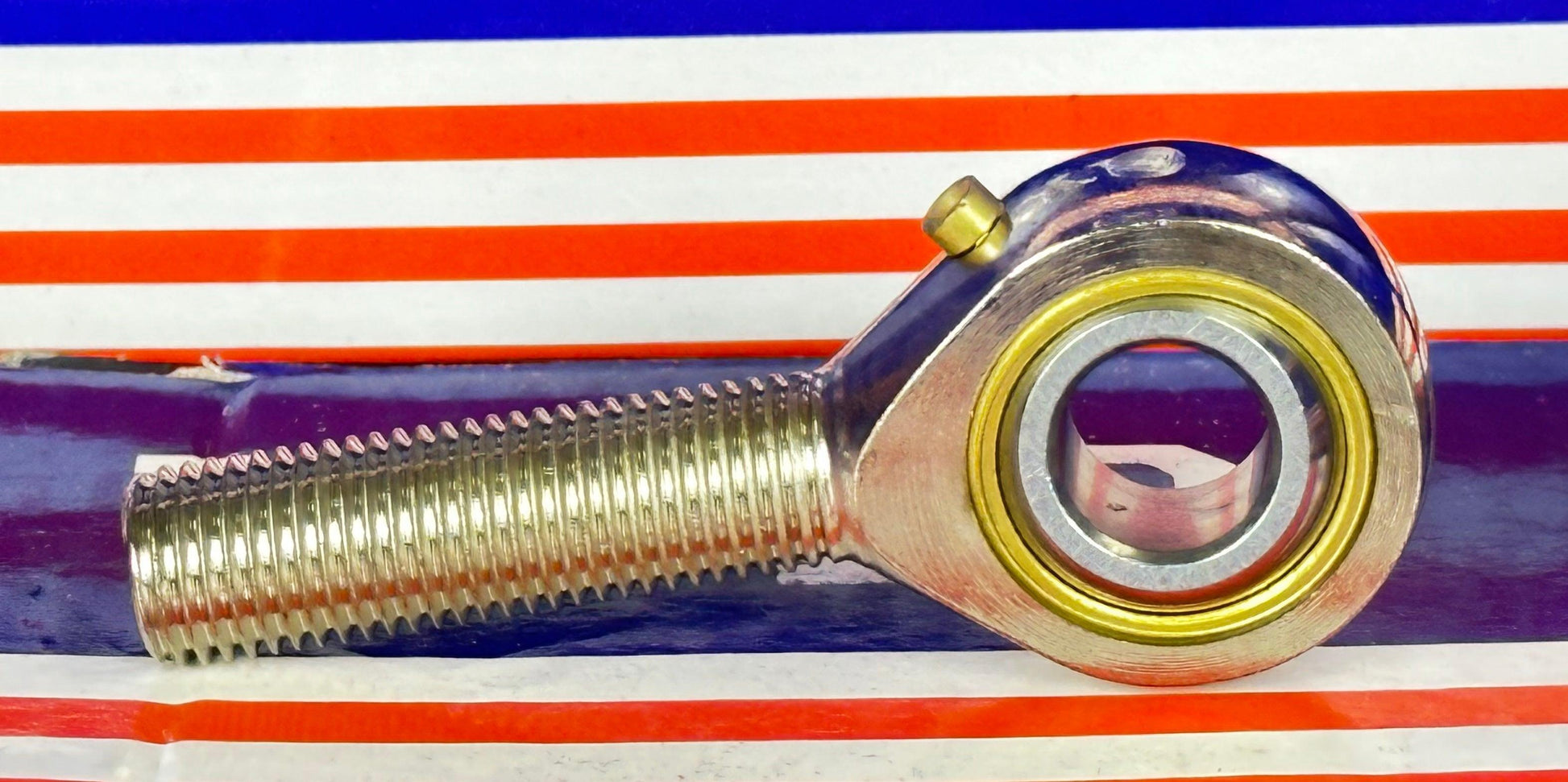

Male Rod End POSB7, Works with 7/16" Inch Shafts, they are marked POSB7, the inner diameter is 7/16" Inch, thread size (d3): 7/16".
- Item: POSB7 Bearing
- Type: Male Rod Ends
- Thread Size: 7/16" UNF
- Ball diameter: 13/16"
- Quantity: One Bearing
- Dynamic Load Rating: 11 KN
- Static Load Rating: 13 KN
|

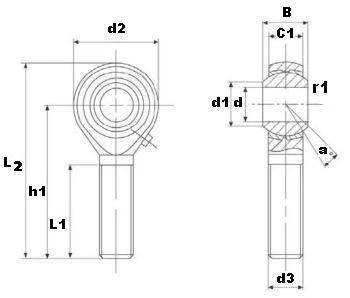

Dimensions (Inches)
|
a |
| d |
B |
R1s |
C1 |
d1 |
d2 |
d3
UNF |
h1 |
L1 |
L2 |
| 7/16" |
9/16" |
0.5mm |
7/16" |
14.88mm |
1-1/8" |
7/16-20 |
2-1/8" |
1-3/8" |
2-11/16" |
11 |
|
