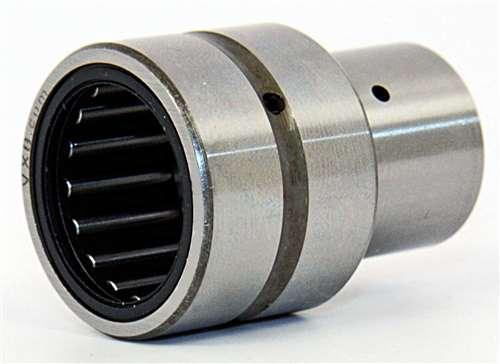

NA4901UU Needle Roller Bearing 12x24x14

NA4901UU Needle Roller Bearing 12x24x14

$19.99 USD
$19.99 USD
Sale Sold out
NA4901UU Needle Roller Bearing
One Bearing



 Machined type needle roller bearing NA4901UU, the NA4901UU inner diameter is 12mm, the outer diameter is 24mm, width of the cone (inner ring) is 14mm and the outer ring width is 13mm.
  • Item: NA4901UU Bearing
  • Type: Needle Roller Bearing
  • Closures: Rubber Sealed (both sides)
  • Dimensions: 12mm x 24mm x 14mm /Metric
  • ID (inner diameter)/Bore: 12mm
  • OD (outer diameter): 24mm
  • inner ring: 14mm
  • outer ring: 13mm
  • Size: 12mm x 24mm x 14mm
  • Quantity: One Bearing (inner cone is included)
  • Dynamic Load Rating: 860 KGF
  • Static Load Rating: 980 KGF


Dimensions
d dr D B B1
12mm 16mm 24mm 13mm 14mm
