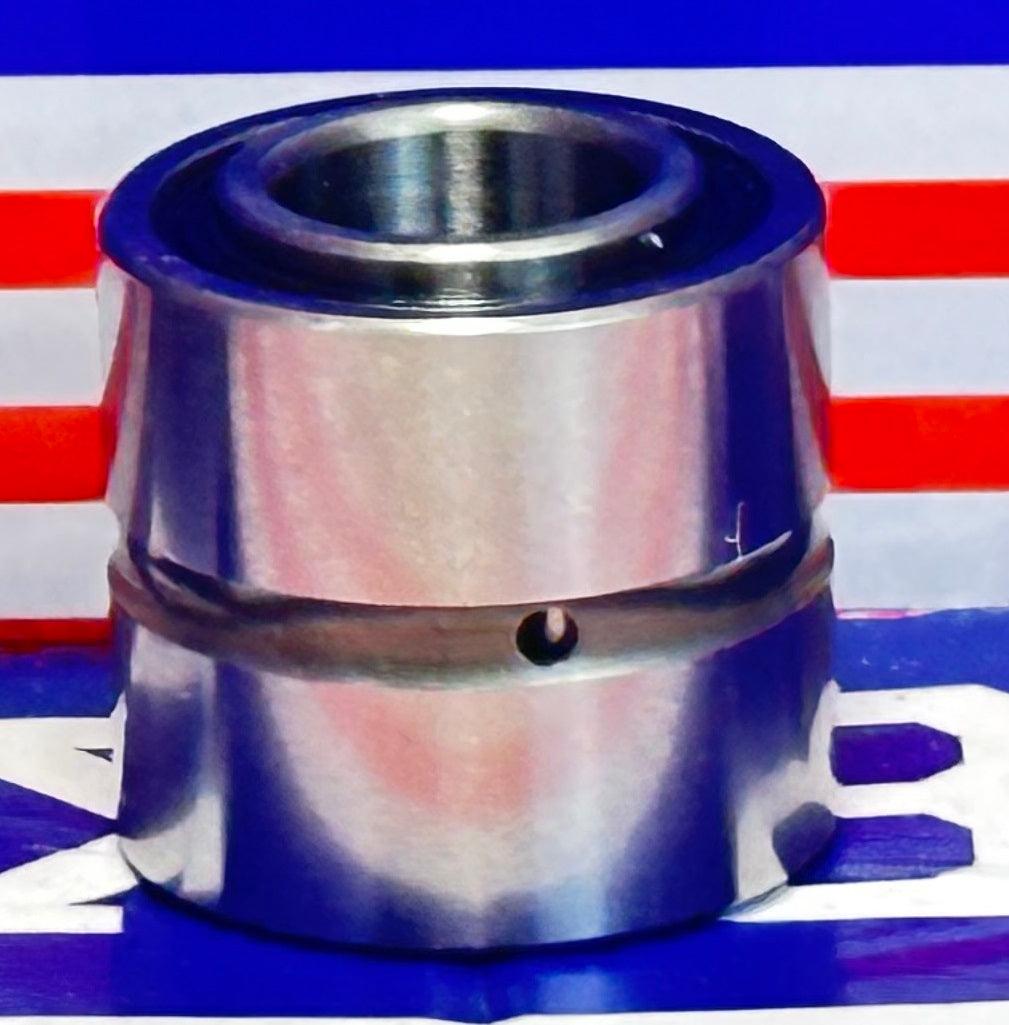

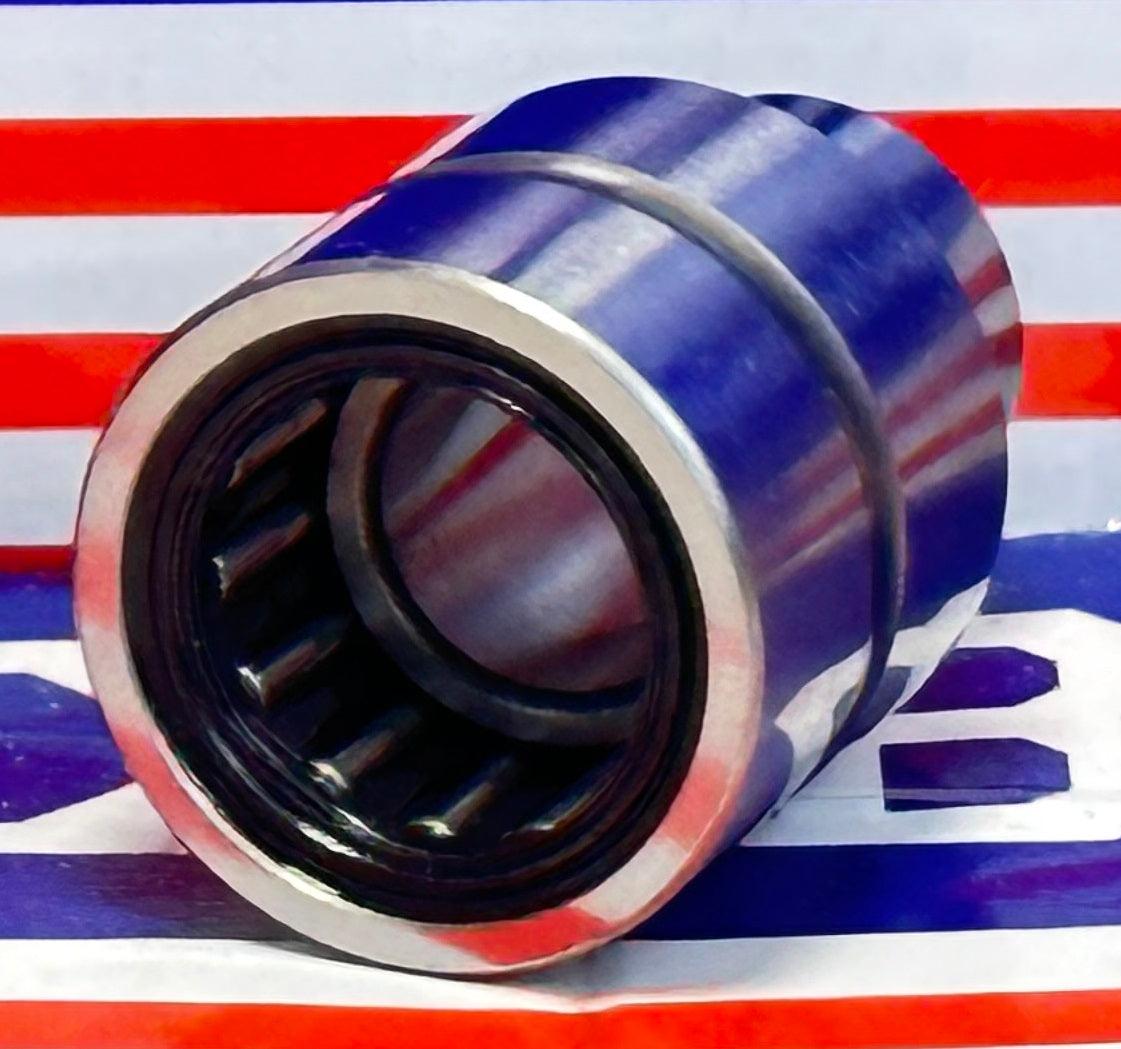

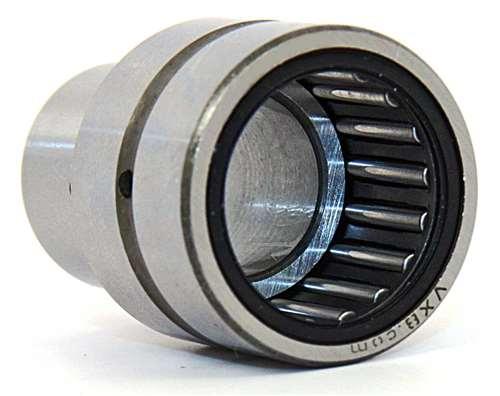

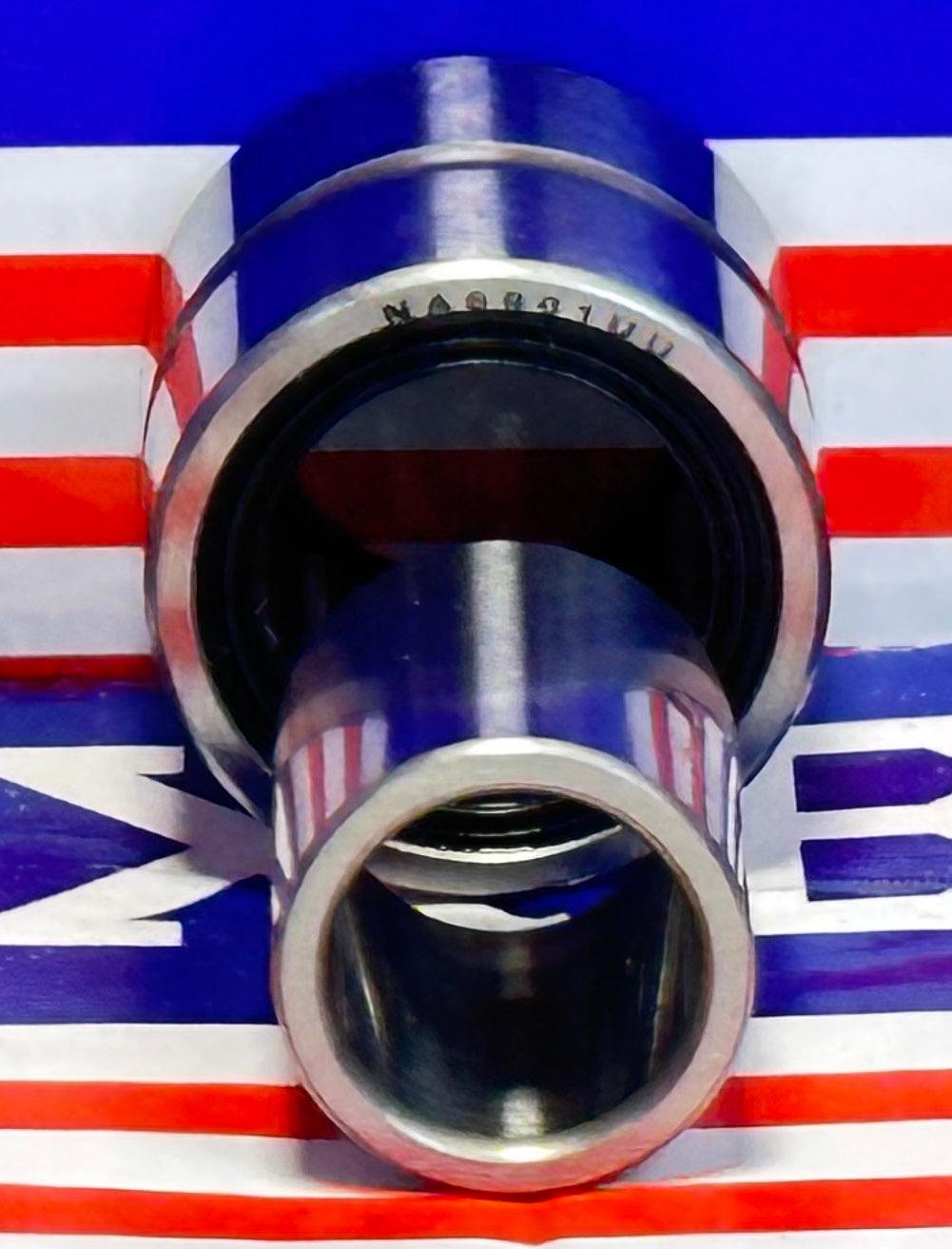

Machined needle roller bearing NA6901UU , the inner diameter is 12mm, the outer diameter is 24mm, width of the cone (inner ring) is 23mm, and the outer ring width is 22mm.
- Item: NA6901UU Bearing
- Type: Needle Roller Bearing
- Closures: Rubber Sealed
- Dimensions: 12mm x 24mm x 23mm /Metric
- Bearing Inner Diameter: 12mm
- Bearing Outer Diameter: 24mm
- Bearing Width: 23mm
- Size: 12 x 24 x 23 mm
- Quantity: One Bearing
- Basic Dynamic Load Rating: 1,590 KGF
- Basic Static Load Rating: 2,080 KGF
| Dimensions (mm) |
|---|
| d |
dr |
D |
B |
B1 |
| 12 |
16 |
24 |
22 |
23 |
|
