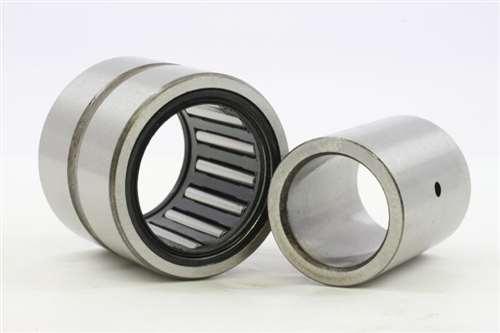

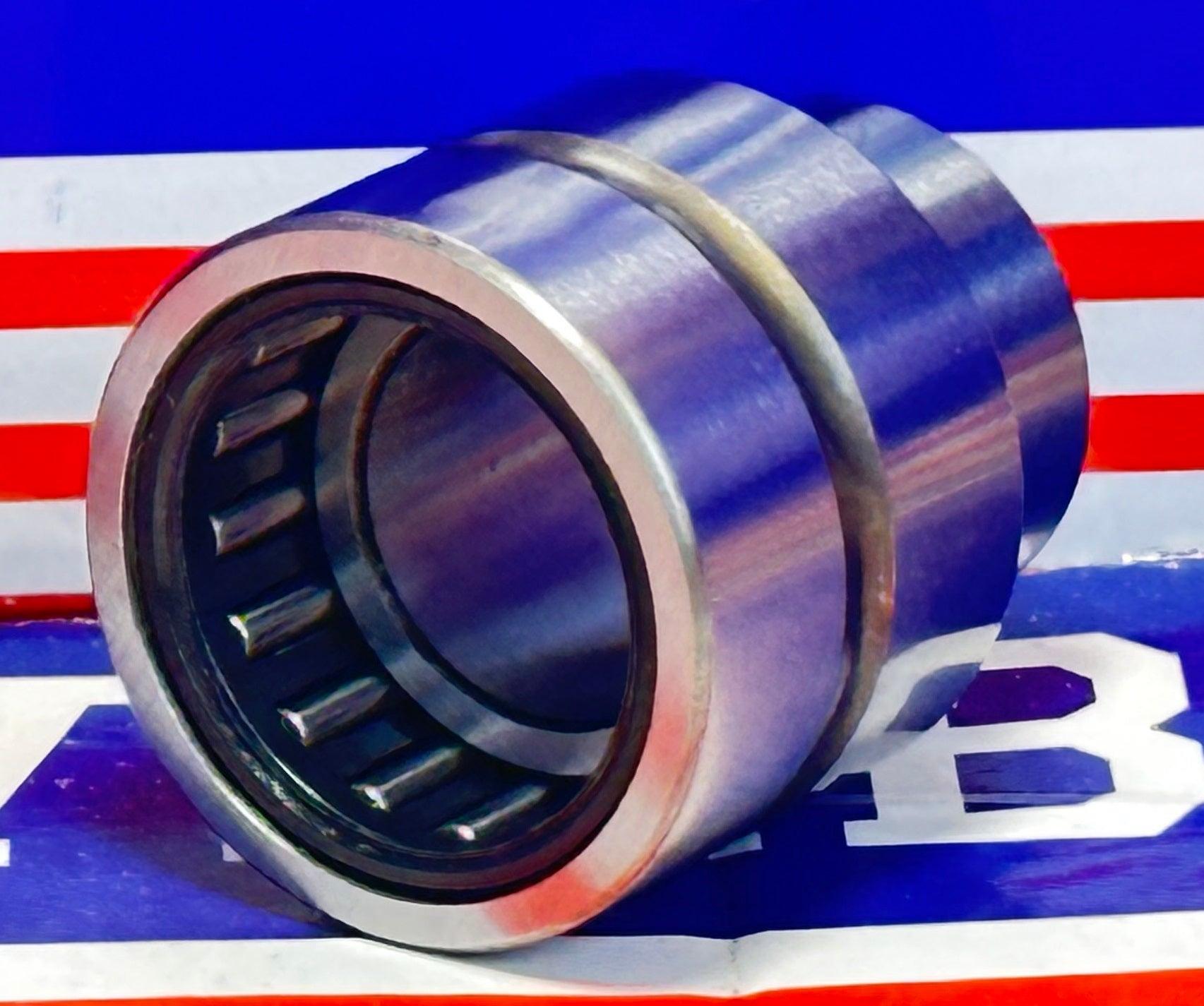

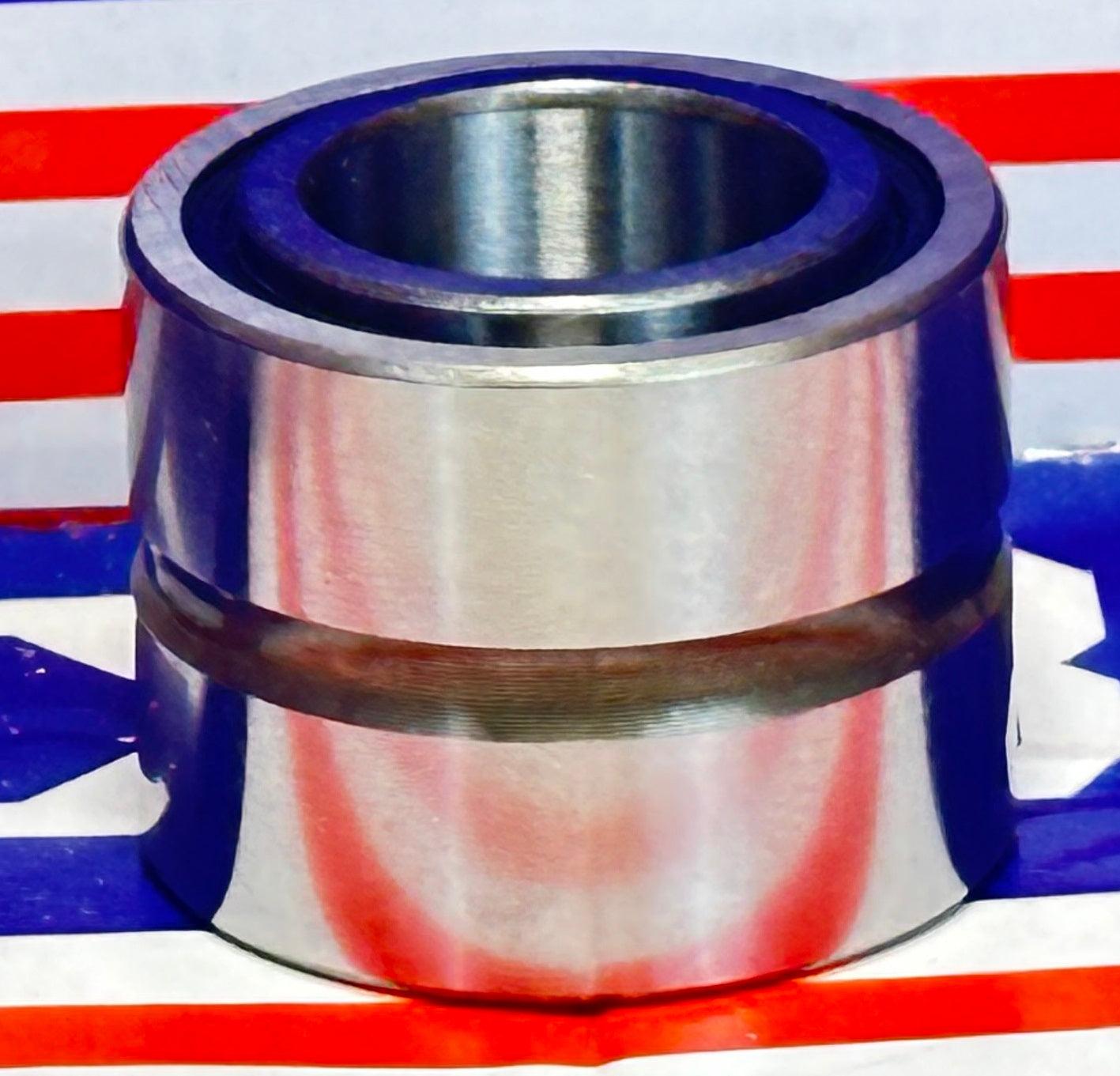

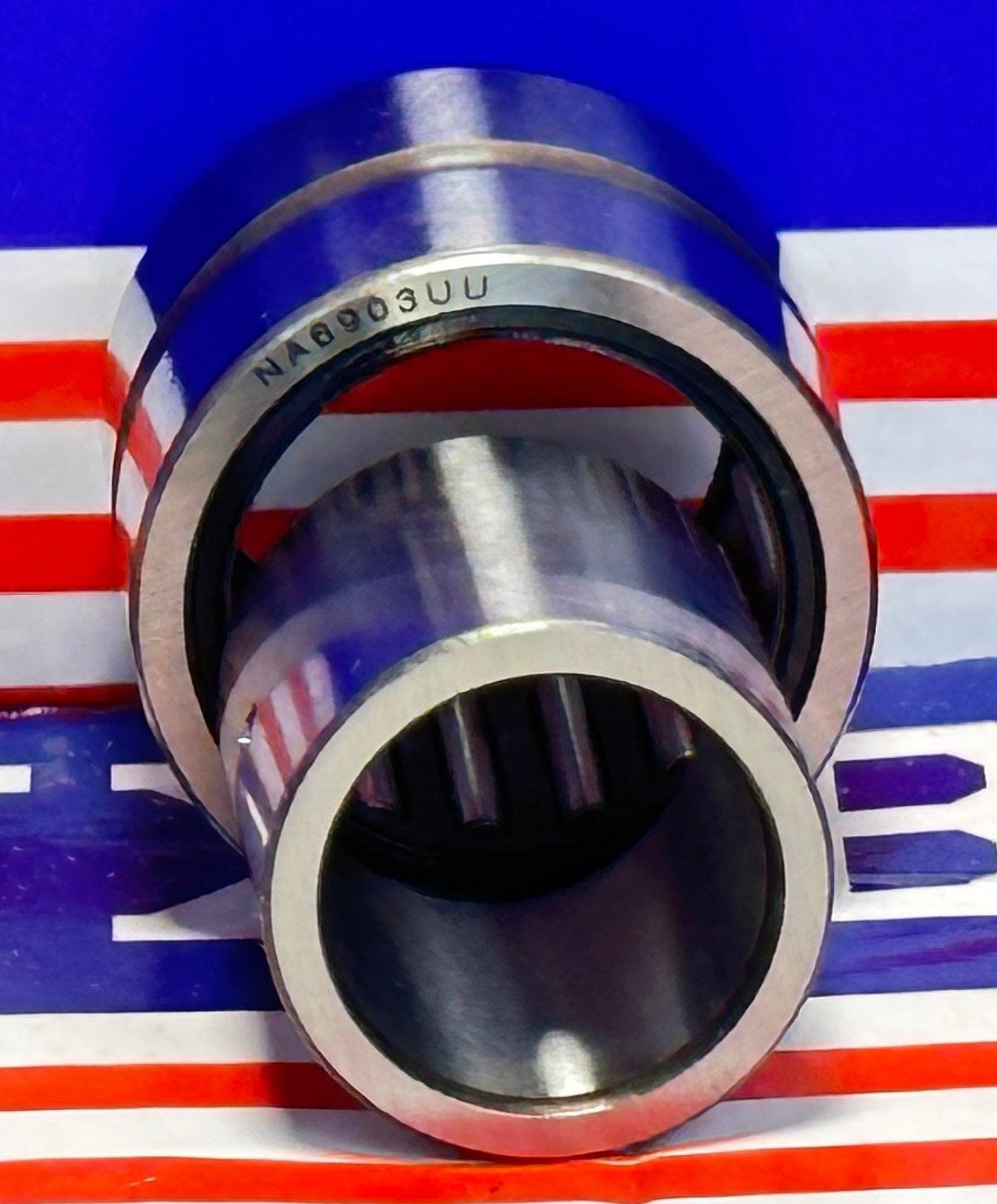

Machined needle roller bearing NA6903UU , the inner diameter is 17mm, the outer diameter is 30mm, width of the cone (inner ring) is 24mm, and the outer ring width is 23mm.
- Item: NA6903UU Bearing
- Type: Needle Roller Bearing
- Closures: Rubber Sealed (both sides)
- Dimensions: 17mm x 30mm x 24mm /Metric
- ID (inner diameter)/Bore: 17mm
- OD (outer diameter): 30mm
- inner ring: 24mm
- outer ring: 23mm
- Size: 17mm x 30mm x 24mm
- Quantity: One Bearing
- Basic Dynamic Load Rating: 2,020 KGF
- Basic Static Load Rating: 3,120 KGF
| Dimensions |
|---|
| d |
dr |
D |
B |
B1 |
| 17mm |
22mm |
30mm |
23mm |
24mm |
|
